MTU 16V2000 M91 full rebuild; in vessel

Discussion in 'Engines' started by Pascal, Oct 31, 2022.

You need to be registered and signed in to view this content.
  1. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

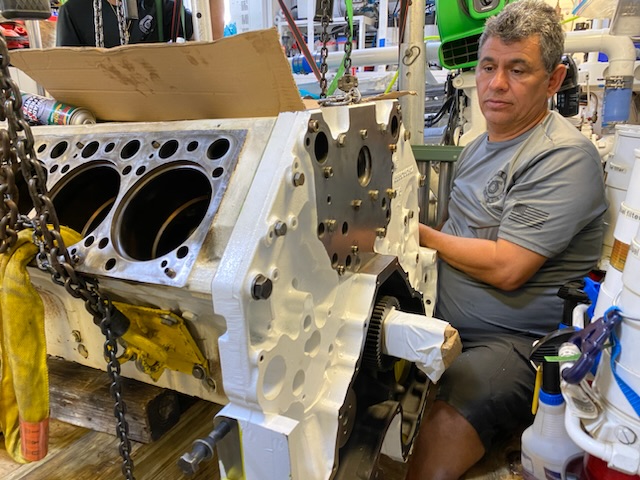

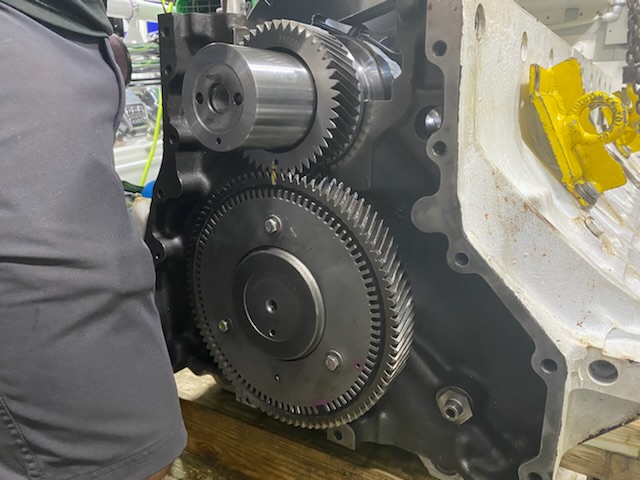

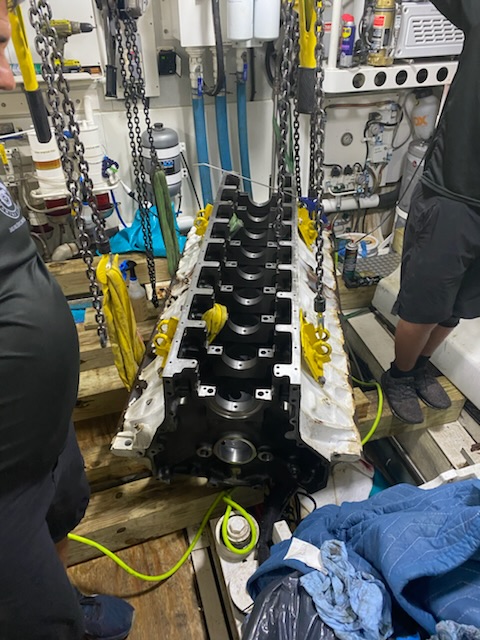

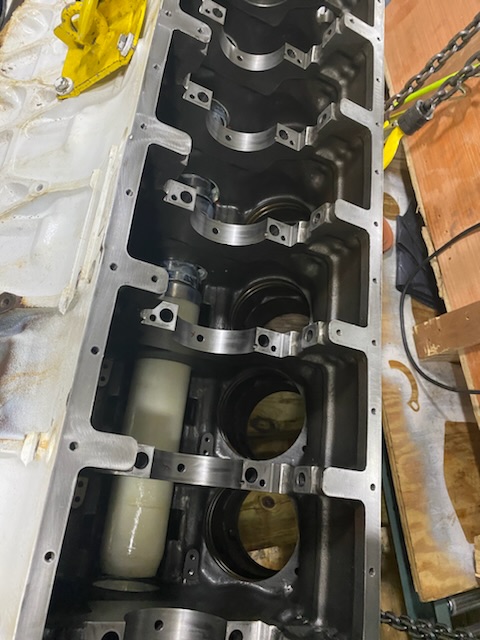

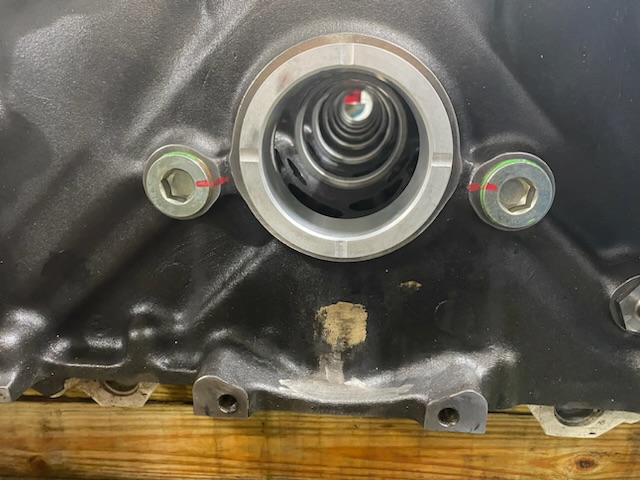

    As mentioned in the Yard thread, we're rebuilding the stbd 16V2000 M91 on the 116 Lazzara I run. I'll post pictures in this thread over the next 3 weeks or so. Starting with the bare block, camshaft bearing install and camshaft install...

    Attached Files:

    Capt Crabby and Capt Ralph like this.
  2. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

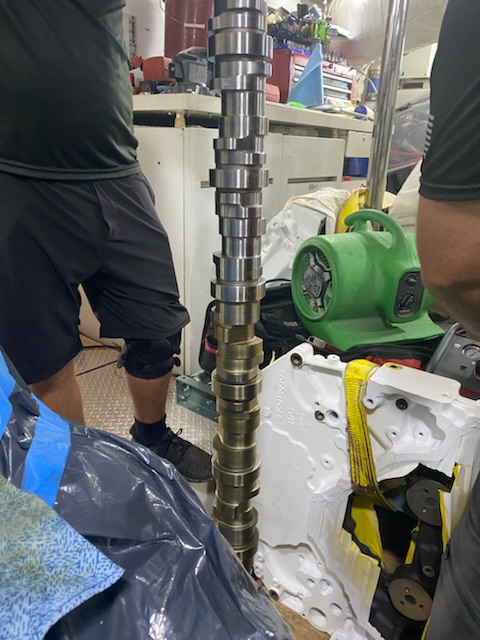

    Note the tool to guide the camshaft...

    Attached Files:

  3. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

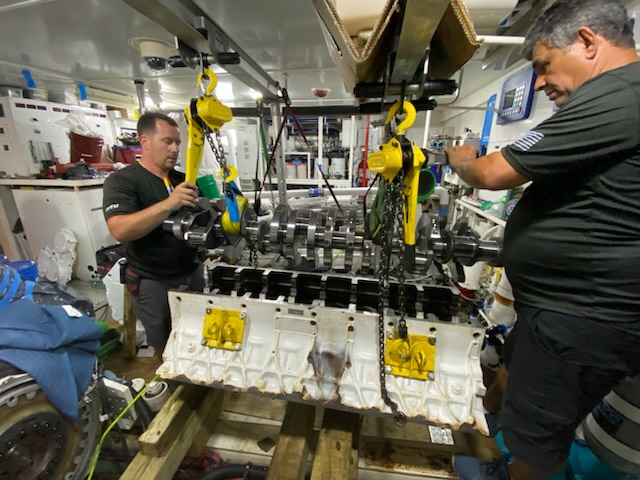

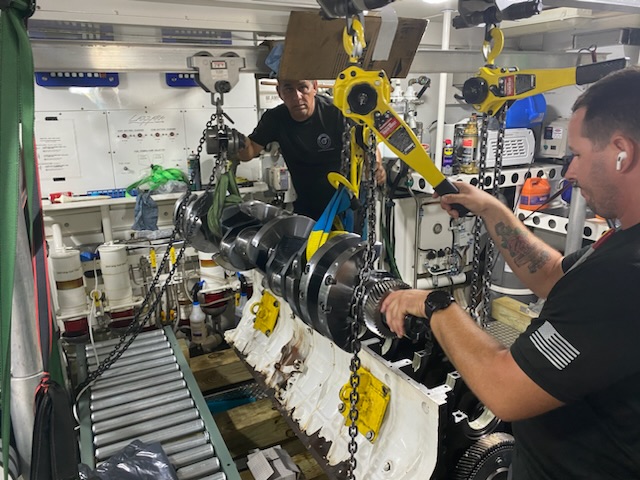

    New crankshaft getting in. Made in India, inspected in Germany, shipped to Michigan and then to Miami.

    Attached Files:

  4. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Did you have a failure? If so what. Or is it due to a lot of hours?
  5. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL
    close to 4000 hours, no maintenance records. Unknown hours on oil at survey. But the price was right. We did the port engine last year.
  6. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL
    Engine building continues

    Attached Files:

    Capt Crabby likes this.
  7. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    I love this thread. Subscribed!
  8. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL
    Thanks Carl. Going to post pictures everyday. They just got the circulation pump in, tomorrow raw water pump, flywheel then liners and pistons. They re hoping to have the engine back in place by this week end and ready to align.
  9. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    I luv it when the techs have all the cool tools.
    Luv those mini presses.
  10. Slimshady

    Slimshady Senior Member

    Joined:
    Aug 17, 2018
    Messages:
    303
    Location:
    Lighthouse pt
    Boatyard pictures and now engine rebuild pictures! Pascal gets my vote for MVC. " Most valuable captain "
  11. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Uh??
    Align the engine/clutch to the shaft flange?

    Sounds like a great idea when there is no hoses, exhaust and much other junk in the way.
    But,,, (yea,, I'm a but guy) the weight and compression on the mounts will not be correct with a light block.
    In my little thoughts; Build up as much in engine weight as you can before aligning the shaft.
  12. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL
    Most of the engine weight will be on by the time they do the alignment…
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Who is doing the work?
  14. Danvilletim

    Danvilletim Senior Member

    Joined:
    Oct 30, 2011
    Messages:
    794
    Location:
    isleton, ca
    Great pics!
    Capt Crabby likes this.
  15. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL
    Philip de Socaraz. Torque diesel.
  16. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

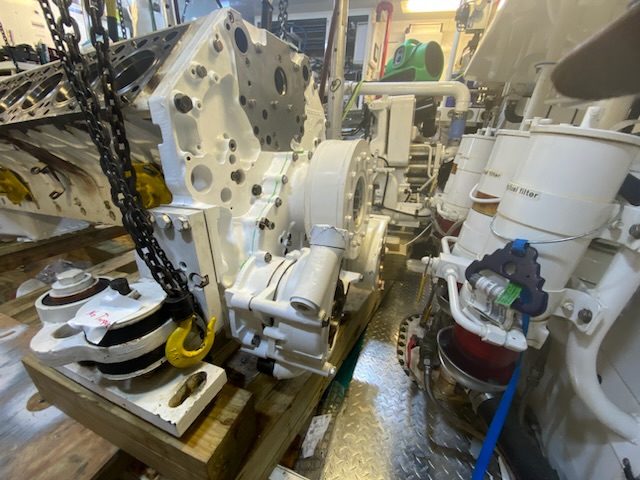

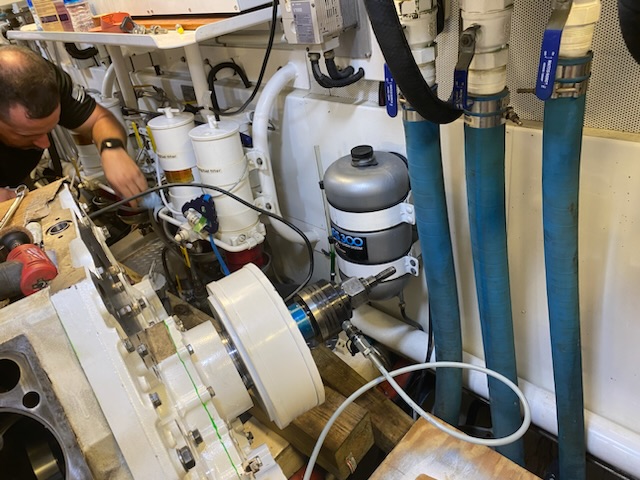

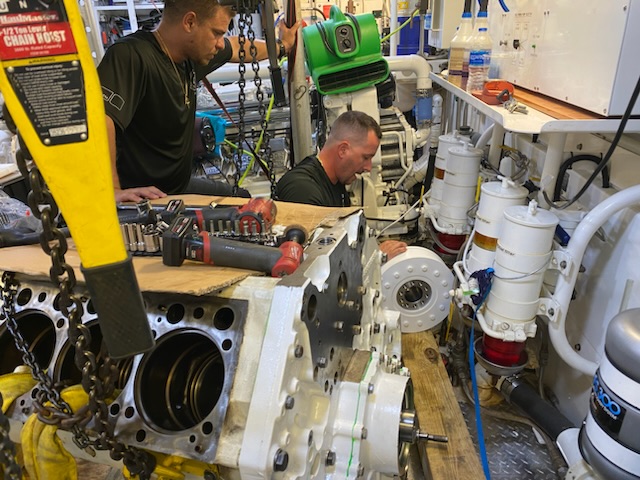

    Raw water and circulation pumps are on along with engine mounts. Cylinder liners installed. Pistons going in tomorrow

    Attached Files:

    Capt Crabby likes this.
  17. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,649
    Location:
    Satsuma, FL
    Is that one of those non-rebuildable water pumps?
    Where is your old pump?
    Worth it's weight in gold if not leaking.

    Oh, your purchasing extended warranties??
    Capt Crabby likes this.
  18. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

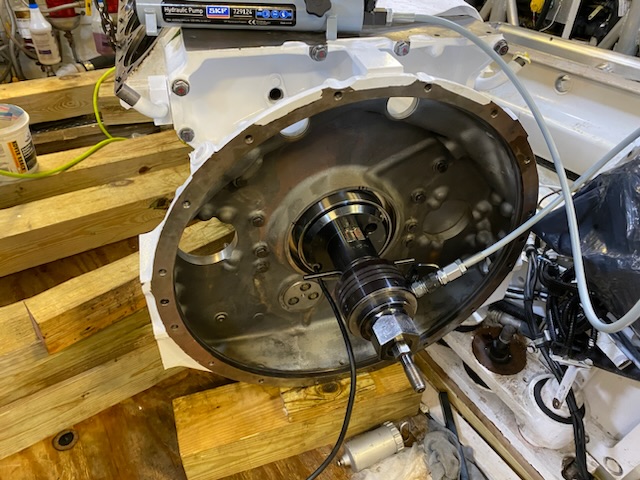

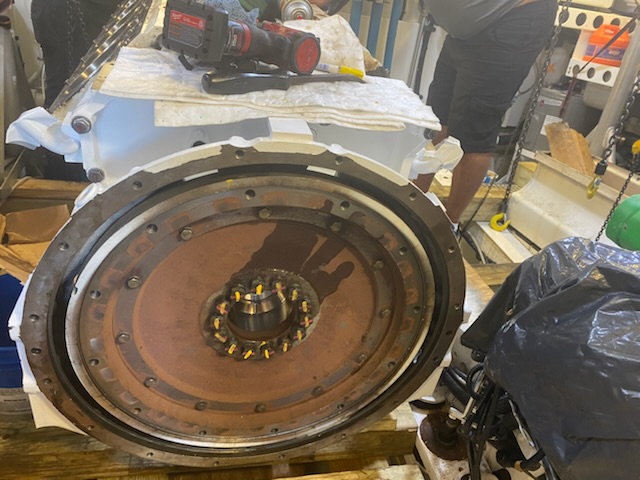

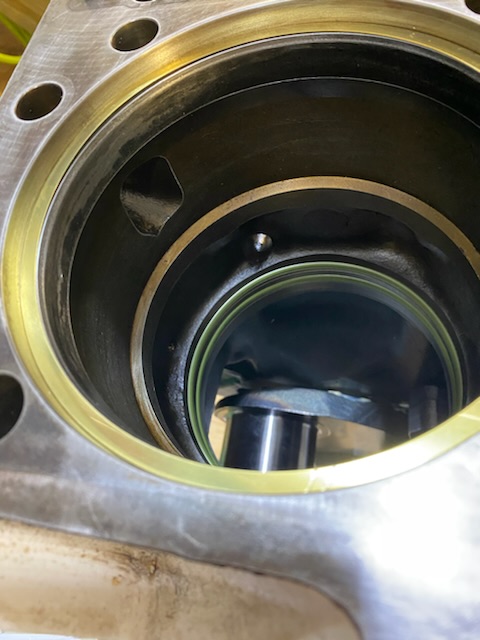

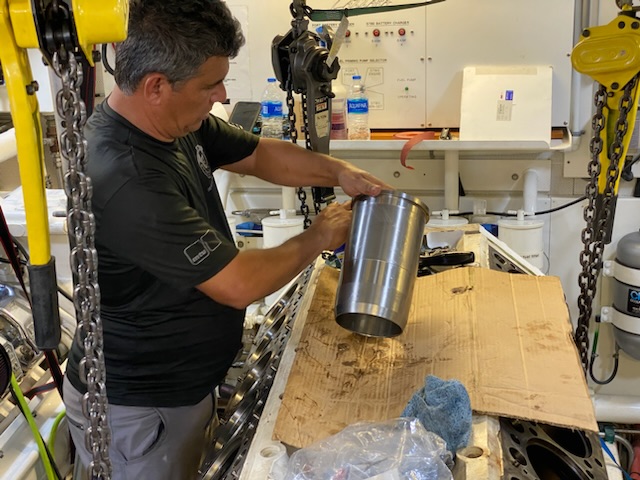

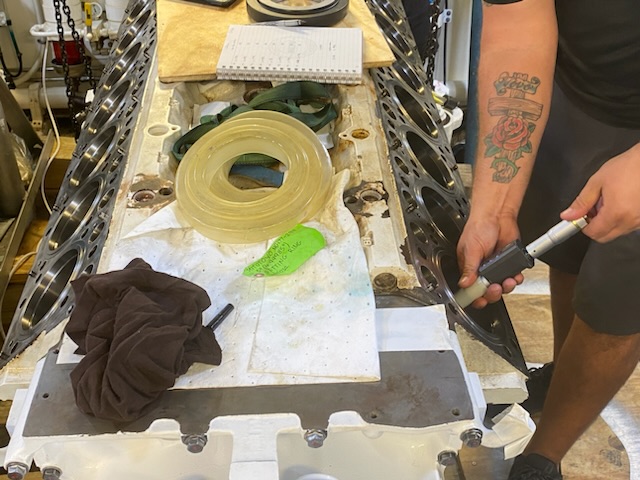

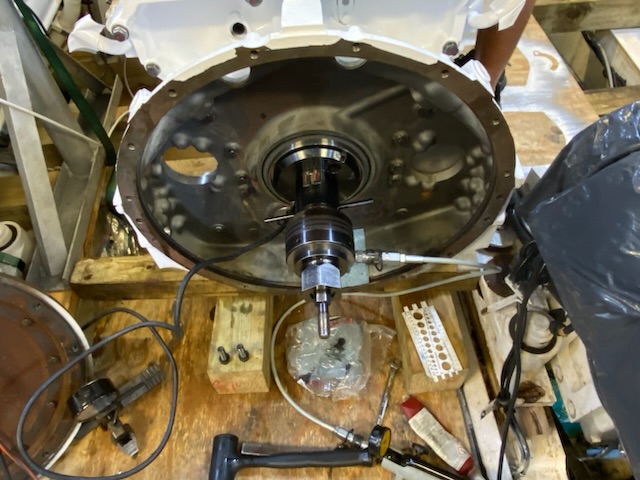

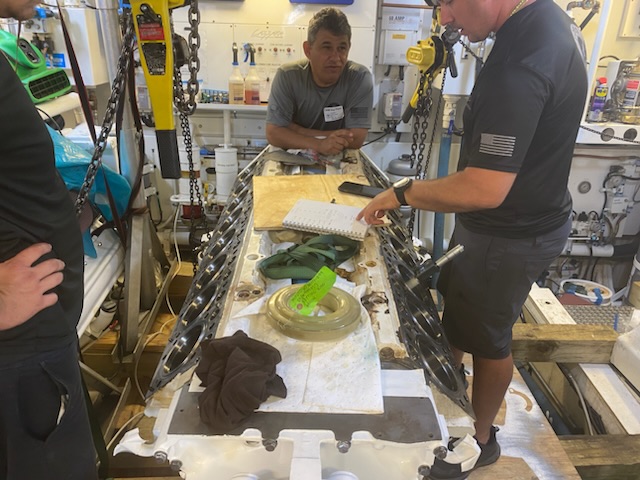

    Liners being checked before installing pistons. Rear hub being pressed in and flywheel on

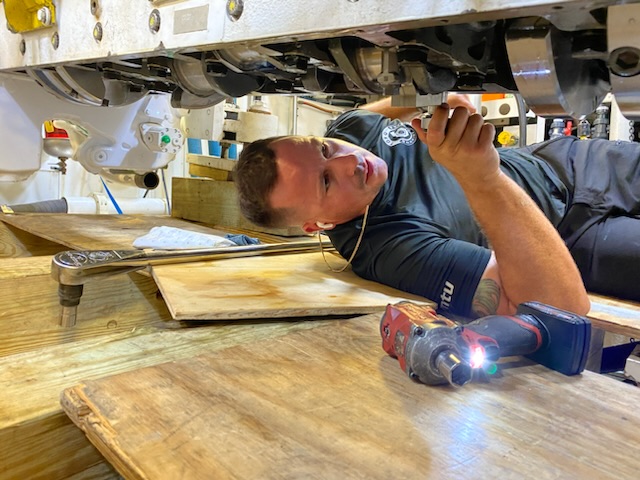

    pistons going in

    Attached Files:

    Capt Crabby likes this.
  19. Pascal

    Pascal Senior Member

    Joined:
    Feb 29, 2008
    Messages:
    8,120
    Location:
    Miami, FL

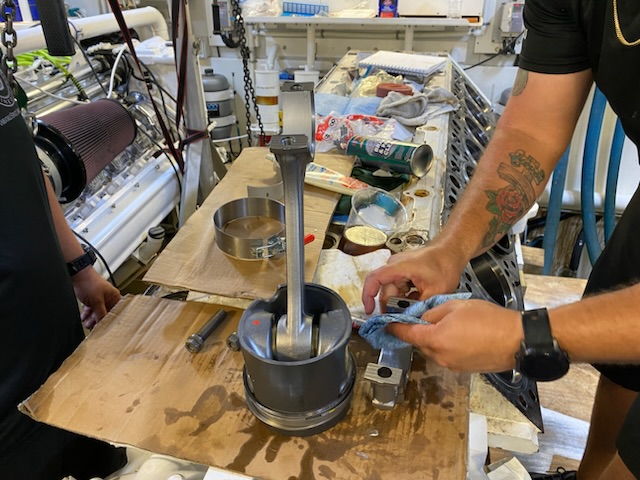

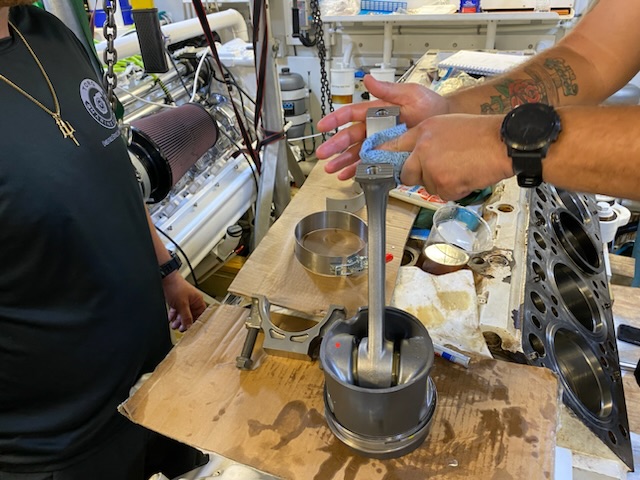

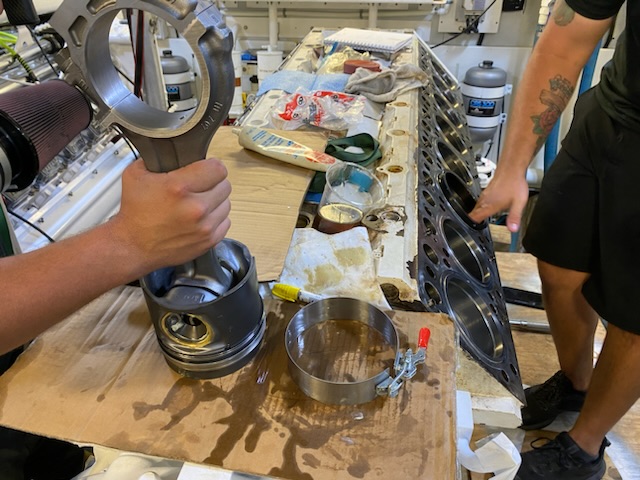

    Pistons, cont.

    Attached Files:

    Capt Crabby likes this.
  20. Slimshady

    Slimshady Senior Member

    Joined:
    Aug 17, 2018
    Messages:
    303
    Location:
    Lighthouse pt
    Connecting rods are big! Thx for the addition photos.
