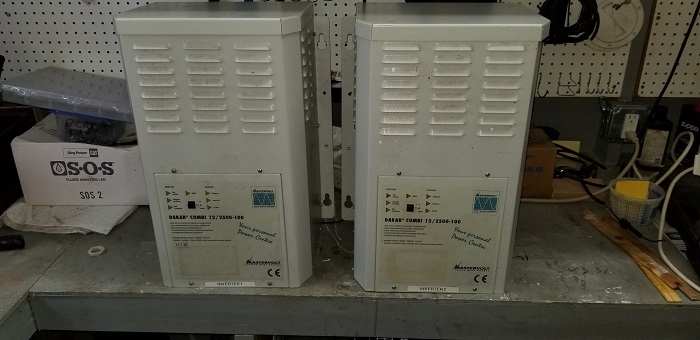

MasterVolt Dakar SINE WAVE COMBI 12/2500-100 117Vac - SOLD!

MasterVolt Dakar SINE WAVE COMBI
12/2500-100 117Vac

INVERTER/CHARGER COMBINATION
For boat, camper or office/home UPS.
With COMBI SYSTEM CONTROL PANEL & SHUNT

Price is $600 each unit. I have two.
Offers on the two are welcome.

I can demo each inverter for you in 32189.

There are NO Warranties.

Both units just tested perfect.
Both units have been in storage after they were removed from a large yacht. Trying to clean up my shop.
Each unit has its own control panel and new shunt.
The weight if each unit is 82 pounds.

TECHNICAL DATA

GENERAL
Description sinewave inverter/charger combination with automatic transfer
Models DAKAR COMBI 12/2500
Manufacturer Mastervolt, Amsterdam
Technology mixed HF/LF hybrid switching technique
Conformity CE
Environmental class IP 22
Enclosure DAKAR
Weight ± 37 kg (without box)
Colour RAL 7035
Storage temperature -25°C to 70°C
Humidity 95% non condensing
Altitude 5000 m , power derating !
Battery capacity > 400 Ah
Cooling three temperature controlled fans

CONNECTIONS
AC in Phoenix on connection board
AC out Phoenix on connection board
AC cable size 2.5 mm2 .. 6 mm2
Battery connections on connection board with Master© Connect
Battery cable size > 50 mm2
Remote connections telephone jack / Phoenix
Sense connections Phoenix
DC fuse external
AC fuse external

CONTROLS
Display led on cabinet charge status, inverter status, mains status
Remote panel COMBI System Control Panel
TRANSFER SYSTEM
Relay 2 pole switching
Rating 50A (117V)
Transfer speed 30 ms after synchronization
Separate generator input no
Power sharing 40A (117V)

Somehow I forgot to insert;
MasterVolt Dakar.

I just hate to throw good stuff away.

Don't let the money numbers throw anybody off.
Make an offer on both.

Just remember, a 75 pound transformer makes a difference on sine wave quality.
When testing, locked on solid 60 htz.

They have to go.
$250 each

Sold.
Thx
