Grey Water Tank

Discussion in 'Bertram Yacht' started by SplashFl, Dec 24, 2023.

  1. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    587
    Location:
    S. Florida _ Bertram 46

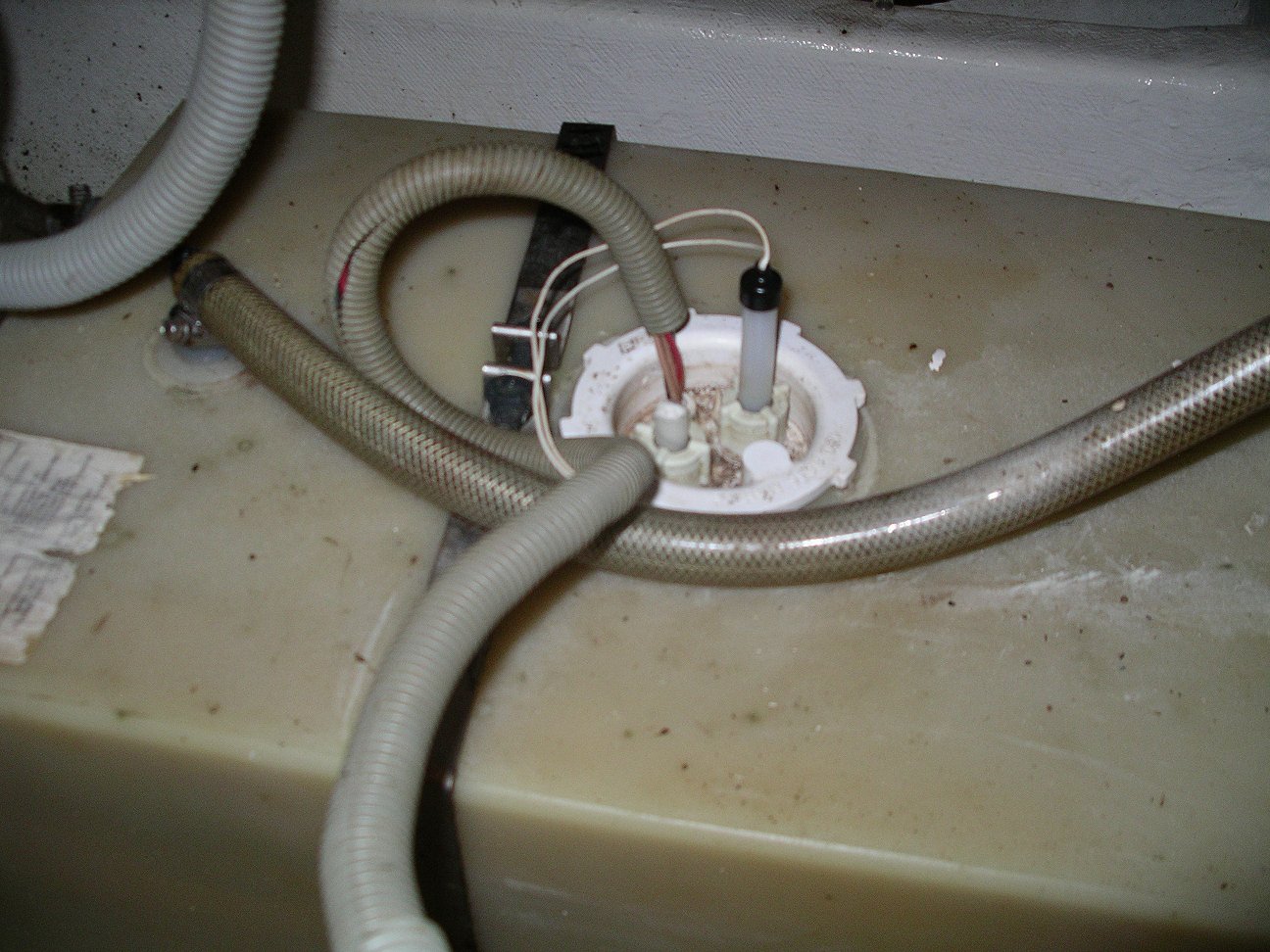

    Anyone know what the item and its two white wires are ?? Indicator LED for the tank remains lit despite tank pump working fine on auto & manual. Unscrewed & removed white cap and found an Ultra Switch under it and the switch works fine.
    Grey Water 1.jpg
  2. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    13,651
    Location:
    Satsuma, FL
    I sent a direct e-mail.
    That is not all original.
  3. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    587
    Location:
    S. Florida _ Bertram 46
    Thanks for the info Capt.
  4. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,802
    Location:
    Vero Beach
    The sensor in the photo is the device that signals the pump to turn on and then turn off. It's sold by Dometic and coordinates with an auto-on and off switch with a manual override.
  5. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    587
    Location:
    S. Florida _ Bertram 46

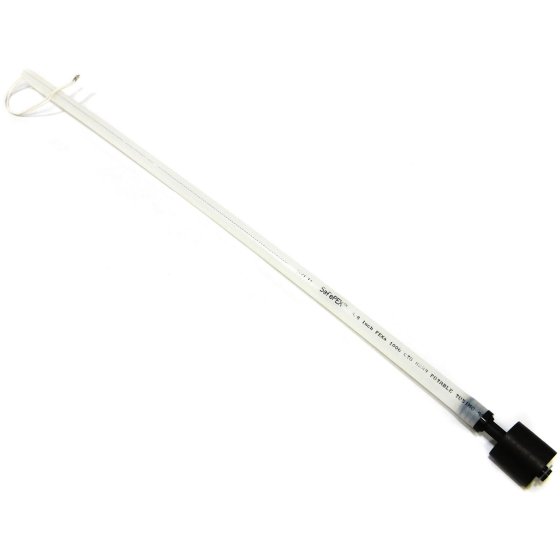

    Found bad Dometic float switch. Replacement was shipped.
  6. rtrafford

    rtrafford Senior Member

    Joined:
    Jul 13, 2019
    Messages:
    1,802
    Location:
    Vero Beach
    That switch with the two white wires will need to be periodically but routinely serviced, cleaned. It can stick and fail to turn on or off.
  7. SplashFl

    SplashFl Senior Member

    Joined:
    Feb 2, 2021
    Messages:
    587
    Location:
    S. Florida _ Bertram 46
    The one that went bad became N/C regardless of the float position. Replacement expected today.
