Fuel Tank Hold-down Failed

Discussion in 'Post Yacht' started by Greg Page, Oct 13, 2022.

You need to be registered and signed in to view this content.
  1. Greg Page, Oct 13, 2022
    #1
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD

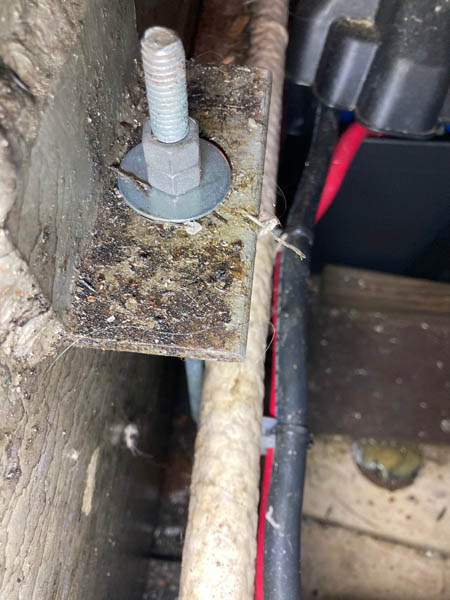

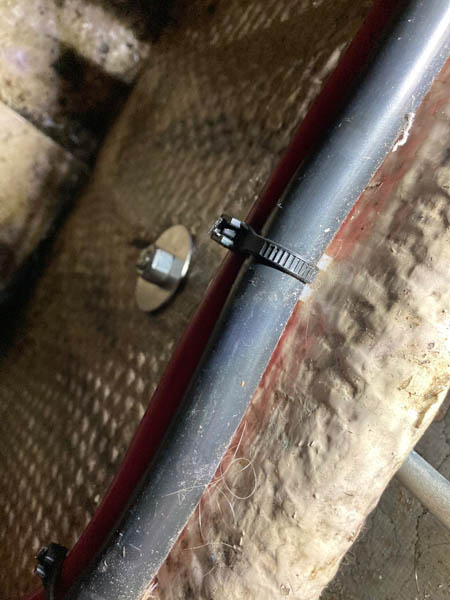

    Heard a new strangle rattle when the CAT tech was over. I couldn't pinpoint the source but he was able to. One of the forward fuel tank L hold-downs had failed. It corroded through right at where they bent it when new and the galvanizing had fallen off. Easy fix with galvanized L bolt normally for imbedding in concrete to hold base plates. Shortened and threaded the other/short end of the L and slipped right into place.

    I do need to get my small shop vac down and vacuume the engine room.

    Attached Files:

    Last edited by a moderator: Nov 3, 2022
    Stainless45 and RT46 like this.
  2. Capt Ralph, Oct 13, 2022
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,711
    Location:
    Satsuma, FL
    Maybe some Teff-Gell or nylon washer and band on the threads keeping the 3 different metals apart.
    Nylock nut on the other end?

    You will never have to think about it again. Unless your going to update the other capture points.
  3. Capt Ralph, Oct 13, 2022
    #3
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,711
    Location:
    Satsuma, FL
    Hopefully all good on the Cats?
  4. Greg Page, Oct 13, 2022
    #4
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Locking nut on bottom/bulkead side. Original was double nutted but that makes the short part of the L too long to fit between the tank and bulkhead to install. I'll replace the other side next time I need to have the batteries out as need them removed for access.

    One motor had a bit lower oil pressure and gauge pulsing when I got back from marina, had 3 1/2 qts too much oil. I think the tech who did genset oil change (since fired) pumped oil into the stbd motor before noticing had the oil exchange valve set wrong. Pulled oil sample to confirm oil viscosity off (from mixing) and look for anything else.
  5. Stainless45, Oct 14, 2022
    #5
    Stainless45

    Stainless45 Active Member

    Joined:
    Jul 19, 2019
    Messages:
    167
    Location:
    Post 46 Long Island NY
    Was that a CAT warranty oil service? Main oil change on their dime now! I trust one guy, and one guy only to work on my boat. And I'm usually there pulling wrenches with him.
  6. Greg Page, Oct 14, 2022
    #6
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Not warranty
  7. YachtForums, Nov 3, 2022
    #7
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,373
    Location:
    South Florida
    The pics in this thread have been reduced in size. Please keep pics under 800 pixels.
  8. Greg Page, Nov 3, 2022
    #8
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Sorry. I don't have a way to drop resolution. Suggestion?
  9. Capt Ralph, Nov 3, 2022
    #9
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,711
    Location:
    Satsuma, FL
    Using MS Windows;
    Right click the picture icon and 5 down is edit (nothing fancy, just edit).. Open that, towards the top left is resize.
    Click resize.
    Click on by Pixel, edit the top line to 800 (or less), the height will auto adjust.
    Hit file and save.
    I usually save my pics with an a added to the name so the original is safe.
    Last edited: Nov 3, 2022
    Greg Page likes this.
  10. YachtForums, Nov 3, 2022
    #10
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,373
    Location:
    South Florida
  11. YachtForums, Nov 3, 2022
    #11
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,373
    Location:
    South Florida
    It's worth noting, if you rename your pics to something that describes the image, it will be better indexed by search engines resulting in a larger response to your threads/posts because you're reaching a broader audience than just YF alone.
    Capt Ralph likes this.
  12. Greg Page, Nov 3, 2022
    #12
    Greg Page

    Greg Page Active Member

    Joined:
    Mar 4, 2017
    Messages:
    389
    Location:
    Annapolis MD
    Thanks. Never saw the photo edit in Windows. My photo editing software dies when WIndows went to 64 bit.
