carver 32 AFT 3207 DIY swimplatform & Stairs

Discussion in 'Carver Yacht' started by mjkkemper, Mar 5, 2011.

You need to be registered and signed in to view this content.
  1. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    I few years ago i took on my first fiberglass build for a swim platform for a 270DA Sea ray. Link below. Well i since moved into a different boat and of course am now building another one.

    http://www.lakestclair.net/forums/index.ph...mp;#entry839332

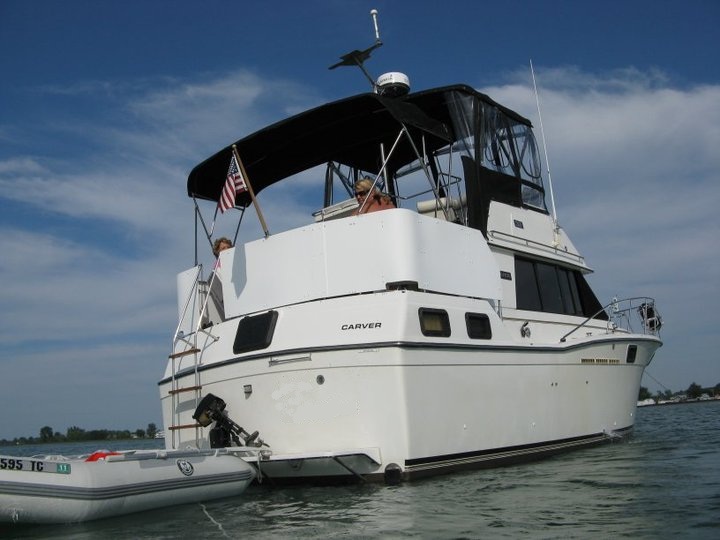

    I am building this for an 86 Carver 3207 Aft Cabin. With the 80's style aft cabin you have a ladder leading down to the plate form. I am planning on putting a set of Fiberglass stairs down to it for the Kids and ease of access. I also going to incorporate a box/seat on the platform

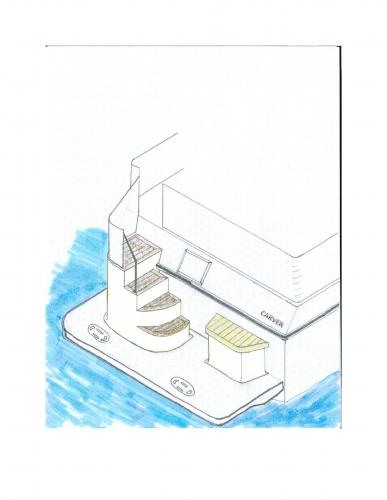

    I started with the stairs making a negative female plug. The boat has some interesting curves so it took quit a few trips to make sure the paper patters where correct. Attached is the sketch of how it will look when finished

    I will update this post if anyone is interested in its progress

    Attached Files:

  2. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI

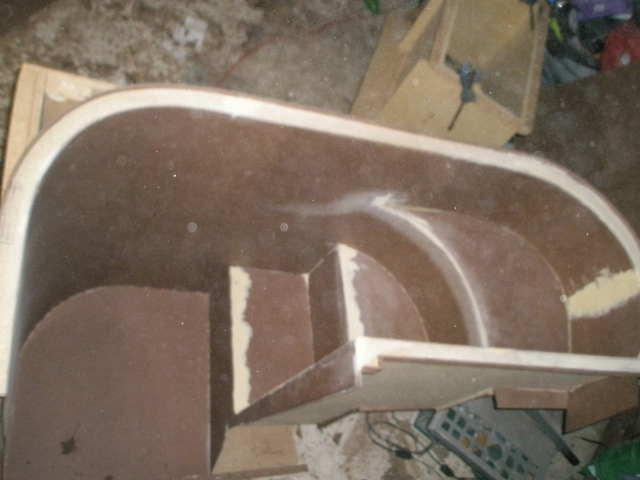

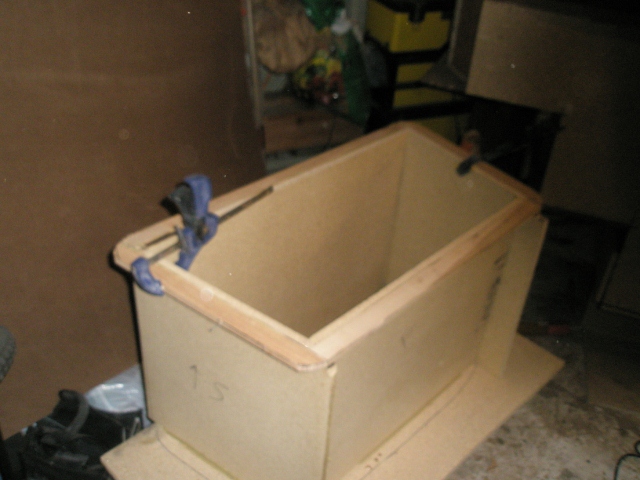

    Below is the progress on the female Plugs/Molds. After I finish rounding the corner i will spray the tooling gel then wax with a parting wax (about 8 times) at this point it will be ready for the fiberglass layup

    Attached Files:

  3. Fireman431

    Fireman431 Senior Member

    Joined:
    Jan 11, 2010
    Messages:
    196
    Location:
    East central Florida
    I am very interested in seeing how this comes out. I have a Carver 374 Voyager and it has a ladder to the fly bridge. I was just remarking yesterday on how I would like a set of steps instead.

    Please continue to update this thread. I may be PMing you...
  4. YachtForums

    YachtForums Publisher/Admin

    Joined:
    Dec 22, 2002
    Messages:
    19,074
    Location:
    South Florida
    Images must be NO larger than 640 pixels in width. Please read our rules before uploading further attachments.
  5. captnrontx

    captnrontx New Member

    Joined:
    Oct 1, 2010
    Messages:
    46
    Location:
    Lake Texoma

    I wish I had your talent. I could do so much more with my Carver.
  6. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    I will try to figure out how to resize these so that the Pixel Police will be happy
  7. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    Ok lets try this again. I did have aditional photo's but i guess they are just to wide

    -Quick update-

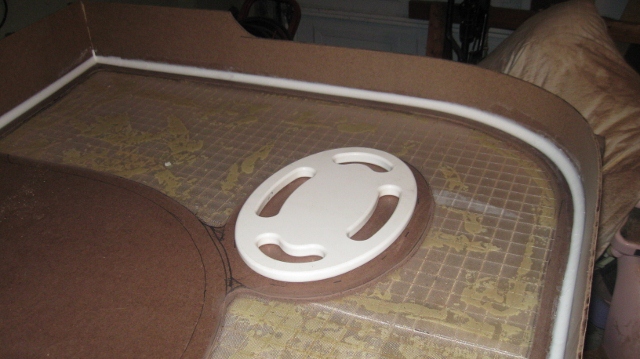

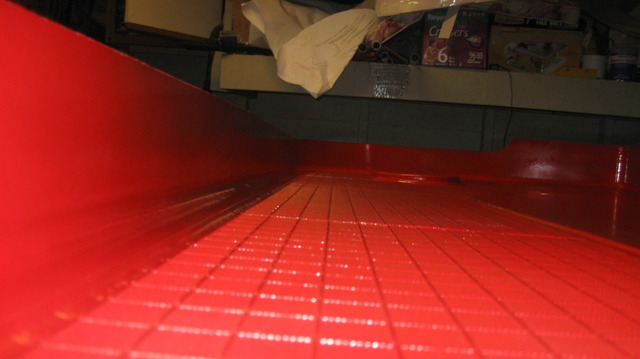

    The Plug for the Platform is complete. Ready for Gelcote and Fiberglass when i get back from vacation. The Red color will help in making sure I have a even coat of white gelcoat.

    The stairs are primed and sanded ready for their red coat.

    Attached Files:

    • yf 1.jpg
      yf 1.jpg
      File size:
      98.4 KB
      Views:
      3,896
    • yf 2.jpg
      yf 2.jpg
      File size:
      68.3 KB
      Views:
      3,856
    • yf 4.jpg
      yf 4.jpg
      File size:
      48.9 KB
      Views:
      3,855
    • yf 5.jpg
      yf 5.jpg
      File size:
      51 KB
      Views:
      3,967
  8. Fireman431

    Fireman431 Senior Member

    Joined:
    Jan 11, 2010
    Messages:
    196
    Location:
    East central Florida
    You appear to be doing high quality work. Very nice. The hardest part for me would be to decipher the fact that I'm building a negative of what I really need.

    Just as a starting point for me to consider for my vessel, what would be the finished price for that set of custom made steps (no swim platform)? PM me if I'm breaking some sort of policy or rule.
  9. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    -Week end Progress-

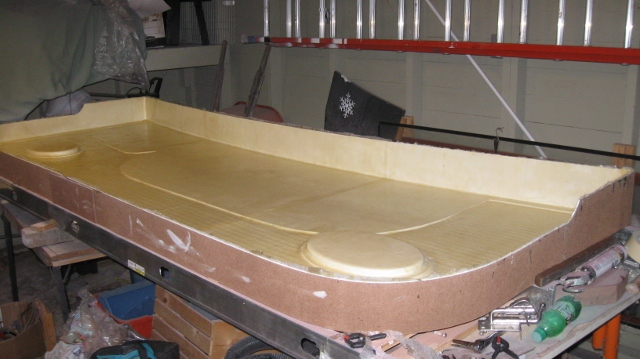

    Finished waxing and spraying the release agent

    Spayed the Gelcoat on the molds

    One layer of surfacing Veil (3/4oz Fiberglass) on the swimplaform


    My fiberglass schedule is a follows:

    PLATFORM
    2 coats of parting film
    2 coats of gel coat no wax
    1 layer of surfacing veil
    2 layers of 1.5 oz chop mat
    1 layer of 1708 Bi-axle
    3/8" end-grain balsa
    1 layer of 1.5 chop mat
    1 Layer of 1708 Bi-axle
    1 layer of 1.oz chop mat
    possible layer of woven fabric

    STAIR
    2 coats of parting film
    2 coats of Gelcoat no wax
    1 layer of 3/4oz surface veil
    2 Layers of 1.5oz mat
    1 Layer of 1708 Biaxle
    -coring on the steps-
    2 layers of mat
    Possible layer of woven fabric

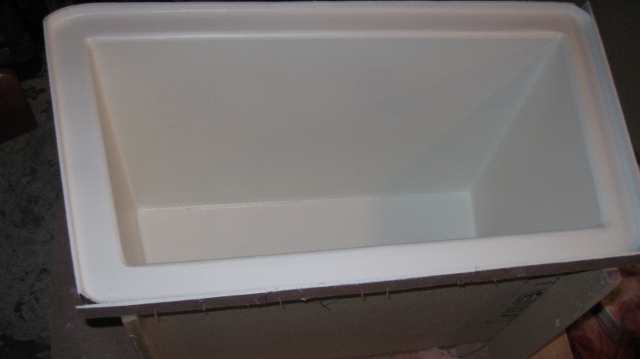

    SEAT
    Same as the stairs

    Attached Files:

  10. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    I am not really sure in that this is just a hobbie born out of necessity given the prices they charge to have these made. I am lucky on the 3207 its just two steps to the fly bridge. the draw back is the ladder down to the swim-platform
  11. L Davis

    L Davis New Member

    Joined:
    Feb 28, 2011
    Messages:
    12
    Location:
    Chattanooga
    WOW....you do great work!!!!, very interesting, please keep us all informed,
    any pictures of other glass projects?? (would love to see them)
  12. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI

    Attached Files:

  13. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI

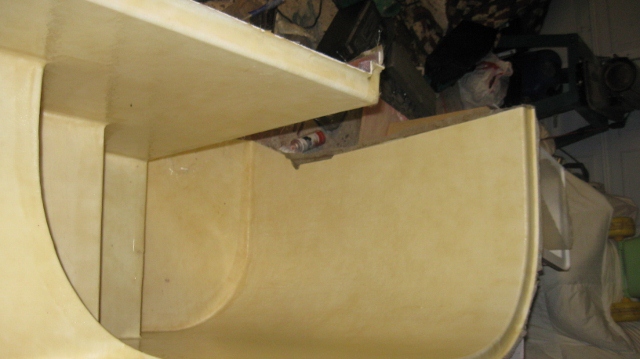

    finished the last coat of fiberglass on the stairs and demolded

    Hung it from the rafters and let gravity do the work

    [​IMG]


    set the stairs up on the platform
    [​IMG]

    [​IMG]

    [​IMG]
  14. JustMag

    JustMag Member

    Joined:
    Feb 14, 2010
    Messages:
    94
    Location:
    Cincinnati
    :eek: I'd say you were pretty good as a hobbyist! Those look awesome! Do you use and chopper guns or any mechanical equipment?? Or all hand laid?? Fabulous work!
  15. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI

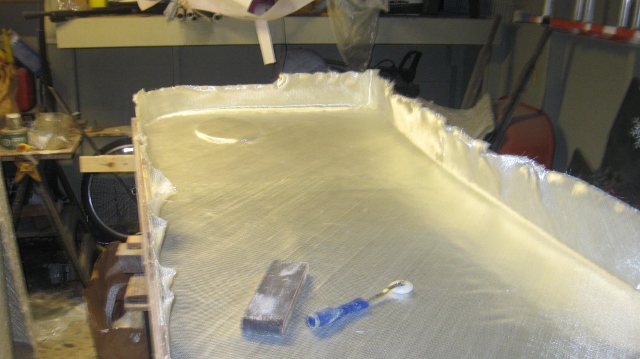

    All hand layup. a choper gun would have been nice. Below is prior to adding the resin

    Images Removed. Please resize.
  16. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,392
    Location:
    My Office
    Photo Resizing

    Hi,

    If you want to resize your photos here is a great free program to use, I have posted links to it here on YF before. It works great

    http://pixresizer.en.softonic.com/
  17. Fireman431

    Fireman431 Senior Member

    Joined:
    Jan 11, 2010
    Messages:
    196
    Location:
    East central Florida
    What are the oval shaped parts on either side of the swim platform?
  18. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    I have cut them out yet but they are to element pressure from building up under the platform from waves or your wake when you slow down quickly. They pretty common on most boats swimplaforms these days
  19. Fireman431

    Fireman431 Senior Member

    Joined:
    Jan 11, 2010
    Messages:
    196
    Location:
    East central Florida
    I see. Thanks. I haven't seen them before, but most boats I come into contact with have swim platforms molded as part of the hull and therefore must be intrinsically stronger than a bolted on platform.
  20. mjkkemper

    mjkkemper Member

    Joined:
    May 31, 2010
    Messages:
    32
    Location:
    Grosse Pointe Farms, MI
    Almost done

    Still need to attach the stair - Some triming to do. I oversized the template so that i could trim it closer where the stairs meet the transom.

    Also need to attach the railing and put the remaining supports underneth it and cut the holes for the vents.

    [​IMG]

    [​IMG]

    [​IMG]

    Picture is of the seat with the cushion lifted up - plan on using as a cooler or bait/livewell. there is a drain on the bottom
