Capitol Gear Oil Screen

Discussion in 'Engines' started by Brian Beal, Feb 1, 2026 at 6:23 PM.

You need to be registered and signed in to view this content.
  1. Brian Beal, Feb 1, 2026 at 6:23 PM
    #1
    Brian Beal

    Brian Beal New Member

    Joined:
    Dec 30, 2017
    Messages:
    1
    Location:
    Hinckley, OH
    I have the HE-10200's in my Hatteras 43MY. I have looked through all the manuals I have, and there are instructions to clean the oil screen, but no indications of the exact location. Supposed to be in the pickup line at the sump as far as I can tell. It is not there. I have removed the suction hose and I can stick a nutdriver all the way in the sump. Is that fitting at the bottom of the sump supposed to have a screen on it? It is somewhere else?
  2. Capt Ralph, Feb 1, 2026 at 6:54 PM
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    14,190
    Location:
    Satsuma, FL
    Hello sparky66
    Welcome to Yacht Forums.

    On the bottom of the case facing aft. That hose going to your oil pump;

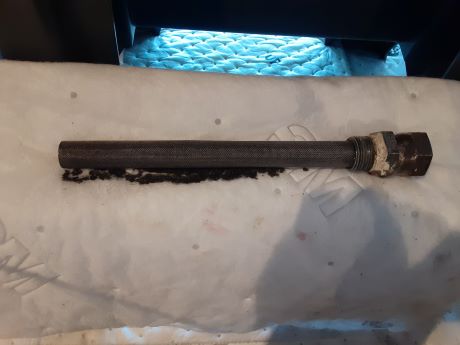

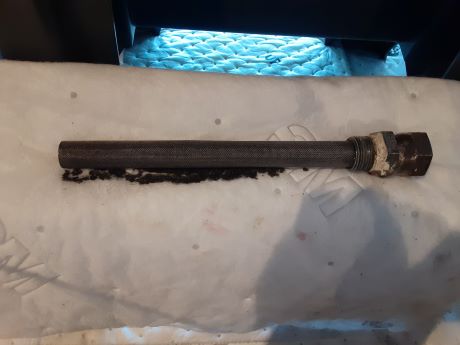

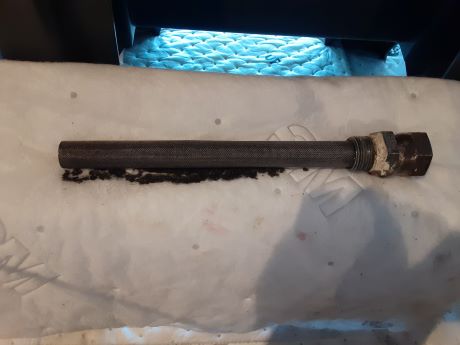

    That hose fitting into the case sump has the screen attached to it.
    Send me your e-mail address and I'll send back the service manual and IPB.
