After opinions on styling

Discussion in 'Yacht Designers Discussion' started by Garry Hartshorn, Mar 5, 2007.

  1. Garry Hartshorn, Mar 5, 2007
    #1
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth

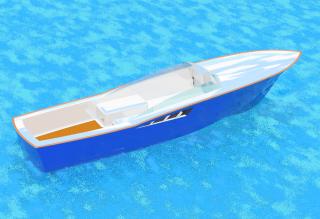

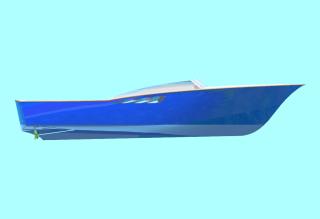

    This is a little toy I have been daydreaming about lately, 33ft Sport boat.

    Attached Files:

  2. Garry Hartshorn, Mar 5, 2007
    #2
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Carl

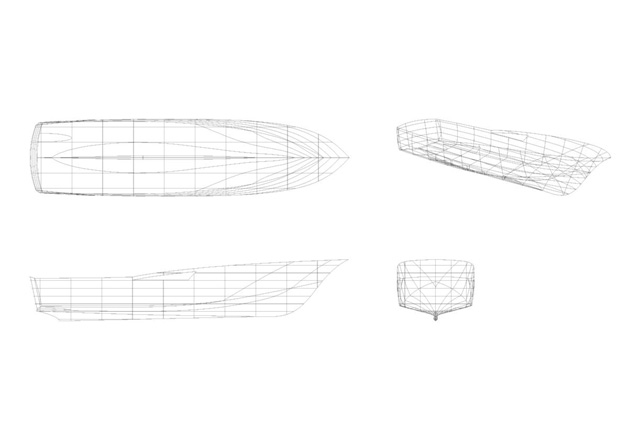

    Sorry about the sizing of that lines drawing I thought I had it right, but I guess not
  3. AMG, Mar 5, 2007
    #3
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Good looking boat! Maybe a little too flat aft part of the hull for higher speeds, but around 18-20 knots she will probably perform just fine.

    This hull shape is more often used in a bigger size, like 50 feet where the displacement is softening the ride.
  4. Garry Hartshorn, Mar 5, 2007
    #4
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Interesting you comment on the speed that is exactly the speed I was intending for cruise, max around 25 26. And if I every build it, it will most likely be used on a lake near my house.
  5. Garry Hartshorn, Mar 6, 2007
    #5
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth

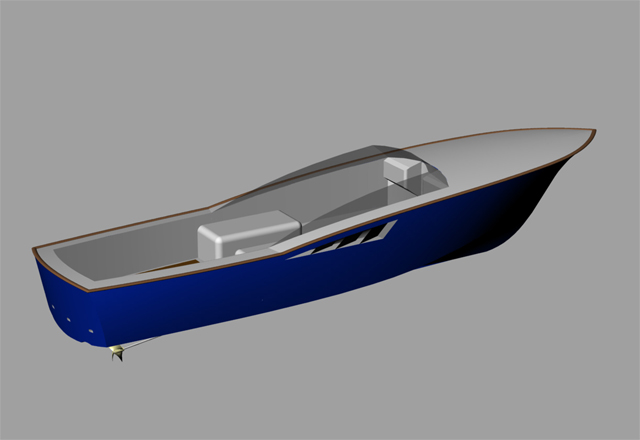

    A little clearer view

    Attached Files:

    Last edited by a moderator: Mar 6, 2007
  6. KCook, Mar 6, 2007
    #6
    KCook

    KCook Senior Member

    Joined:
    Jun 24, 2005
    Messages:
    1,160
    Location:
    Phoenix
    The form of the hull bottom got my attention too. Appears to be low prismatic coefficient, does this mean it's meant to be a semi-displacement design?

    As for the styling, that is certainly a proud bow. But I wonder if the helmsman can see over it?

    Kelly Cook
  7. brandonw, Mar 6, 2007
    #7
    brandonw

    brandonw Senior Member

    Joined:
    Jan 15, 2006
    Messages:
    491
    Location:
    Tampa, FL
    Very nice design. I want one!
  8. Garry Hartshorn, Mar 6, 2007
    #8
    Garry Hartshorn

    Garry Hartshorn Senior Member

    Joined:
    Jun 14, 2005
    Messages:
    504
    Location:
    Directly above the center of the earth
    Basic concept of the vessel is that it is maximum trailerable size in New South Wales. Is relatively ecconomical and can handle a nasty bay chop. Hense the fine entry, shallow deadrise aft and the high flared bow.

    With a pair of 125 hp Yanmars or similar she would comfortably cruise at 20 knots with a top end of 25-26 knots.

    The otherthing you can't see in the pictures it that there is a step between the engines and that the forward cockpit deck is raised, so when standing at the helm " stbd fwd " you will be able to see over the bow, when seated the view will not be obsured but not great
