A new head on Post Sportfish Yacht

Discussion in 'Post Yacht' started by water-baby, Feb 25, 2013.

You need to be registered and signed in to view this content.
  1. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,715
    Location:
    Satsuma, FL
    Not a clue here. Just wanted to request you keep us up on your progress.
    ,rc
  2. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Will do Ralph!
  3. chesapeake46

    chesapeake46 Senior Member

    Joined:
    Jul 26, 2009
    Messages:
    1,682
    Location:
    Chesapeake Bay, Delaware Bay & S.Jersey
    Hi,

    Mine are under the floor boards towards the centerline of the hull.
    Mine is 46'-1980, galley down with a table down as well. The sea cocks for the heads are just about in line with the aft head.

    Head on the strbd and the sink, in my case, on the Port.

    Good luck
  4. mwwhit1

    mwwhit1 Senior Member

    Joined:
    Jan 19, 2006
    Messages:
    239
    Location:
    Jersey City NJ\Boca Raton FL
    Lift up the floor board in front of the refrigerator. The sea cock for the head intake is right there.

    You also have the shower\sink sump in the next compartment. Chances are that could use a good cleaning.
  5. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Got it thanks! I will check it out as soon as I get off work this afternoon. Thanks!
  6. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Mark, you are exactly right. The thru hull and sump are under the floorboards in the galley. Time to yank the LectraSan to send back for refurbishing.
  7. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Ok so I removed the LectraSan today and cleaned/prepared for refurbishing at Raritan. I also begun the process of replacing the defunct Jabsco Y valve and sanitation hoses. Currently this plumbing consists of 1 1/2 in h black rubber hose. Like a wise guy I thought I would replace my hoses with the 1 1/2 inch white sanitation hose. However, I am learning that the white sanitation hose is far less pliable and can't make the bends and turns needed to keep the white hose from kinking. So I guess I need to go back and get the more flexible black hose. Do you guys have any recommendations?

    Thanks!
  8. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Hi Bill,

    I need the 1 1/2 inch hose. Also, I do have white 1 1/2 inch sanitation hose I just got from WM @ $4.90/ft. Not the same brand you show however. The problem I am having is that my product does not make turns without kinking, which of course is a no go. Is the product that you shared more flexible?

    Thanks,

    John
  9. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL

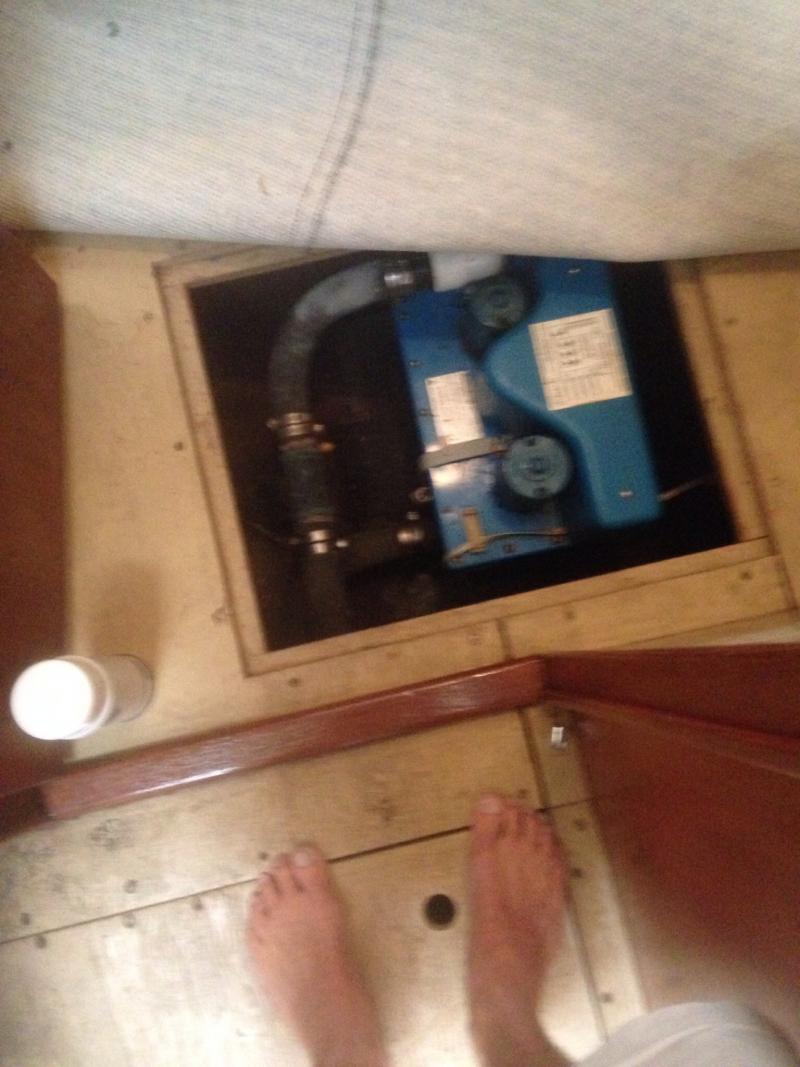

    This is not a great photo. However the black hose you see going from the seacock to the lectrasan is seeping, it is probably 30 years old. It is this and other sections that I am replacing. Unfortunately, the "sanitation hose" that I am trying to use will not even make the bend illustrated by the photo to replace its old black, seeping counterpart. Instead, it wants to kink. Moreover, not viewed in this photo is another section from the Y valve to the LectraSan intake that has even a more severe turn.

    Attached Files:

  10. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Nice feet though, huh
  11. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL

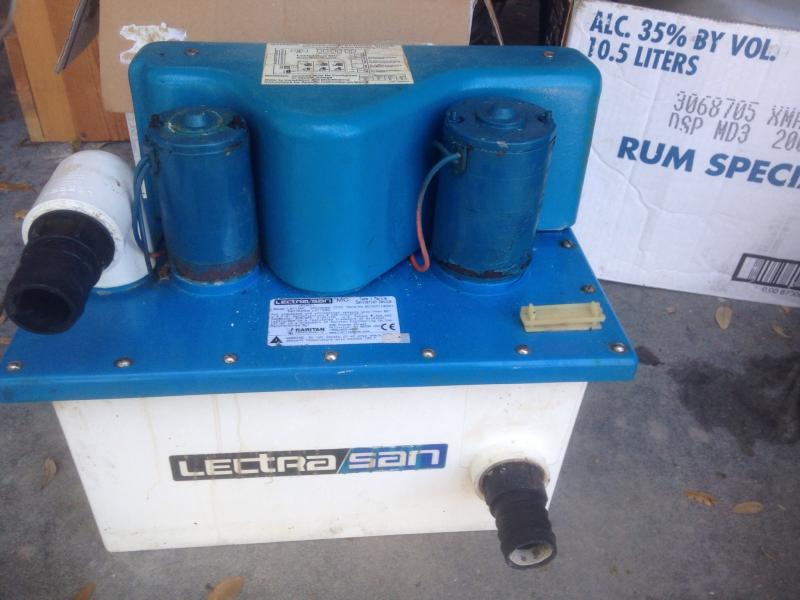

    However, the Lectrasan is out, cleaned and ready for shipping to Raritan to be rebuilt.

    PS the Rum in the background must be Ralph's...

    Attached Files:

  12. ruby

    ruby Member

    Joined:
    Apr 22, 2012
    Messages:
    230
    Location:
    Long Island
    That's a ****ty job..:D
  13. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL
    Yessir! The admiral declined and delegated the task to yours truly. Imagine that! :)
  14. Berean

    Berean Senior Member

    Joined:
    Aug 26, 2007
    Messages:
    276
    Location:
    Sarasota FL

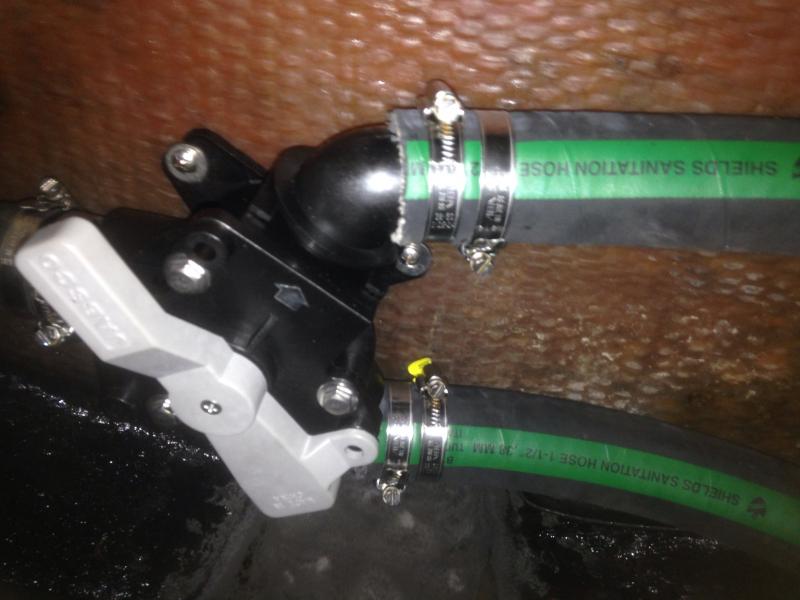

    But anyway, back to the whole hose saga, I think I'm set. I took the stiff white sanitation hose back to WM and got the black 1 1/2 inch sanitation hose. It is much more flexible and much easier to work with. I went ahead and cut sections to match those hoses I removed and installed the new Jabsco Y pump. new hoses and new clamps so my work is complete and ready to install the refurbished LectraSan when it comes back from Santa's shop.

    When I had everything pulled out of the bilge compartment I scoured it clean with copious amounts of bleach, Dawn and fresh water. It looks and smells much better!

    Attached Files:

  15. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,715
    Location:
    Satsuma, FL
    Start spraying the bilges down with the cheapest white vinegar you can find and rinse the next day. That will really help remove the old boat/bilge smell.

    If I had a bit more notice, I could have come the rest of the way down tonight and helped with that rum problem you seem to have (it's collecting dust).
    Was in Melbourne (FL) this weekend working in an old Vikings bilge. Just back in to Jax a few hours ago.
    Weather with lighting getting bad up here.
  16. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    10,715
    Location:
    Satsuma, FL
    By the way;
    Found WaterBaby and his ship today at a friends marina. Good looking ship. Very nice family.
    ,rc
  17. mwwhit1

    mwwhit1 Senior Member

    Joined:
    Jan 19, 2006
    Messages:
    239
    Location:
    Jersey City NJ\Boca Raton FL
    The laws down South allow treated waste discharge? Up here most of the bays are no discharge so I had to remove this unit and install a holding tank.

    Is it worth spending money on these type of units any more when so many places are forcing no discharge?
  18. water-baby

    water-baby Member

    Joined:
    Dec 22, 2012
    Messages:
    97
    Location:
    Wabasso, FL
    image.jpg image.jpg image.jpg
  19. Post Mayhem

    Post Mayhem Member

    Joined:
    Oct 8, 2014
    Messages:
    44
    Location:
    Deltaville, VA
    I am sure that by now this has been resolved but if not, remove the forward deck opening in the galley. You will find the valve you are looking for there. Forward toward the centerline. At least that is where I found mine.
