40 Cabo Bow Thruster Installation Pics

Discussion in 'Cabo Yacht' started by PSW, Oct 14, 2017.

You need to be registered and signed in to view this content.
  1. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA

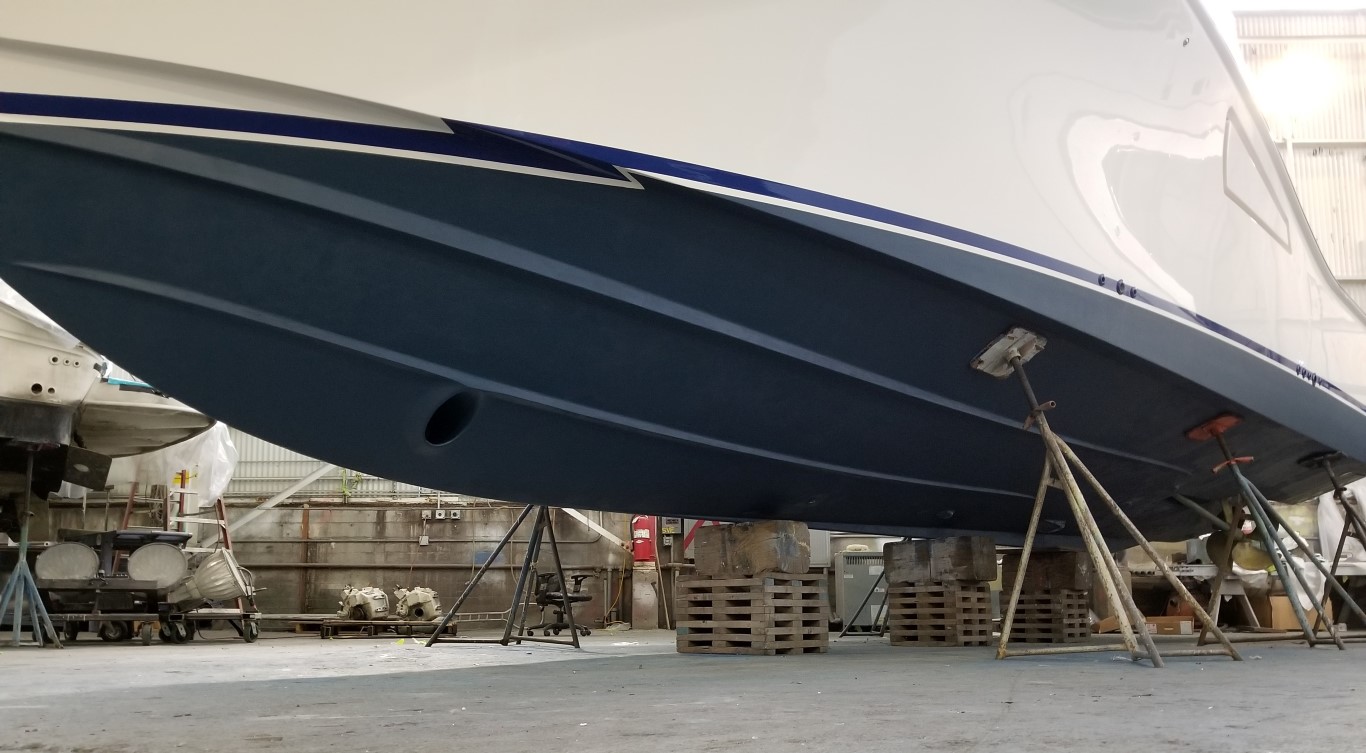

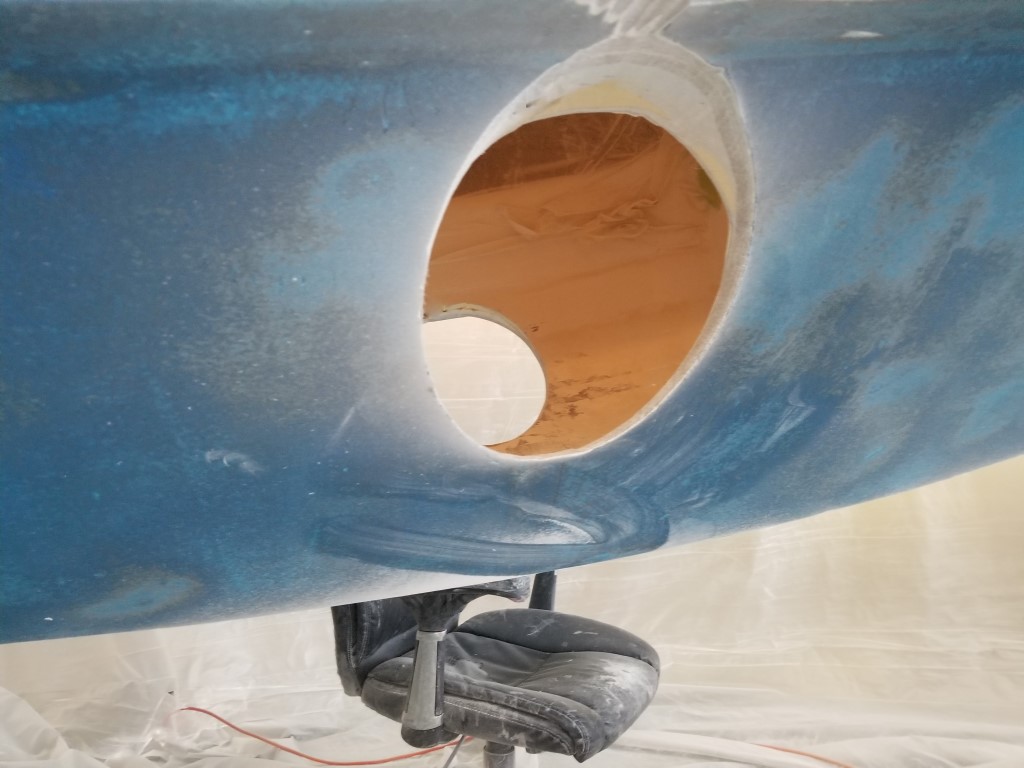

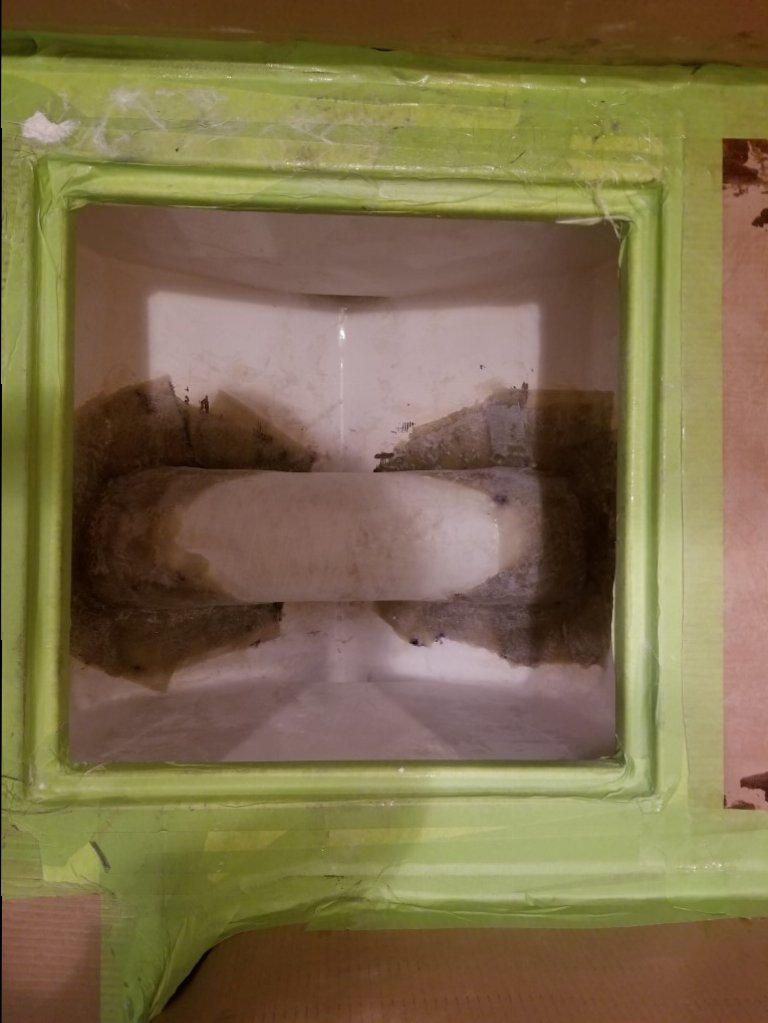

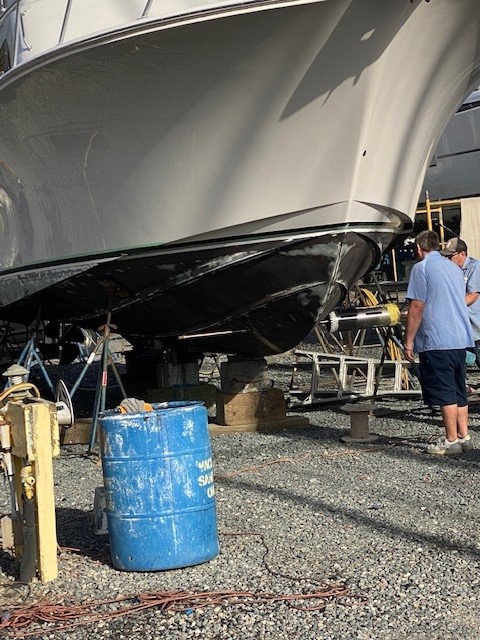

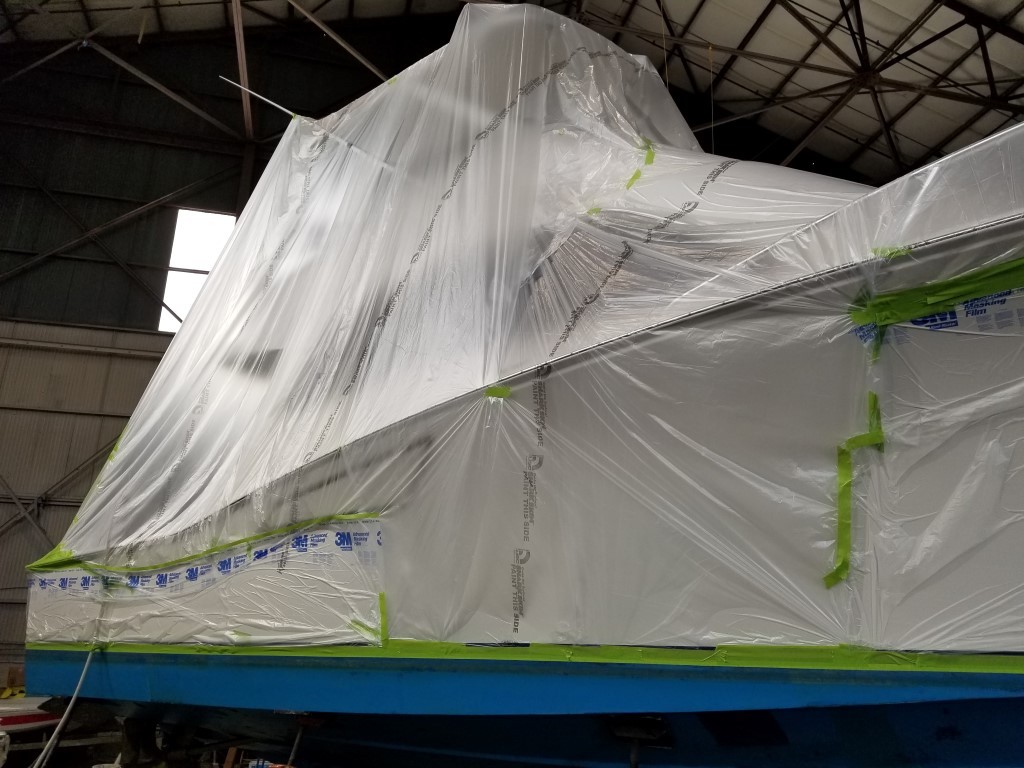

    Just finished up the bow thruster intall on the boat. Had CSR in Seattle give the bottom a heavy sanding and 2 coats of Cukote while concurrently glassing in the new thruster tube. Once the tube was finished and the motor was mounted we headed back to the shed and after work this week I spent each evening working on the electrical and rigging. Finished up this evening and gave it a quick test tied up at the dock. Looking forward to going out and filling up with fuel tomorrow and giving the new thruster a test into some side current and wind while docking.

    System is a Side Power SE100 24V

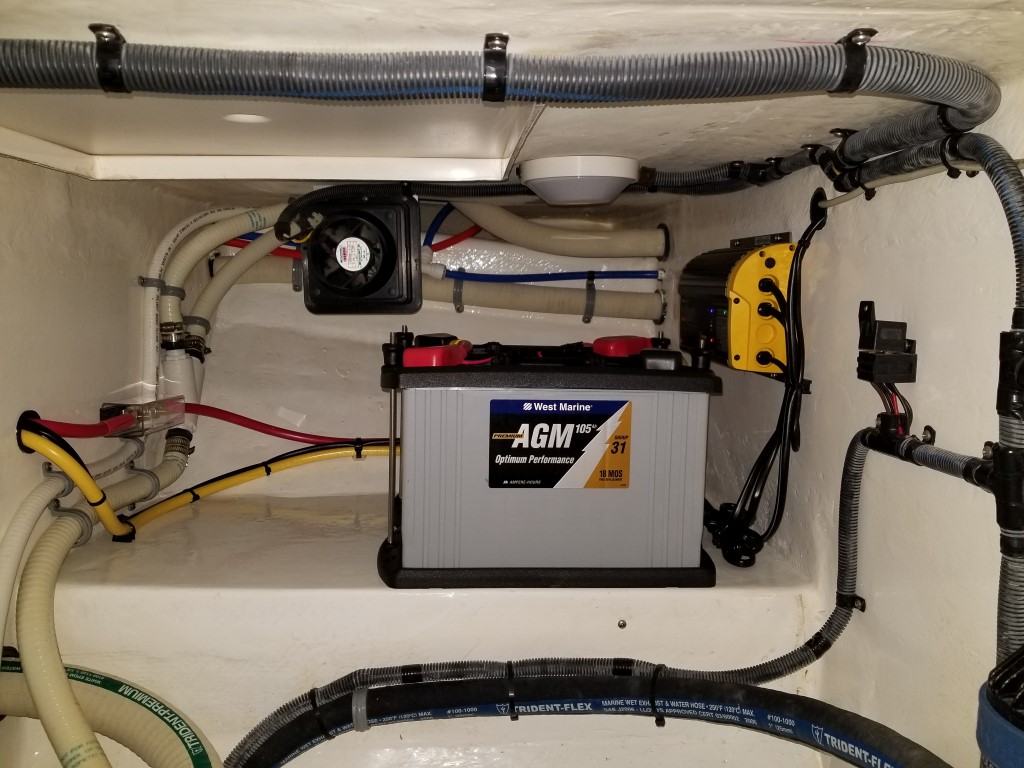

    2 AGM Group 31 Batteries with 1/0 Cables

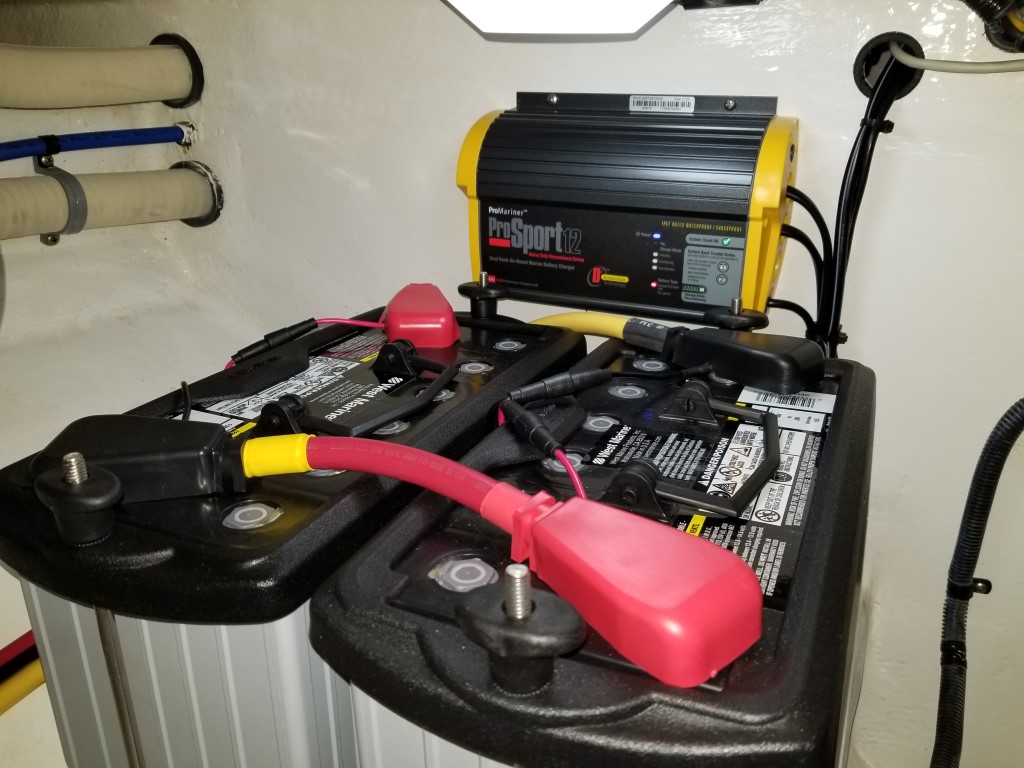

    Pro Mariner 12Amp Charger Dual Bank
    Blue Seas Battery Switch

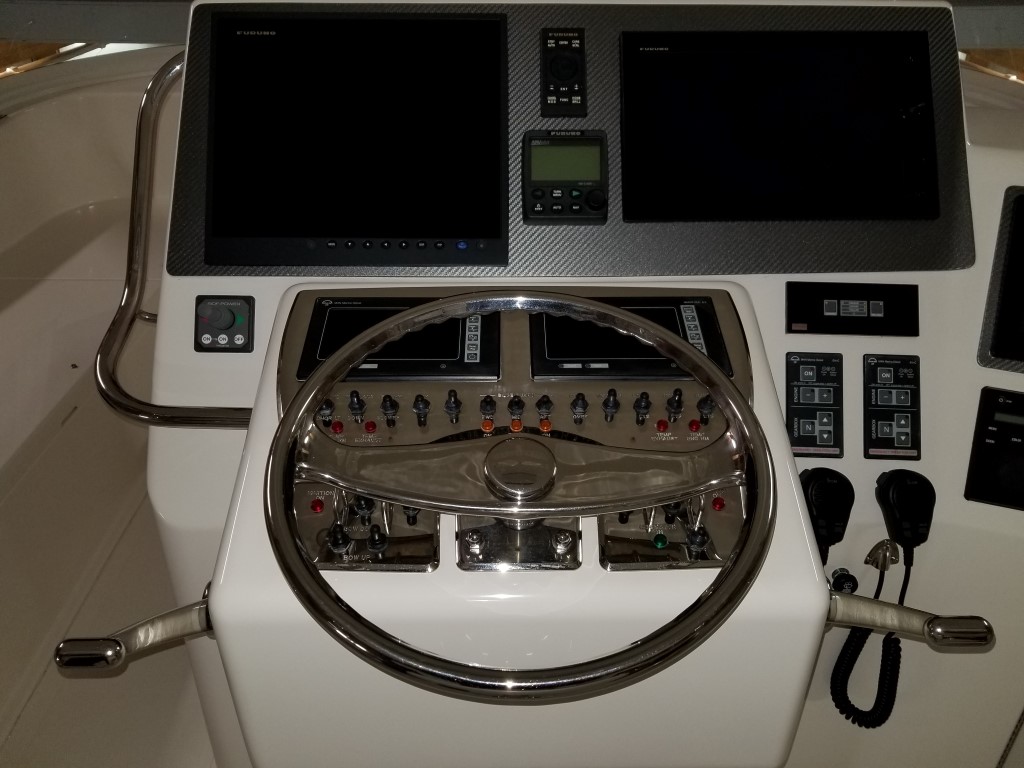

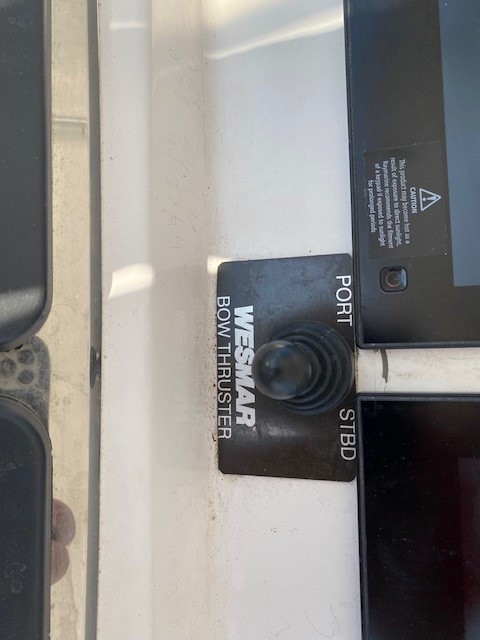

    Going to Lauderdale show and plan to look into adding Ongaro single levers with integrated thruster controls with a y harness. Anybody have any experience positive or negative with single lever controls that have thuster control built in? Currently have Ongaro levers on the boat already.

    Attached Files:

  2. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    More pics

    Attached Files:

  3. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    Last set of pics...

    Attached Files:

  4. Trinimax

    Trinimax Senior Member

    Joined:
    Jan 18, 2010
    Messages:
    220
    Location:
    Trinidad and Tobago Yacht club
    Nice install. looks clean. I know the cabo 40 has a good of space below the forward companion way. I thought about putting a thruster in the 43 ocean, but the sewage tank is below the master berth and the plumbing for the forward head takes up all the space up there. Would have been too much of a PITA to reroute everything in the tight space
  5. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    I had a 40 Ocean Yachts previously and always wanted a thruster but they design the boat that it is a near impossible install. Cabo had hatches already where you needed to have access and made it very easy to install after the boat was built.
  6. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,995
    Location:
    Dana Point, Ca

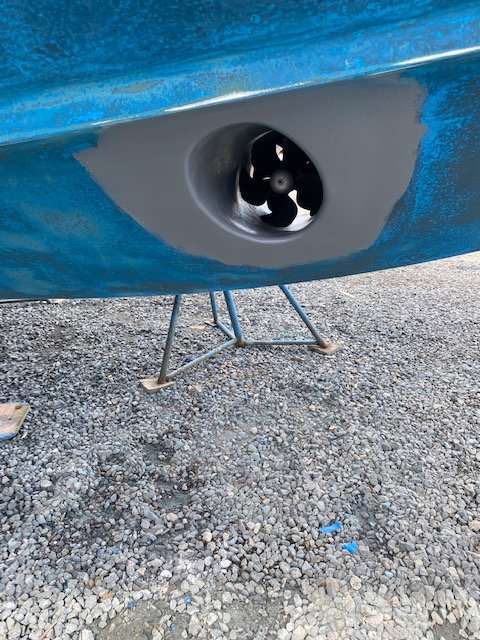

    Little surprised at the sharp edges and lack of fwd fairing or aft relief? Maybe not seeing the picture right?
  7. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    I will find a better pic. I had the Side Power rep come by the yard and he noted the nice rounded edges and fairing forward. I am on the boat now tinkering. Did some testing and it performs great. Very happy with outcome.

    I will find ya a better pic to show shape.
  8. PacBlue

    PacBlue Senior Member

    Joined:
    Jan 9, 2009
    Messages:
    1,995
    Location:
    Dana Point, Ca
    Thought it might just be the picture angles.
    Will be nice to have when you are single handling, almost like another "helper" onboard!
  9. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    Took the boat out briefly yesterday for testing and thruster ran great and moves the bow as I had hoped.

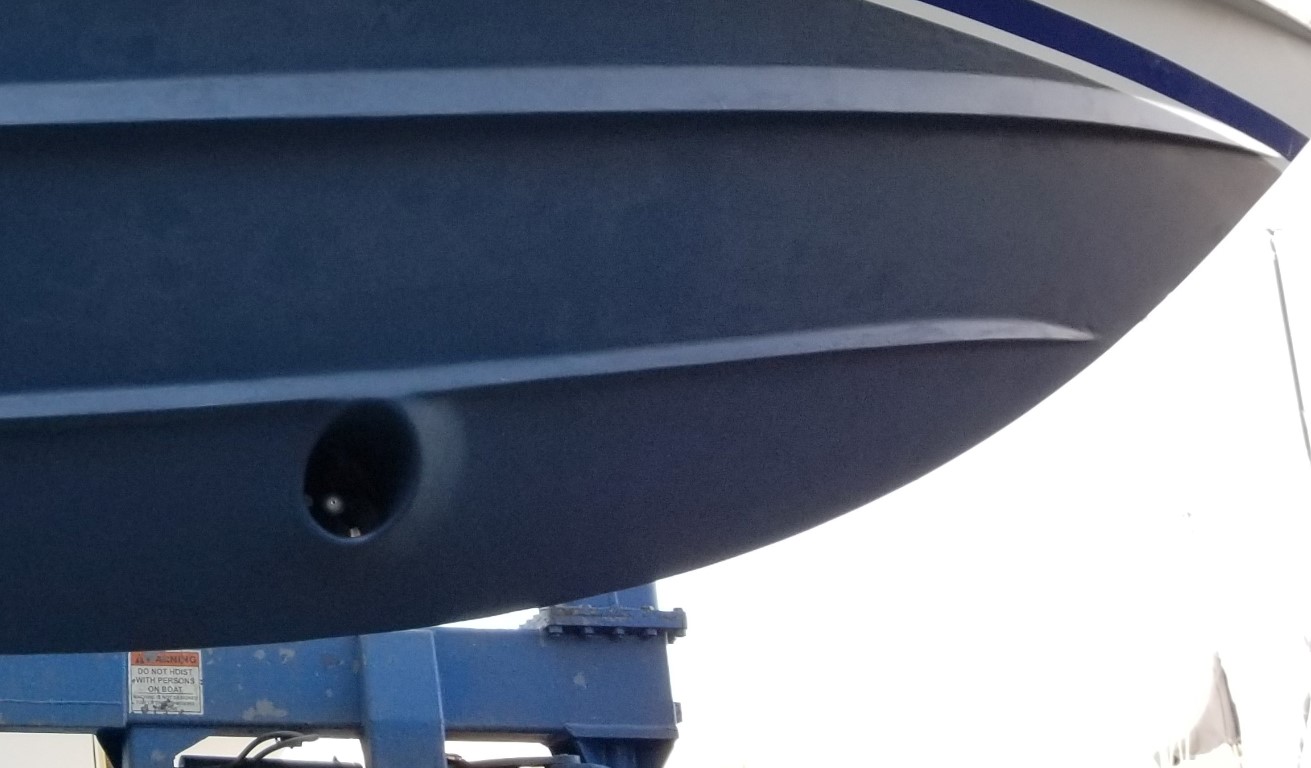

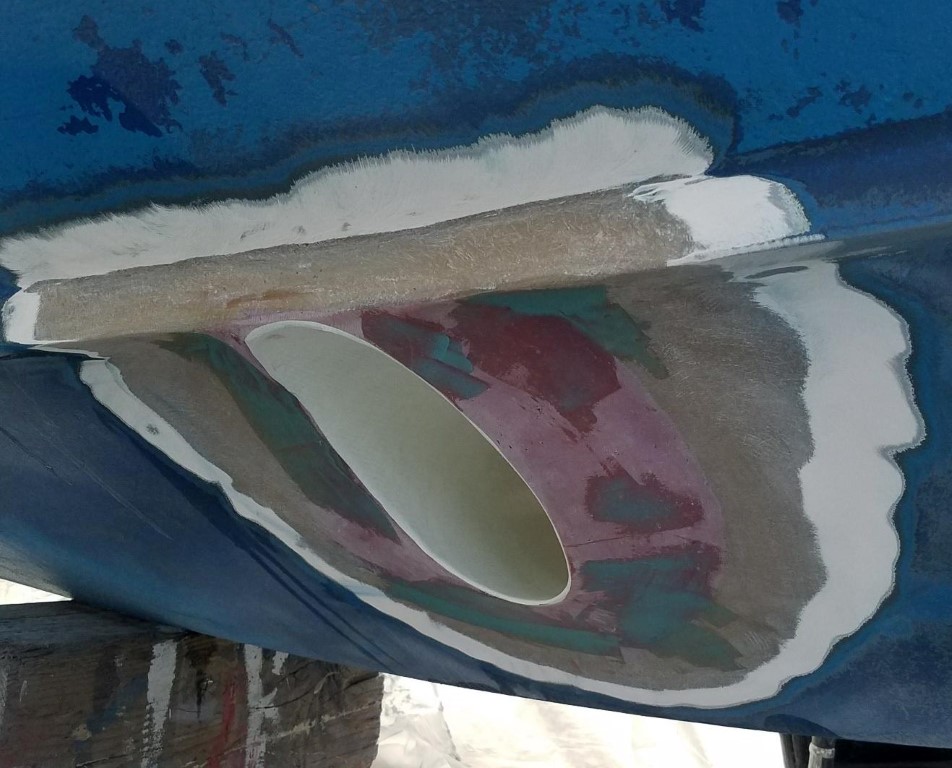

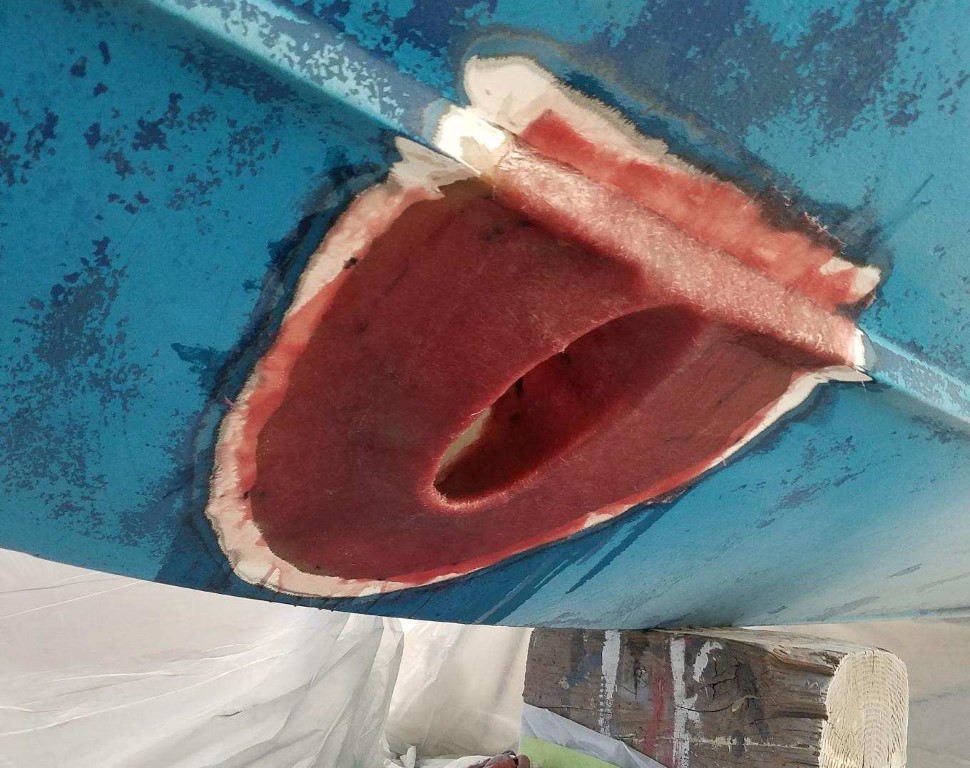

    Attached are some pics to better show level of fairing CSR used. In these pics the bow has been sanding down and barrier coat applied to thruster work area. This area received paint prior to entire boat getting 2 coats.

    Attached Files:

  10. Controlled Chaos

    Controlled Chaos New Member

    Joined:
    Jun 19, 2017
    Messages:
    24
    Location:
    Rancho Palos Verdes, CA
    Nice job!

    I'm start reseraching on a bow thruster for my OY52SS. Tube will be installed professionally but I would like to do the rest. I like your set up. Did you installed motor and wiring yourself?
  11. PSW

    PSW Member

    Joined:
    Feb 13, 2010
    Messages:
    103
    Location:
    Bellevue, WA
    The yard did the tube and set the motor. I did the rest. It is pretty strait forward. Sizing cables correctly for length of run is biggest consideration along with finding ideal location for everything.
  12. Controlled Chaos

    Controlled Chaos New Member

    Joined:
    Jun 19, 2017
    Messages:
    24
    Location:
    Rancho Palos Verdes, CA
    TY
  13. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    13,973
    Location:
    Fort Lauderdale
    That's because a thruster was optional on the 40' Cabo.
