    Does anybody happen to know who makes custom vessel systems indicator panels? The type where the panel has a silhouette of the vessel on it with lights that indicated what systems, pumps, lights, etc. on board are active.
  2. olderboater, Jan 24, 2015
    #2
    olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    7,132
    Location:
    Fort Lauderdale
    What engines are you dealing with?
  3. Capt Bill11, Jan 24, 2015
    #3
    Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    They are CATs. But I just need the panel to indicate with lights when bilge pumps, shower sumps and certain lights are on. It's to replace an existing panel. So the vast majority of the wiring is in place.
  4. olderboater, Jan 24, 2015
    #4
    olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    7,132
    Location:
    Fort Lauderdale
    Ah....I was thinking of people who provide systems, not panels only. The ones I know who are capable aren't going to do a project that small. People like Crestron will program anything. You might check with them. They might be able to refer you somewhere if they won't do it. MTU offers it but again part of MTU systems.
  5. NEO56, Jan 24, 2015
    #5
    NEO56

    NEO56 Member

    Joined:
    May 2, 2014
    Messages:
    656
    Location:
    Miami
    Most Yacht builders made their own, Westship, Westport, etc. Either that or they are made by another manufacturer with the Yacht Builders name silk screened on it. I'm guessing a google search will answer your question. If not contact Marine Electronic Installation, they'll be able to find you one.
  6. d_meister, Jan 24, 2015
    #6
    d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    469
    Location:
    La Conner, WA.
    I've replaced an original panel with boat outlines, bilge pump, nav light, and other tell tales on a Riviera 58 made by Technografic in Fort Lauderdale when the original was damaged. They make them for a number of manufacturers. I have no association with the company other than as a past customer. Use the spelling and add Fort Lauderdale in google. Otherwise, I've designed them from scratch and gone to a large engraving firm in San Diego. I tried trophy shops and the like, but no joy. Finding a high-end engraving company willing to be involved is a lot more difficult than I thought it would be. Most didn't seem to like to wander out of their comfort zone, and there may not be any real cost savings unless you do the design work and electrical interface yourself.

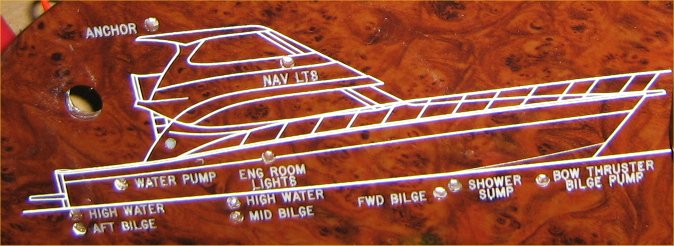

    The picture is before I installed the LED's and lightwire.
  7. Capt J, Jan 24, 2015
    #7
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    What boat is the panel on (manufacturer)? Have you tried the manufacturer? Most are made for a manufacturer only and have a small circuit board in them.
  8. olderboater, Jan 25, 2015
    #8
    olderboater

    olderboater Senior Member

    Joined:
    Sep 2, 2013
    Messages:
    7,132
    Location:
    Fort Lauderdale
    He's right that they should be able to replicate it.
  9. Capt J, Jan 25, 2015
    #9
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    Some aren't able to like the Searay panels prior to the square one....maybe pre 2002.
  10. P46-Curaçao, Jan 25, 2015
    #10
    P46-Curaçao

    P46-Curaçao Senior Member

    Joined:
    Mar 8, 2013
    Messages:
    734
    Location:
    Curaçao (CW), Hollywood (FL) and Amsterdam (NL)
    Prospect Plastics, can certainly do the job for you!

    Address: 836 NE 44th Street, Ft. Lauderdale, FL 33334
  11. Capt Bill11, Jan 26, 2015
    #11
    Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    I tried Google first. No joy. Perhaps I wasn't using the correct nomenclature.

    I should have thought of Prospect Plastics. And now that you mention it I have seen the location of http://www.tecnografic.com so I'll stop by and talk with them.

    It's for an 82' Horizon. But we want to add and change some lights. So I think it would be easier to deal with some one local.

    Thanks
  12. Capt J, Jan 26, 2015
    #12
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    Prospect plastics is very good I know Robert over there very well. Also Rick at Edco does good work also. Both are capable of making a plexi (or other material) panel for you.
  13. YachtForums, Jan 26, 2015
    #13
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    I used Prospect Plastics years ago to fabricate a flybridge access door on our Broward. Work was good, but if it's pricey there are other plastic suppliers with engraving capability in adjoining cities/counties. If you can supply a .dwg or illustrator file, most of them have engraving equipment.
  14. Capt Bill11, Jan 26, 2015
    #14
    Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    Thanks. I've used Prospect Plastic for years for a lot jobs and have always been happy with their work. They just didn't register in my mind for this.

    Ah the joys of getting older. :)
  15. Capt J, Jan 26, 2015
    #15
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    Edco can do all of the engraving as well. Their main location is in Hollywood, but they have several satellite locations all over Broward.
  16. Capt Bill11, Apr 13, 2015
    #16
    Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    Just wanted to say thanks to d_meister for the refferal to Tecnografic. They did a great job on the panels we needed and they did them in a timely fashion as well as for a fair price.

    Their custom panel tech Corey was a pleasure to work with.

    Based on my experience I highly recommend them.

    http://www.tecnografic.com/
  17. d_meister, Apr 13, 2015
    #17
    d_meister

    d_meister Senior Member

    Joined:
    Mar 4, 2010
    Messages:
    469
    Location:
    La Conner, WA.
    Capt Bill11,
    You're welcome, and thank you for reporting back. I'm pleased that it worked out.
