Royal Huisman Rolls Out "Athena"!

Discussion in 'Royal Huisman Yacht' started by YachtForums, Jun 17, 2004.

You need to be registered and signed in to view this content.
  1. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Athena - First Light gives way to first Breath

    When years become months and months become weeks the reality of what is happening at Royal Huisman Shipyard literally takes ones breath away. In November 1999 the contract for the Athena project was signed and after a year of development and design construction started in January 2001. What was not so long ago a mass of metal, wood and equipment has been transformed into the long awaited 3 mast schooner, Athena. At some 90m she represents by all accounts the largest privately commissioned sailing yacht to have been built; and certainly the largest one to be built in aluminum.

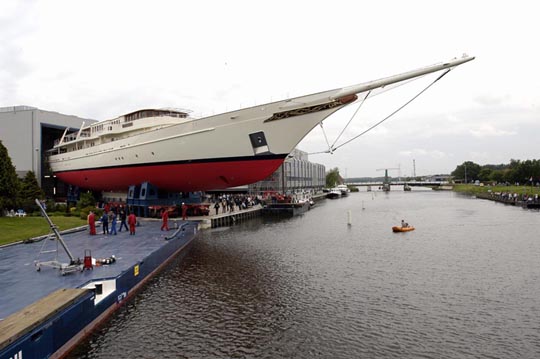

    Regardless of firsts, Athena emerged into the light of day on June 4, piggy backed from her temporary home on pairs of remote controlled hydraulic wheel sets. She continued her short journey as she was driven onto a 100m transportation pontoon that is locked to the quay side in front of the yard by a special docking station. After passing several bridges the floating parade will continue across Holland’s inland sea, the IJsselmeer for a dry dock launching in Amsterdam.

    With many onboard systems including engines and generators already tested, she will before her departure receive a 225 ton molten injection of lead ballast, critically placed in her keel according to the real weight obtained prior to her transportation. Besides easing the load on the wheel sets this final weight calculation will precisely locate the centre of gravity whereby meeting Naval Architect, Gerard Dijkstra’s ballast and trim requirements.

    Following her launch Athena will berth in Amsterdam and weather permitting, her three 60m Rondal masts with associated rigging will be immediately stepped. Fitted with in mast furling topsails and gaff rigged roll-away booms the rigging stage will be an exciting moment, bringing a sense of proportion to complete the visual profile of the yacht.

    Athena’s construction has tested and honed the management skills of the Huisman organization. Working for the first time with a team of outside industry specialists, the usual ‘under the one roof approach’ at the yard was extended to include teaming up with the likes of Heinen and Hopman, Vuyk engineering, Imtech, Akerboom and Cleton to increase capacity without increasing overhead.

    With her interior virtually complete the Pieter Beeldsnijder styling can at last be fully appreciated as protective covering gives way to paintings, tables and soft furnishings. And as carpets, lights and even music continue to fill the intimate spaces on board; Athena’s first light will soon become her first breath.

    It is hard to believe that whilst handover is planned for September following extensive sea trials that she is nearing completion. She represents the culmination of many hours of hard work by a dedicated team of craftsmen that should have pride as their middle names. Indeed Athena represents not only the efforts of the Huisman team but she is reflective of the skills and work ethic that keeps Holland on the map, being recognized as a leader in custom yachts.

    Time schedule

    Transport to yard quay onto barge.................June 2004
    Transport to Amsterdam and launching..........July / August 2004
    Testing, commissioning and sail trials.............August 2004
    Delivery...........................................................September2004

    For more information please contact us via e-mail at:

    yachts@****************

    Athena Specifications...

    Three masted Schooner Yacht designed by:
    Naval Architects Pieter Beeldsnijder Design (PBD)
    Gerard Dijkstra & Partners (GD&P)
    Interior Styling Pieter Beeldsnijder Design (PBD)

    Built by Royal Huisman Shipyard

    L.o.a. spars 90.00 mtr. (295.28 ft.)
    L.o.a. hull 79.25 mtr. (260.01 ft.)
    L.o.d. 77.04 mtr. (252.76 ft.)
    L.c.w.l. 60.52 mtr. (198.56 ft.)
    Beam max. (incl. rubrail) 12.20 mtr. ( 40.03 ft.)
    Draft (incl. keel) 5.50 mtr. ( 18.04 ft.)
    Mast height 60.00 mtr. (196,85 ft.)
    Bowsprit length 13.97 mtr. ( 45.83 ft.)
    Displ. c.w.l. ± 1.068 tons (2,354,497 lbs)
    Ballast ± 221.5 tons (488.316 lbs)
    Hull speed 18.9 knots

    Steering system Hydraulic power steering system
    1x SR662 FCP Tenfjord/Rolls Royce rudder motor

    Main engine 2x Caterpillar 3516B, 1492 kW (2000 HP) @ 1600 rpm
    Gearbox ZF 7540 NR CEW – Reduction 3,429:1

    Propeller installation 2x Wärtsilä Propulsion (former Lips) automatic variable
    pitch propeller, diam. 1600 mm, four blades with high skew

    Bow / stern thruster Bow Holland Roer Propeller 300-60 tunnel thruster,
    275 HP Stern Holland Roer Propeller 300 tunnel *retractable* thruster, 275 HP

    Tank capacities:

    fuel +/- 105.648 ltr.
    water +/- 29.215 ltr.
    grey/black +/- 5.530 ltr.

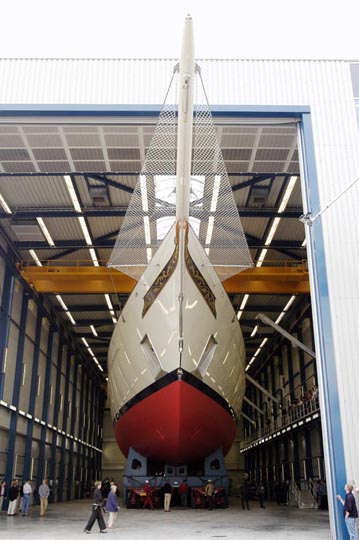

    The first picture is Athena leaving her berth place (or is that birth place) :D

    Attached Files:

  2. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Navigating her first turn, the pivot to swing her transom out of the shipyard building...

    Attached Files:

  3. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    The pointy end is the bow, right? :p

    Attached Files:

  4. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida

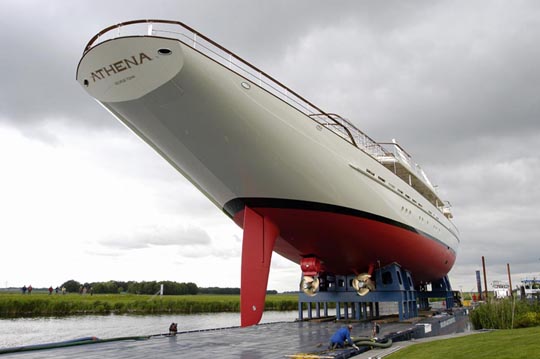

    How often do you see a twin engine sailboat? :eek:

    Attached Files:

  5. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida

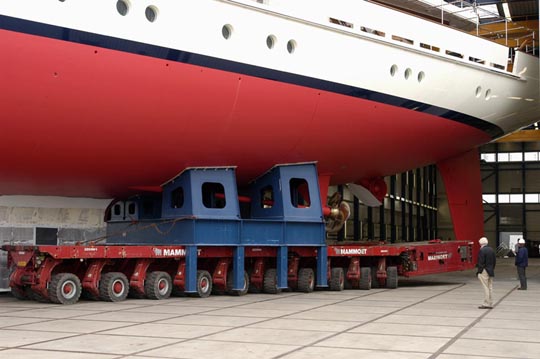

    Look just behind the props... a deployable stern thruster!!

    Attached Files:

  6. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida

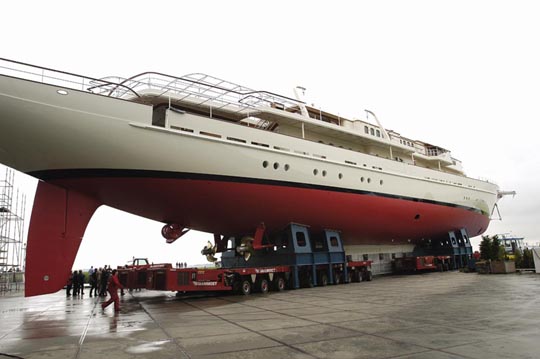

    Doesn't NASA's Space Shuttle use a contraption like this? ;)

    In this picture, you can clearly see the deployable stern thruster forward of the rudder. Neat technology!

    Attached Files:

  7. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Given the size of this monster, the aerial view was probable provided by a helicopter. :rolleyes:

    Attached Files:

  8. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida

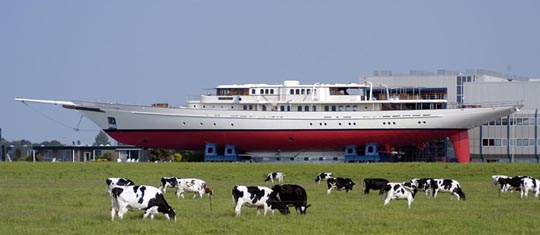

    And like every newborn... it needs lots of milk! :D

    Congratulations to Royal Huisman for resurrecting a wonderful era and giving life to a classic new yacht that will be the benchmark that others are measured by for decades to come.

    We'll look forward to the final photogaphy... if they get Athena *and* her masts to fit into a picture! :)

    Attached Files:

  9. palindrome

    palindrome New Member

    Joined:
    Jun 3, 2004
    Messages:
    18
    Location:
    Boston
    Beautiful. :D



    Any interior shots?
  10. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
  11. Henrik

    Henrik New Member

    Joined:
    May 6, 2004
    Messages:
    20
    Location:
    Hamburg / Germany
    for my opinion this yacht will be one of the beautifullest afloat for years......
  12. YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,353
    Location:
    South Florida
    Hi Henrik,

    A new yacht of this stature deserves a new word... beautifullest! :D

    When they pour 225 tons of ballast into her keel, she'll become... heaviallast. :rolleyes:

    All in fun! :)

    Carl
  13. Henrik

    Henrik New Member

    Joined:
    May 6, 2004
    Messages:
    20
    Location:
    Hamburg / Germany
    aye ... ok, I see .... next time I'll better write in russian. I didn't know any word in russian, but I think it will work like my english ....

    I promise, my german works much better.... but this changes after some bottles of wine....

    ... a day without fun is a lost day!
  14. firstmate_pete

    firstmate_pete New Member

    Joined:
    Jun 19, 2004
    Messages:
    5
    Location:
    Oriental, NC
    wow.....
    beautiful boat
