Playing CSI on a windlass failure

Discussion in 'Technical Discussion' started by C4ENG, Mar 27, 2009.

You need to be registered and signed in to view this content.
  1. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    It isn't my objective to make C4ENG look bad, he has done an excellent job without my assistance.

    As far as my looking bad, well, I guess I will just have to live with the reputation of being strident and less than tenderhearted with incompetent poseurs costing owners a fortune and putting the value of other yacht engineers in question.

    I would just as soon see them go away before they hurt someone.
  2. Capt Bill11

    Capt Bill11 Senior Member

    Joined:
    Feb 27, 2006
    Messages:
    1,458
    Location:
    Sarasota/Ft. Lauderdale FL
    You are assuming he had manuals. I've lost track of how many boats I've been on with no systems manuals. So going to the internet and asking advice from knowledgable people can hardly be called a poor choice.

    I never asked you to keep your opinion to yourself. I only tried to point out that there are ways to teach and inform without being condescending about it. And your are assuming he is getting payed a chief engineers wage. For all we know he's getting payed commensurate with his skill level.

    All true. But why not work at help the ones who want to learn become better engineers without the high and mighty attitude? And agian, we have no idea what he's getting payed do we?

    Nobody I saw was defending his ignorance or blaming others for it. And again, at least he was willing to admit it. Rather than just wade in and muck it up. More than I can say for some "engineers" I've met.

    I will agree that anybody who does not understand basic hydraulic systems should not call him or herself a chief engineer and except pay for that grade level. And if he really is over his head on this boat my guess is he will be packing his bags in not to long. But perhaps he's just weak in this one area. If so, no harm done in helping him along with his education, while at the same time pointing out the path to further knowledge in a constructive manor.

    Now of course if what he had posted was down right idiotic, he would have been fair game. :D
  3. corinthian99

    corinthian99 New Member

    Joined:
    Jan 12, 2006
    Messages:
    71
    Location:
    London, UK
    Returning to the basic point for a moment, C4ENG.

    You might want to examine all the other hoses fitted to those units because either way you slice it the pump shouldn't be capable of generating enough pressure to blow the hose. It could very well be that the swaging machine used hasn't been calibrated properly in which case all your lines will be in jeopardy. It could be just one poorly executed swage, but then again.
  4. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    Fair enough comment on the manuals. It is apalling how many boats lack proper documentation but again, whose responsibility is that? Going on the internet to a BBS instead of the manufacturer is a very poor choice of troubleshooting and repair strategies.


    As one with a few years teaching marine engineers through Unlimited C/E, I can assure you that I enjoy teaching the subject. As a working Unlimited C/E who regularly gets down in the bilges I can assure you I have minimal tolerance for those who claim the title but can't carry the load.


    He calls himself a chief, he works as a chief, if he is being paid he is overpaid. If he is working for nothing the owner is getting what he is paid for.

    He defended his ignorance by claiming he couldn't know everything and I read that as meaning he couldn't be expected to know how his boat works. He was very quick to blame the deckies for causing the problem and appeared to be looking for support in that conclusion, and for that alone I would fire him in a heartbeat. We simply can't afford that kind of crew.

    If he were a student he would receive patient and thorough tutelage. He would not be dispatched to an operating vessel to work unsupervised as a chief engineer.

    If only that were the only area. I guess you haven't read the dead genset thread where he mentioned the "charge leaking out." :D This illustrates electrical skill comparable to his grasp of hydraulics. Even the most open minded evaluator would be hard pressed to describe this fellow as merely "weak." If we were to apply the IMO definition of competence it would be easy to describe his vessel as unseaworthy due to lack of competent crew. The owner should hope that his attornies never have to argue otherwise.

    It struck me as idiotic and made him fair game to use as an example of the quality of people that some owners have to endure until they decide it's not worth it and sell the yacht.
  5. C4ENG

    C4ENG Senior Member

    Joined:
    May 19, 2006
    Messages:
    581
    Location:
    Ft Lauderdale
    Very good advise.. I did find a lot of loose fittings to tighten after I fixed the line that blew off. The line that blew off was in a very hard to reach location and it took every thing I had to torque down it properly. The boat is new, so I now conclude the failure due to an installation error from the ship yard.
  6. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Whatever the case of knowledge may be with C4ENG. None of this judgement and judging is beneficial to helping C4ENG with the problem he is having, nor is it beneficial to anyone else on this forum.
  7. corinthian99

    corinthian99 New Member

    Joined:
    Jan 12, 2006
    Messages:
    71
    Location:
    London, UK
    I'm not talking about loose; thats not the issue, if one swage fitting blew then suspect the rest. As for it being a new boat, well I suspect your troubles are just begun. Normally its one contractor that will knock up all the lines for the boat - one contractor meaning one swage machine and one technician. Wouldn't be an Italian build by any chance. Good luck :)
  8. C4ENG

    C4ENG Senior Member

    Joined:
    May 19, 2006
    Messages:
    581
    Location:
    Ft Lauderdale
    I know what you are talking about.. I ment to say compression fittings with the rings.. not the Italian compression fittings with the compression gun swage fittings that you can not correct if they compressed wrong,,... but only cut out and put something else inbetween while in the US (been there done that) This is a US build vessel.
    Sorry if I don't know the proper terms..some people think that I should :)
  9. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    Is this the type of reusable fitting you are dealing with?

    http://www.grainger.com/Grainger/items/2F505

    It has an outer sleeve with a coarse LH Thread that winds onto the hose first, the inner part winds into a fine RH threaded collar in the end of the sleeve.

    They can usually be reused a number of times if they are not physically damaged.
  10. 61c40

    61c40 Member

    Joined:
    Feb 15, 2009
    Messages:
    79
    Location:
    Great Lakes
    Hi All
    I searched for a Muir VCR 11000 and went to a Imtra site that doesn't list this windlass but has a vertical windlass series with fairly good drawings and prints it appears that they use a flange mount with o-ring to the motor but there is a pressure bypass that would protect the hoses/fittings if the are not defective . They are designed to be operated by deck crew / captain trainee's so they are usually idiot proof. With out being able to see this particular installation but knowing the usual design I'd vote for defective equiptment over operator error
  11. CaptPKilbride

    CaptPKilbride Senior Member

    Joined:
    Mar 16, 2004
    Messages:
    586
    Location:
    On the water
    I am a big fan of these field serviceable, re-usable type fittings.
    In the USA you can also find them through Parker.
  12. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    Page 14 -15 of this shows some pics and tech specs for this Unit

    http://www.muir.com.au/pdf/muir_brochure_mega.pdf

    It also seem they supply the Hydraulic Packs as well

    On Page 51: MASTER CONTROL HYDRAULIC POWER UNITS
    Comprising pump, motor, valve block (with
    pressure relief valve and pressure gauge),
    and oil reservoir. Various capacities
    available. Full technical specifications are
    available on request.

    Regardless of the position of the brake- on, off, partly wound on the system pressure should not ever get above the relief valve setting.

    The system should have been speced and built to operate at the maximum pressure plus a safety factor. Having the brake on would only make the system work at it's Max operating pressure not more so I tend to agree that a defective fitting, hose or system protection failure is the root cause not the Deck Department- As long as they were not allowed near the equipment with tools but hey that's a whole other thread on it's own :)
  13. 61c40

    61c40 Member

    Joined:
    Feb 15, 2009
    Messages:
    79
    Location:
    Great Lakes
    Nail on the head K1W1 ! you win!
  14. C4ENG

    C4ENG Senior Member

    Joined:
    May 19, 2006
    Messages:
    581
    Location:
    Ft Lauderdale

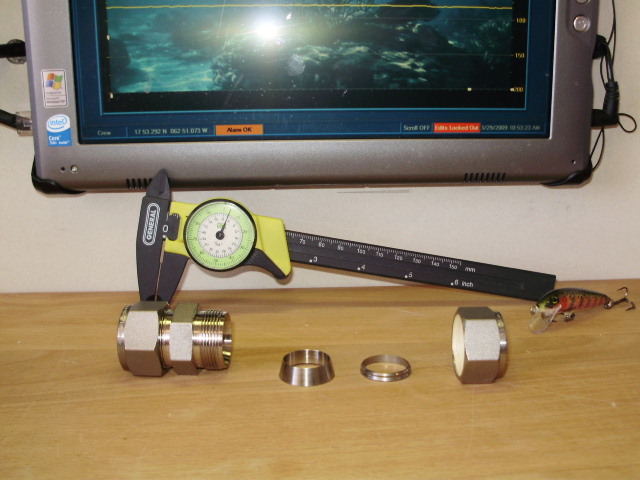

    This is the type of fittings used. Fortunately I had spares, but if I did not and had to order some from shore using the Vsat and sending in the G5 to go pick it up becuase the boss is on board we are not going any where untill it is fixed.. (I would had figured another way to get the anchor in if I couldn't have fixed the broken line)
    How would you refer to these types of fittings on the phone with some one and how would you order the right size? The ID of the rings in the photo is 3/4 inch, I am pretty sure it would be a 3/4 fitting.. unlike NPT fittings that are different when measuring ID's

    Attached Files:

  15. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Hi,

    That's a Swagelok Fitting, it's not a 100% reusable as the rings get compressed onto the pipe and can't be reused as is.

    The sizes is ofteh stamped onto the back face of the nut close to where the pipe goes in.

    They are used on solid pipe not flexible.

    As you have evidently found they can be a real bear to tighten up when there are a line of them close together and each one has been assembled and installed while there was not one other on each side if it.

    Have a look at this: http://www.swagelok.com/FittingInstallVideo.htm

    And here is everything you ever wanted to know, it will stop you suffering insomina.

    http://www.swagelok.com/downloads/webcatalogs/EN/ms-01-140.pdf
  16. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    Those who have worked with Swagelok fittings must be doing a lot of head shaking right now.
  17. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office

    It is the ferrules I am saying are non reusable not the two nuts or coupling body, they can be reused until the crevice corrosion can't be overcome with Silicone!!!
  18. C4ENG

    C4ENG Senior Member

    Joined:
    May 19, 2006
    Messages:
    581
    Location:
    Ft Lauderdale
    Here is an example of how I installed the swaglok fittings to repair the busted hydraulic line.. that should hold right?

    Attached Files:

  19. Marmot

    Marmot Senior Member

    Joined:
    May 20, 2007
    Messages:
    3,311
    Location:
    9114 S. Central Ave
    Sorry, I wasn't referring to your post K1W1 ...

    I should have quoted the "chief's" post where he suddenly discovered he somehow replaced a swagelok without even knowing what it was.
  20. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office

    I would be very wary of using that little assy in any way shape or form, here are the volumes and pressures of your windlass. No plastic hose even if fibre reinforced like the photo is designed to operate at anywhere these pressures nor is that Nylon fitting.

    Power Supply HYDRAULIC
    Input Power (KW) 7.5 7.5 -
    Hydraulic Flow (lpmin/USgpm) - - 30/7.9
    Maximum Flow (lpmin/USgpm) - - 55/14.5
    Pressure (bar/PSI) - - 140/2050
    Maximum Pressure (bar/PSI) - - 175/2500

    What has actually gone wrong with the system, has a pipe split or was it leaking at the fitting? Welding the pipe to the fillings would be a good alternative to the thing you show there.

    Do you have two Anchor Windlasses or are they both inter connected hydraulically?
