New paint job this winter for my 56

Discussion in 'Post Yacht' started by ESSRTEE8, Jun 23, 2016.

You need to be registered and signed in to view this content.
Page 3 of 3
  1. RT46, Jul 7, 2016
    #41
    RT46

    RT46 Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    1,058
    Location:
    Long Island, NY
    any idea what type of repair was or was not done to the gelcoat cracking before applying awlgrip?
  2. Capt J, Jul 7, 2016
    #42
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    No, I got involved with the boat a couple of years after it was done, i do know Post paid for it at the time
  3. Snap2098, Jul 18, 2016
    #43
    Snap2098

    Snap2098 New Member

    Joined:
    Mar 17, 2016
    Messages:
    1
    Location:
    Ocean city Md
    On my 56 all the cracks were grinded out then west system over them. Then Alexa seal was applied. The boat was painted at Jarrett Bay in NC.
  4. ESSRTEE8, Jul 18, 2016
    #44
    ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ

    Sorry to disagree with your assement, Viking had dealt with so many of these boats in this condition they know exactly what to expect. The job called for removal of all of the gelcoat from the rub rail up. They even have a set price per foot. So your incorrect.

    I was also told about a warranty verbally and thought having it in writing would be normal. Silly me.
  5. Bill106, Jul 18, 2016
    #45
    Bill106

    Bill106 Senior Member

    Joined:
    Jan 9, 2010
    Messages:
    390
    Location:
    Beaufort NC
    Actually you just confirmed my worst case assessment, complete gel coat removal. Viking (and Post) did indeed perform complete gelcoat removal on a lot of hulls and yes it is horribly expensive. I know, I've done a couple myself.
  6. ESSRTEE8, Jul 18, 2016
    #46
    ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ
    You've done them how? Are you a painter?

    My hull is fine, the house and flybridge mainly. Having rub rail up removed.
  7. P46-Curaçao, Jul 18, 2016
    #47
    P46-Curaçao

    P46-Curaçao Senior Member

    Joined:
    Mar 8, 2013
    Messages:
    734
    Location:
    Curaçao (CW), Hollywood (FL) and Amsterdam (NL)
    Just a guess, the house and Flybridge would cost you on Curacao less then $20K (Awlgrip)

    (They quoted mine for around 6k, when I remove all the stuff myself)
  8. captholli, Jul 18, 2016
    #48
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    Well, lets call Dock Wise and get it on down to Curacao!! That would save enough $$ to make it plausible. Plus he can go check out
    Spanish Waters and the yacht club! (spelling)
  9. captholli, Jul 18, 2016
    #49
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge

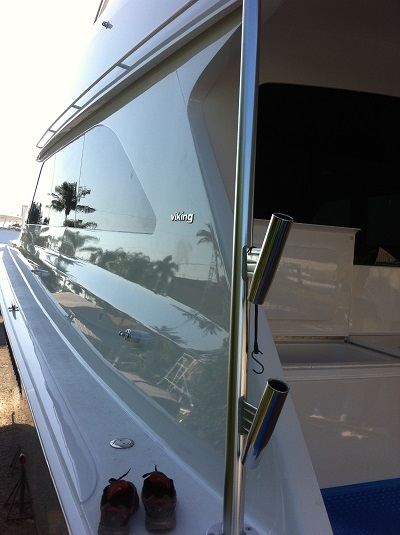

    2004 65' Viking convertible that the gel coat was stripped from the rub rail up and re-faired and painted with Kingston Grey Awl Grip 2000 and Snow White . Entire strip and top coat job was less than $115,000 plus consultancy fees and completed in two months time in Stuart, Fl. in 2015. OP was informed of this two weeks ago.

    Attached Files:

    Last edited: Jul 18, 2016
  10. ESSRTEE8, Jul 18, 2016
    #50
    ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ
    CaptH,

    How does the fairing hold up in freezing temps? Does it ever crack?

    Viking told me they try not to use too much fairing by sanding and not grinding the gel off. The spray hi build primer 25 mils thick, then start the sanding and then build again with hi build.

    Did they remove the gel on the entire boat, rub rail up? Cockpit, bridge, hardtop, etc....
  11. P46-Curaçao, Jul 18, 2016
    #51
    P46-Curaçao

    P46-Curaçao Senior Member

    Joined:
    Mar 8, 2013
    Messages:
    734
    Location:
    Curaçao (CW), Hollywood (FL) and Amsterdam (NL)
    Your spelling is OK, don't forget Barbara Beach on Sunday's...;-))

    [​IMG]
  12. Capt J, Jul 18, 2016
    #52
    Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,434
    Location:
    Fort Lauderdale
    I certainly don't see ANY Barbara's.....just lots of Bob's.
  13. captholli, Jul 19, 2016
    #53
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    Awl Fair and Awl Fair LW are epoxy based compounds that don't change properties for expansion, compression, thermal and tensile strength from minus 5 degrees to 68 degrees F. If the gel coat crazing is deep & severe enough that it extends down to the glass substrate than it really doesn't matter if your using a grinder with 40 grit or a 6 inch D.A. with 80 grit/ one method is a bit quicker than the other .

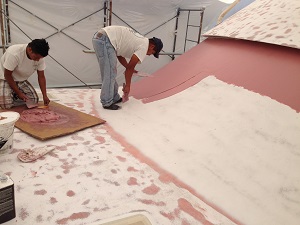

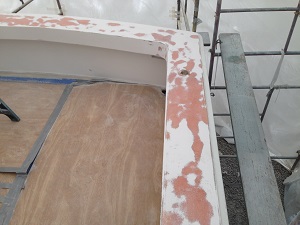

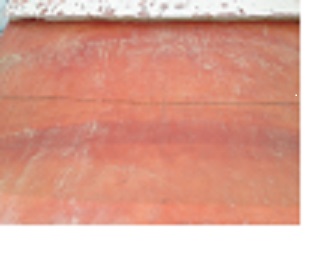

    The contractor that performed the work on the Viking took the gel coat down to bare glass where needed in large areas like the forward brow and then smaller areas from the rub rail up. They machine sanded all of the effected surfaces down to a few mils from going all the way to bare glass. The attached photos show the process. wherever you see the reddish color than that's bare glass. Any bare glass areas were coated with Hull Gard and then 545 sanded and then Awl Fair was applied and machine / long boarded smooth..

    Attached Files:

  14. Ormond Bert54, Jul 27, 2016
    #54
    Ormond Bert54

    Ormond Bert54 Senior Member

    Joined:
    Mar 29, 2009
    Messages:
    470
    Location:
    Ormond Beach, FL
    The finished product looks very nice.
  15. ESSRTEE8, Aug 4, 2016
    #55
    ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ
    What paint did they use on the topside?
  16. captholli, Aug 4, 2016
    #56
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    Jonathan,
    You and I have had this conversation via email and I believe that you know good and well what system was used. You know what the price was and who performed the work & where the work was done right down to what my consultancy fees were. Why are you keeping this thread alive by asking questions that have been answered previously in private?
  17. ESSRTEE8, Aug 4, 2016
    #57
    ESSRTEE8

    ESSRTEE8 Member

    Joined:
    Jul 30, 2013
    Messages:
    112
    Location:
    56 POST in Monmouth Beach NJ
    I thought others might be interested in knowing. The boat looks great BTW.
  18. bsd222, Aug 5, 2016
    #58
    bsd222

    bsd222 New Member

    Joined:
    Oct 1, 2012
    Messages:
    22
    Location:
    new orleans
    I am the owner of the above mentioned Viking,If you have the gelcoat crazing I recomend you use the yard and painter that was recommended with Captholli as your coatings manager.If you want to ensure the success of your project,go with a team thats been there,done that......
  19. captholli, Aug 6, 2016
    #59
    captholli

    captholli Senior Member

    Joined:
    Jan 4, 2010
    Messages:
    1,164
    Location:
    In The Bilge
    Thank you BSD.
