New Millennium 140' - you've gotta see this!

Discussion in 'General Yachting Discussion' started by YachtForums, Aug 23, 2004.

You need to be registered and signed in to view this content.
Page 1 of 2
  1. YachtForums, Aug 23, 2004
    #1
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida

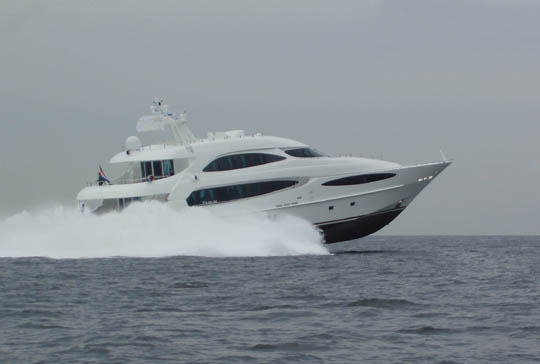

    Either someone is desperately searching for the trim button or this thing's got more acceleration than the Space Shuttle! My thanks to John Schmiemann at Millennium Yachts for supplying these pics as soon as the boat re-entered orbit.

    Edit: YachtForums Review of the new Millennium 140' with 50 images can be seen here...

    Millennium 140' Superfast Superyacht

    ***​

    Attached Files:

  2. YachtForums, Aug 23, 2004
    #2
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida

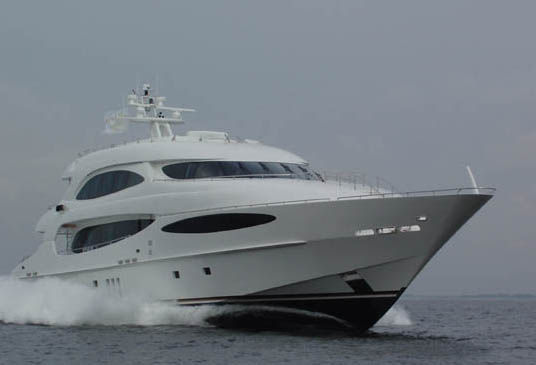

    Looks like they slowed down to their cruising speed, which is 45 mph!!

    Attached Files:

  3. John B, Aug 23, 2004
    #3
    John B

    John B Senior Member

    Joined:
    Jan 28, 2004
    Messages:
    94
    Location:
    New York
    Looks like it could use some trim tabs.

    Do they make tabs for a 140' yacht?!?
  4. brianwill, Aug 23, 2004
    #4
    brianwill

    brianwill New Member

    Joined:
    Jan 11, 2004
    Messages:
    75
    Location:
    Texas
    Looks like they'd need 10' x 12' sheets of kevlar and 3000 psi hydraulic rams to make a set of trim tabs for this beauty. That's quite a bow rise--I wonder if it was on plane or accelerating?
  5. YachtForums, Aug 23, 2004
    #5
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    I've seen some other pics of the 140 running in the 40-50 knot range. It runs straight and level. The picture above must have been from launching off a swell, however the water looks relatively calm in that picture. There's certainly enough horsepower under the hood to pull a wheelie, given the 75 mph this 140' monster is expected to hit.

    Powered by a combination of Man/BW diesels and Lycoming jet turbines, all driving Lipps water jets, that kind of horsepower in conjunction with jet pumps just might produce acceleration that results in a moon-shot bow rise. :D

    I can't wait to go on the sea trial!!!!
  6. Nismo350Z33, Aug 30, 2004
    #6
    Nismo350Z33

    Nismo350Z33 New Member

    Joined:
    Aug 16, 2004
    Messages:
    37
    Location:
    USA
    Look at the air it's getting in the first picture!!! I wouldn't want to be on the bow at that time, haha.

    I read in one of my yacht magazines that it's range is 750 miles when at top speed (15,000 gallon tank capacity). That's 20 gallons a mile! :eek:
  7. marcusra, Aug 31, 2004
    #7
    marcusra

    marcusra Member

    Joined:
    Aug 29, 2004
    Messages:
    40
    Location:
    SWEDEN

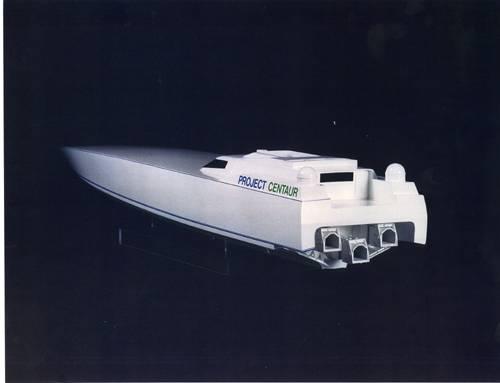

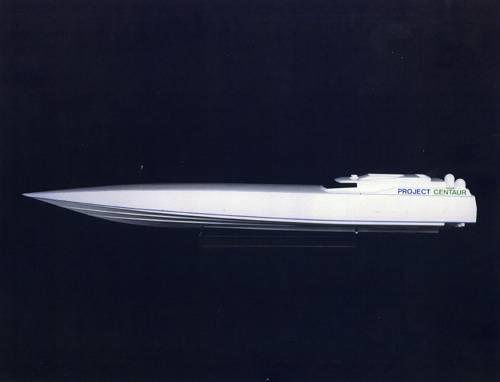

    185' / 150 knots & TRANS-ATLANTIC RANGE!!!

    What about this one!!!

    185 feet, 150 knots and TRANS-ATLANTIC RANGE!!!


    Some other facts:
    ________________________________________________________________
    Builder: Centaur Designer: Langlois & Nadeau

    Dimensions


    LOA: 185' LWL: 156' Beam: 30' 1"
    Displacement: 560000 Draft: 7'

    Engines


    Engine(s): GE Gas Turbines Engine(s) HP: 19000 Engine Model: LM 1600

    Max Speed: 150 Knots

    Tankage


    Fuel: 25000 Water: 5000

    Hull Material: Aluminum
    _________________________________________________________________

    Not to much of a flyingbridge maby... but there's plenty of room under the foredeck I'm shure!!

    What about beating every CIGARETTE and APACHE powerboat
    .....whit Your MEGA-YACHT??


    Forgot to tell you.... This is not just a fantasy-project:

    IT'S for sale right now!!

    Current Price: US$ 35,000,000
    Located in Ft. Lauderdale, FL


    (Yacht-world.com)

    Attached Files:

    Last edited: Aug 31, 2004
  8. YachtForums, Aug 31, 2004
    #8
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    150 mph? Highly speculative and theoretically questionable. Jet pumps grow exponentially less efficient as speed increases....

    Jet pumps are marvels of concentrated thrust up to certain speeds. Above these speeds (and this varies with hull design, weight and horsepower) jet pumps aerate. They do not run fully loaded at higher speeds. They ventilate, thus inducing air into the equation. Because the amount of water available for acceleration (remember water can not be compressed only accelerated) at higher speeds is reduced, due to the introduction of air, there is less water volume available to convert to thrust.

    At certain speed thresholds (again, this varies), the hull will develope so much lift, that the vacuum created by the pump is no longer capable of bringing in the volume of water necessary to maintain adequate thrust, due to hydrodynamic lift shifting further aft and water trying to by-pass the intake gullet at higher speeds, which contributes to increased ventilation.

    An enormous amount of vacuum must be generated to offset increased aeration, as speed increases. However, that same vacuum is creating downforce on the hull. This results in increasing hydrodynamic drag, further compounding the scenario.

    Adding further complications to this fantasy.... 3 jet pumps. As speed increases, and thus hull lift increases, the outboard edges of the hull (or chines) run dry. The outboard pumps would loose efficiency very quickly.

    The model is as far as the concept is going... sorry.
  9. brianwill, Aug 31, 2004
    #9
    brianwill

    brianwill New Member

    Joined:
    Jan 11, 2004
    Messages:
    75
    Location:
    Texas
    Sure wouldn't want to hit something at these speeds. I wonder what the hull layup is.
  10. YachtForums, Aug 31, 2004
    #10
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    Hey Brian!

    The listing sheet quotes aluminum. When you think about it, it's really the only logical choice. Steel would be too heavy and fiberglass would require a mold, which would be cost prohibitive, unless possibly... it was going into production. That's not likely to happen! :D :eek:

    To marcusra... thanks for finding this and posting it! :)
  11. marcusra, Sep 1, 2004
    #11
    marcusra

    marcusra Member

    Joined:
    Aug 29, 2004
    Messages:
    40
    Location:
    SWEDEN

    - 150 knots = 174mph is questionable allright!!! This speeds are usually reached by highpower speed-cats on lakes with absolute flat water!!? Very Hard to imagine those speeds in 40-65ft seas in the middle of the Atlantic!!!? -

    ////////////////////////////////////////////////////////////////////////////////////////////////////////

    I'm not quite sure about your first part??

    Propellers grow exponentially less efficient as speed increases,
    BUT i would say that waterjets does the opposit, they grows more efficient when the speed increases!! (But they are useless at low speeds)
    This because waterjets takes its water from the layer just under the hull.
    This layer of water has a thicknes depending on lots of parameters, like Hull-lenght deplacement, shape of the hull etc.
    The big point is that this layer relative to the hull has no speed (like it's following the hull). So the waterjet always accelerates zero-speed water through the jet. But a propeller has to accelerate water that has the speed of the boat (coming against the boat) to increase its speed!!!


    Then I'm sure a big problem for this yacht is if the intakes leave the suface of the sea.
    This problem is very clear when you for example ride a watercraft (SeaDoo etc.) They goes faster with more people on them, because the intake to the jet stays under the water for "longer" periods then? Smallest wave in great speed and it lifts of and gets air through the jet = speed drops and the engine gets lots of RPM (not sure of the tecnical word... OVERRIDE maby??? ) A good thing is that normal engines usually got "override"-protection.

    The question is: Does Gastubines have this type of equipment installed???
    Last edited: Sep 1, 2004
  12. YachtForums, Sep 1, 2004
    #12
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    Well... if you say so. What do I know about this stuff! I'm just the administrator here. However, I looked inside a jet pump once. All kinds of things going on there! ;)

    Just out of curiosity... where did you learn this? :eek:
  13. AMG, Sep 1, 2004
    #13
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    From what I know, there has never been a waterjet faster than a prop boat. Generally the jets lose efficiency around 65-75 knots, probably due to lack of water through the intakes, and also that there hasn´t been a demand to develop waterjets for boats faster than that.
    To build a boat like the pictured you can use composite as well as aluminium, a mold is not necessary, but the price tag of USD 35 m will not last long in any case if it should include turbines and whatever will drive it forward even if the speed requirements were downrated to a more realistic 100 knots.
    Without having the figures of Destriero right now, I think she was more expensive than that and she had a top speed somewhere just over 70 knots...
  14. Nismo350Z33, Sep 1, 2004
    #14
    Nismo350Z33

    Nismo350Z33 New Member

    Joined:
    Aug 16, 2004
    Messages:
    37
    Location:
    USA
    I know the Miss Budweiser hydroplane uses a helicopter turbine, but is connected to a shaft with a prop. They've been known to go near 200 mph. I don't think it would work in the case of the 150' yacht because it would weigh too much (the hydroplanes are basically wood and fiberglass).

    Also, it might go that fast if it used thrust from turbines instead of water jets. Russia used this idea when they built the Ekranoplans that were the size of airplanes, but could travel on water at 400 km/h (about 250 mph!). They skimmed the surface of the water and didn't penetrate it as much as a regular boat would. I think this concept would only work on this yacht if it had wings to provide downforce or lift when necessary. http://www.gizmohighway.com/transport/ekranoplan.htm

    -Al (wants an Ekranoplan :) and a hydroplane for good measure :D )
  15. YachtForums, Sep 1, 2004
    #15
    YachtForums

    YachtForums Administrator

    Joined:
    Dec 22, 2002
    Messages:
    20,375
    Location:
    South Florida
    You are both right AMG and Nismo...

    ... and I say this because I know a little more than Jessica Simpson on the subject. ;)

    I spent 15 years in high speed jet pump development working for Ameriquest Technologies (a Department of the Navy funded research group), Lockheed and Bombardier. During my tenure with Ameriquest, most of my work was concentrated on high speed jet pump development, specifically in the speed echelons we're discussing.

    I developed a number of new technologies along the way, including.... intake gullet enlargement/reduction systems, dual-stage axial flow pumps, reflex impeller and stator technology, variable geometry venturis, surface piercing jet pump drives and a variety of thrust vectoring systems.

    Contrary to a previous post... jet pumps are capable of providing superior thrust and acceleration, due to their ability to encapsulate (shroud) water and accelerate this flow through a venturi (a venturi is an accelerator), but they DO grow less efficient with increased speed.

    That being said... there are designs that have proven favorable for high speed applications, although none of them have ever been made commercially available.

    While most of our research was done on a considerably smaller scale than the new Millennium or this "Ventaur Venture", the principles remain the same. I won't expand too much on this... ;)
  16. marcusra, Sep 2, 2004
    #16
    marcusra

    marcusra Member

    Joined:
    Aug 29, 2004
    Messages:
    40
    Location:
    SWEDEN
    For your curiosity I learned this from a cuple of books, when I was to write about the subject in college!!

    I don't think I understod all the tecnical English at first!? SO the main problem with jets, is that they grow less efficient, because of the air getting into the system at high speeds???

    Writing this I remember another fast Yacht, The 114' "Gentry Eagle". It was a project to beat the world-reccord cross the atlantic... It actually did in 1992 (62hrs 7min with topspeed of 69.6 knots!!) Nowdays it's refitted to a yacht with topspeed of 63knots. Anyhow this yacht has two V16 Diesels conected to waterjets... but the main powersource for high speeds, it's gasturbine is connected to an Arnesson suface-pearcing drive! Before this I thought a lot of why they used this configuration?. Parhaps it's just to get the power into the water in high speeds then??
  17. Nautilus, Sep 2, 2004
    #17
    Nautilus

    Nautilus New Member

    Joined:
    Sep 2, 2004
    Messages:
    2
    Location:
    Finland
    Some drag boats do use waterjets and achieve speed over 200 knots.
    But those boats do not need optimum fuel efficiency :D

    So i do believe that it is possible to build a yacht that has top speed of 150 knots.

    But that centaur design does look like it's going to have problems getting water inside those outboard jets when at speed.
  18. AMG, Sep 4, 2004
    #18
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    I found some figures of Destriero;

    She is 220´long and 42´wide
    Displacement 1.000 tonnes
    Engines 3 x 17.500 hp GE gas turbines with KaMeWa waterjets
    Max speed 66 knots
    Fuel 800.000 litres, Water 3.000 litres
    Hull in aluminium
    Range 3.600 NM at 54 knots...

    There is something telling me that 150 knots is out of reach...
  19. marcusra, Sep 5, 2004
    #19
    marcusra

    marcusra Member

    Joined:
    Aug 29, 2004
    Messages:
    40
    Location:
    SWEDEN

    You're right on that one. That's for sure!!



    Saw that you are located in sweden to!!
    Parhaps you're a member of "KMK" ?? (KMK:U member myself)
  20. AMG, Sep 5, 2004
    #20
    AMG

    AMG YF Moderator

    Joined:
    Jul 26, 2004
    Messages:
    5,375
    Location:
    Sweden
    Hi Marcusra...

    I used to be a member of KMK and KMK:r in the past. I guess that you became a member in 1997 and I was there between 1968 and 1994... ;)
    By the way, today I was at their harbour and saw a drag/skiboat passing with a turbine and I think it had waterjet. I was first looking for a helicopter because of the sound, never heard something like that from a boat before. Maybe we have a 150-knot boat at our backyard... :cool:
    Last edited: Sep 5, 2004
