Miss Pearl Davit Progress report

Discussion in 'Post Yacht' started by Barney Hauf, Jul 6, 2015.

You need to be registered and signed in to view this content.
  1. Barney Hauf, Jul 6, 2015
    #1
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach
    image (1).jpeg

    image (2).jpeg

    image (3).jpeg

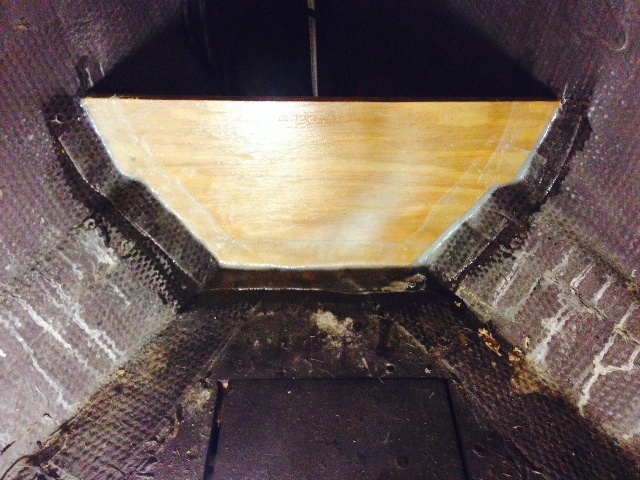

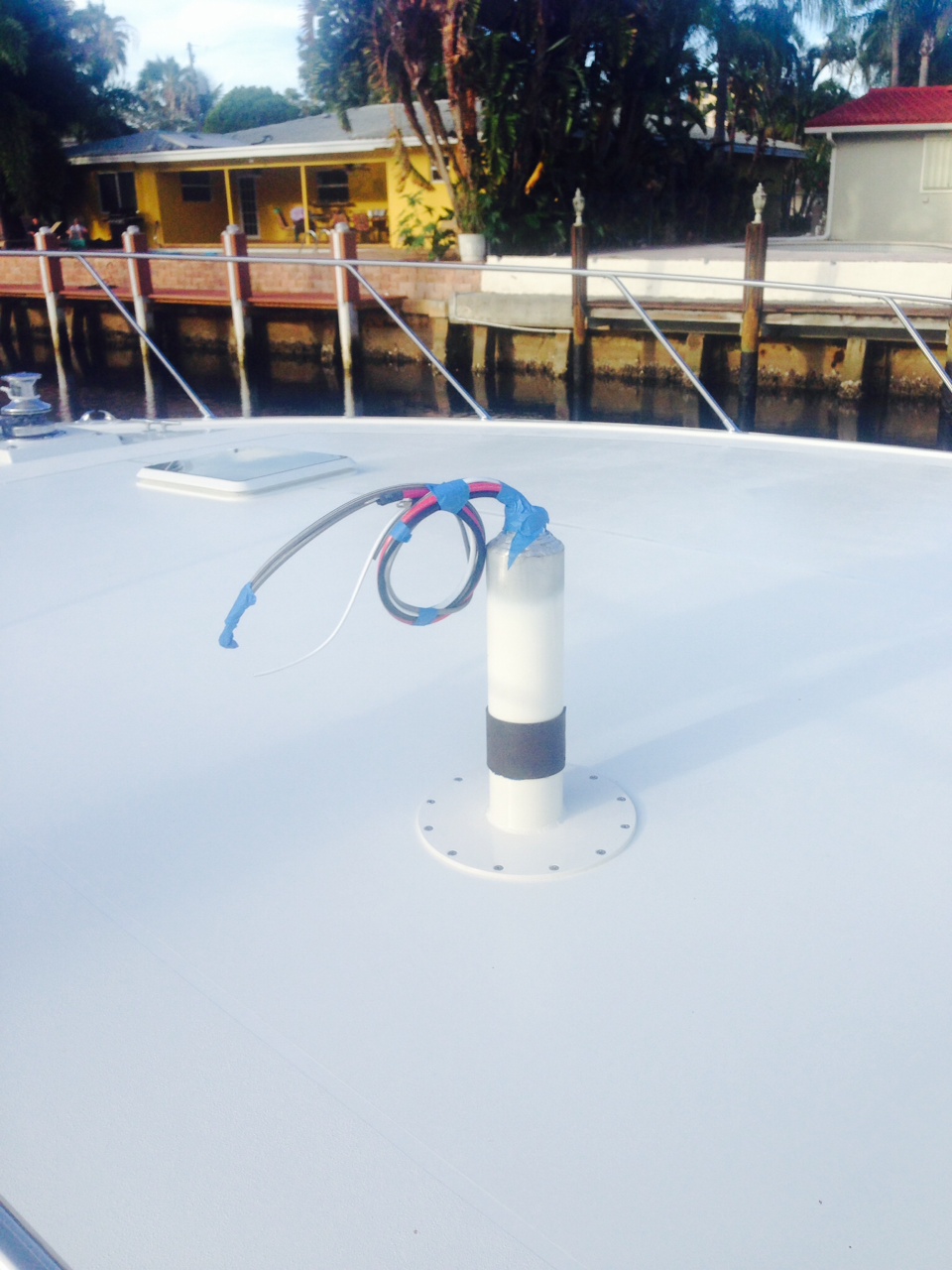

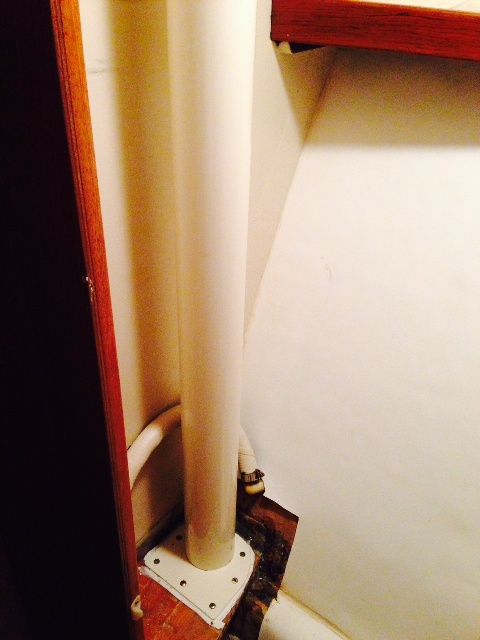

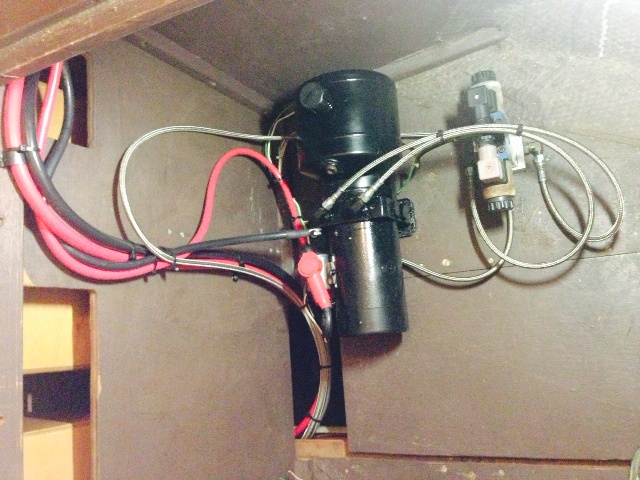

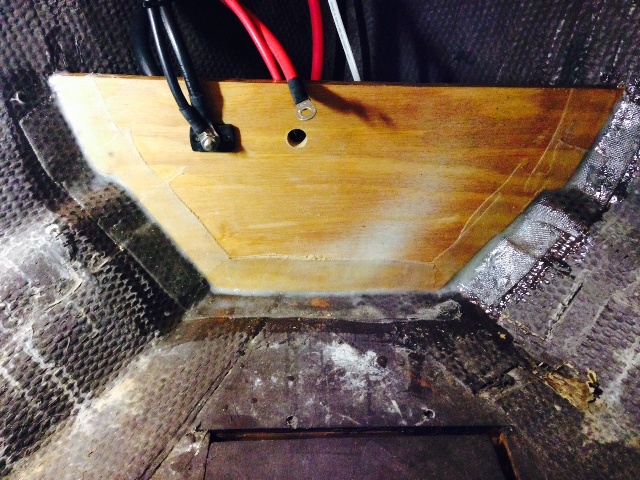

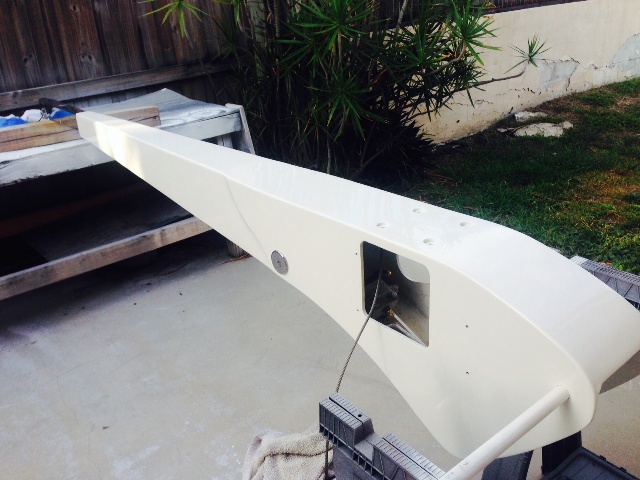

    No finish work complete yet so still pretty untidy :(. But these are a few pics of the work in progress. Bought a used Nick Jackson Mini Hydraulic 1000 and gave it the once over. Glassed in a shelf just above deck level in the port side locker of the master state room. Glassed in a little bulkhead in the forward part of the compartment under the bed in the Master. 4/0 primary cables go from ER to thru bulkhead terminal studs under the bed and distribute current for davit and windlass. Hope to be done next weekend!

    Attached Files:

  2. Barney Hauf, Jul 6, 2015
    #2
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach
    image (5).jpeg

    image (6).jpeg

    image (7).jpeg
  3. Davidoc, Jul 7, 2015
    #3
    Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    242
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    Looks fantastic! Great work. Does the forward extension move manually or is it tied into the hydraulic system?
  4. Barney Hauf, Jul 8, 2015
    #4
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach
    Thanks!! The extension is polished stainless steel. It moves manually and locks into a couple positions with a pin... The only hydraulic functions are boom up and down. Winch in and out functions are electric.
  5. Davidoc, Jul 8, 2015
    #5
    Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    242
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    You were lucky to find this one. If you hear of another one please let me know. Thanks and hope you post a picture when she is working.
  6. Barney Hauf, Jul 14, 2015
    #6
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach

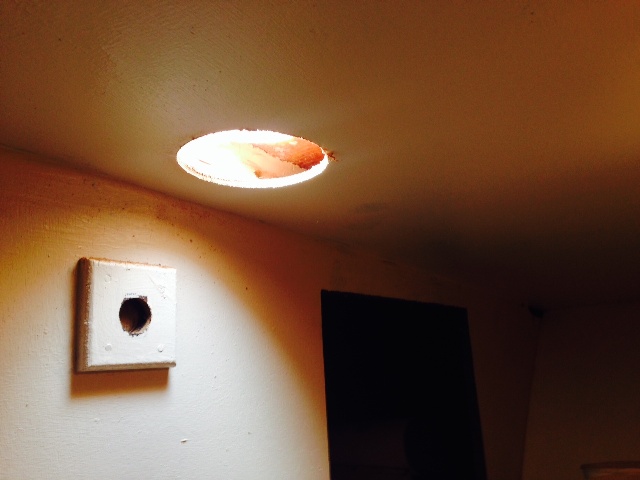

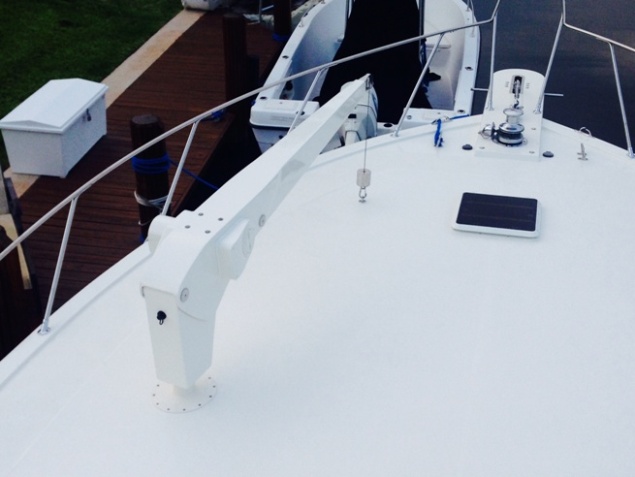

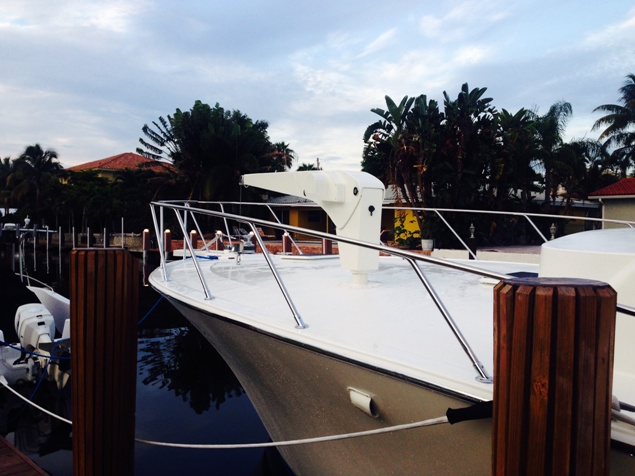

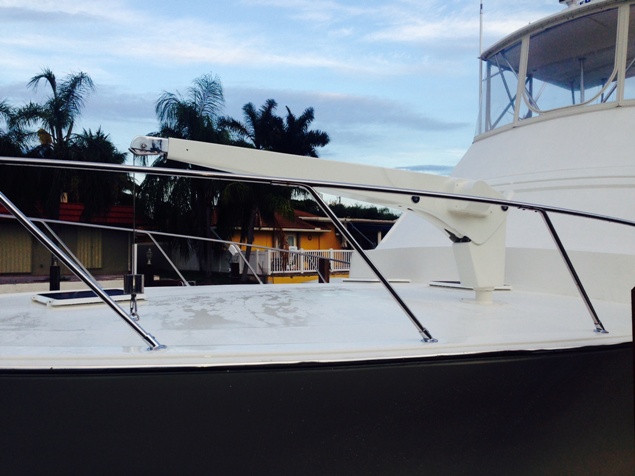

    Done on the foredeck!! Unfortunately I had to cut into my new headliner to thru bolt the hold down for the hook. But I patched the hole in the headliner with a piece of 1/8" door skin covered in the same headliner material and I am the only person it will bother :)

    davit 1.JPG davit 3.JPG davit 6.JPG
  7. mwwhit1, Jul 14, 2015
    #7
    mwwhit1

    mwwhit1 Senior Member

    Joined:
    Jan 19, 2006
    Messages:
    239
    Location:
    Jersey City NJ\Boca Raton FL
    Coming along great!! I noticed your bow rail bases look new. Did you find direct replacements or have them replated? Mine have no chrome left and would like to replace with stainless. I want to match the screw holes which vary by brand. Thanks.
  8. Barney Hauf, Jul 15, 2015
    #8
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach
    Thanks!! I had them replated. FYI...Chrome guys are proud of their work.... #bigbucksforchrome
  9. Barney Hauf, Apr 8, 2016
    #9
    Barney Hauf

    Barney Hauf Member

    Joined:
    Apr 20, 2015
    Messages:
    79
    Location:
    Pompano Beach
    Finally fitting the chocks for the tender! A Highfield 310 Classic aluminum hull RHIB with a Suzuki 15

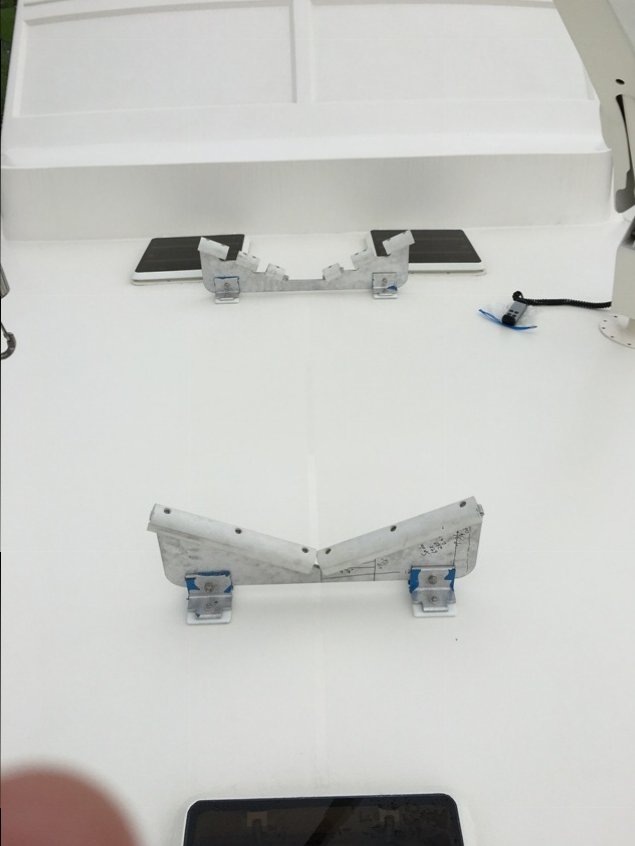

    Daniel from Chock Masters in Miami came to template using the set of chocks pictured below equipped with nylon pads on the bottom so the deck didn't get scratched up (I have no affiliation with Chock Masters but great guy and very knowledgeable in my opinion)

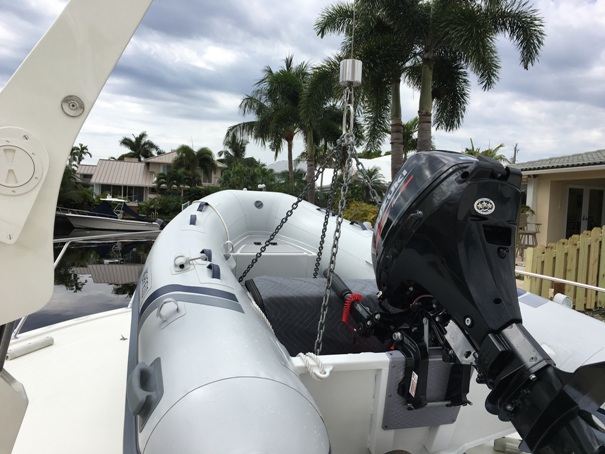

    Tender sitting in place to measure the proper angle and placement for the chocks


    Tender looking forward


    Davit standing by and ready for a busy summer!! :)

  10. Davidoc, Apr 9, 2016
    #10
    Davidoc

    Davidoc Senior Member

    Joined:
    Aug 29, 2005
    Messages:
    242
    Location:
    Winter:Delray Beach, Fl Summer: Bahamas
    Fantastic job!!! I hope you do a video of how she works. I have to push my davit around the deck to position the dink over the rail. Everything is fine unless you are in a swell and not tied to a dock. It gets a little dicey sometimes. Let me know your Bahamas schedule and maybe we can connect. I hope to make June........
