Lrg Fiberglass exhaust bellow under cockpit question

Discussion in 'Cabo Yacht' started by CSkipR, Jan 5, 2013.

You need to be registered and signed in to view this content.
  1. CSkipR, Jan 5, 2013
    #1
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    I noticed a rust stain on the port outboard side under the cockpit fishbox so removed fishbox. The large exhaust cylinder appeared to have a screw in the lower rear portion of the cylinder probably to drain water where freezing is an issue. My guess. The stainless screw (sm bolt) has just about rusted through and cannot easily be removed. Going to put a patch of 3m 5200 over it to stop dripping and in case screw rusts out completely it won't leak. In reviewing the 3m5200 specs it says temperature should not be over 190 degrees and I don't believe this gets that hot. Can anyone provide approximate temperatures. Thanks
  2. Capt Ralph, Jan 5, 2013
    #2
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,726
    Location:
    Satsuma, FL
    Hey Skip
    Is the screw below the water line? Can you get to it? I'd scuff and clean it up, put a nice epoxy patch over it. 5200 is good stuff but better sand winched between things.
  3. MBevins, Jan 5, 2013
    #3
    MBevins

    MBevins Senior Member

    Joined:
    May 23, 2008
    Messages:
    1,172
    Location:
    Windsor On. Canada
    I'd agree with Ralph. 5200 is really a 'glue' it needs to be compressed between two surfaces. Clean the area and apply the appropriate epoxy or fiberglass resin.
  4. CSkipR, Jan 6, 2013
    #4
    CSkipR

    CSkipR Member

    Joined:
    Aug 16, 2008
    Messages:
    965
    Location:
    New Smyrna Beach, Fl
    Yes I am sure the screw is below the waterline and it is accessible. Will do an epoxy patch or marine tex.
  5. Capt Maritime, Jan 16, 2023
    #5
    Capt Maritime

    Capt Maritime Member

    Joined:
    Jun 16, 2022
    Messages:
    113
    Location:
    Virginia Beach, VA
    How difficult was it to remove the fish boxes? The ones on my 35 Cabo were easy to remove, however the ones on the 40 are installed differently.
  6. CaboFly, Jan 17, 2023
    #6
    CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    259
    Location:
    Seattle
    Each box has 4 screws. One in each corner. Remove them as well as macerator pump hose. Remove fish box lid hardware inside lip. Razor knife as much caulk out as you can. Next I very carefully place a bottle jack under the rear corner that you have access to. With a thin chunk of wood place pressure under bottom lip of box. Go back to razor duty.

    Fun stuff. Do it once. Do it right. Boxes on my 48 are out now. The 40 is a bit tougher with prop pockets reducing access.
  7. Capt Maritime, Jan 17, 2023
    #7
    Capt Maritime

    Capt Maritime Member

    Joined:
    Jun 16, 2022
    Messages:
    113
    Location:
    Virginia Beach, VA
    Thanks for the lessens learned regarding the 40 with the prop pockets. I can see the (4) little screws in each corner and all the caulk. Razor duty and patience and I will get them out. As mentioned,I did the same on my 35 Cabo express which gave me full access to the exhaust line and strut fasteners. I also replaced the fish box gaskets while I had them out.

    It sounds like after all the caulk is removed, and macerator pumps disconnected, I should be able to break the seal between the fish box and deck connection, with a little hydraulic help, aft to forward.
  8. DOCKMASTER, Jan 17, 2023
    #8
    DOCKMASTER

    DOCKMASTER Senior Member

    Joined:
    Feb 26, 2012
    Messages:
    1,408
    Location:
    Ketchikan, Alaska
    Wonder why Cabo made those so hard to remove? With a macerator pump and other service items below you would think they would be easier to remove and access underneath. Especially since they thought everything else out so nicely. I was in Virginia last week and was fortunate enough to get a tour of Capt. Maritime's 40' Cabo. Beautiful boat that is really laid out well and well designed. Too bad they sold the Cabo brand :(:(
  9. Capt Ralph, Jan 17, 2023
    #9
    Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,726
    Location:
    Satsuma, FL
    Not only sold, dead and buried by the last owners.
    SFBs.
  10. CaboFly, Jan 18, 2023
    #10
    CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    259
    Location:
    Seattle
    With the 4 screws if you set the fishboxes on some type of gasket and didn't use silicone or caulk it would be easy to remove. It is all the surface area around perimeter on flange that really makes it tough to break free when properly bedded. I normally use 4000 UV.
  11. Capt Maritime, Jan 18, 2023
    #11
    Capt Maritime

    Capt Maritime Member

    Joined:
    Jun 16, 2022
    Messages:
    113
    Location:
    Virginia Beach, VA
    Do you know what type of caulking Cabo used at new construction back in 2005? I'm hoping the 18 year old caulking lets go with out too much force.
  12. CaboFly, Jan 20, 2023
    #12
    CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    259
    Location:
    Seattle
    Feels like silicone.
  13. Capt Maritime, Jan 22, 2023
    #13
    Capt Maritime

    Capt Maritime Member

    Joined:
    Jun 16, 2022
    Messages:
    113
    Location:
    Virginia Beach, VA

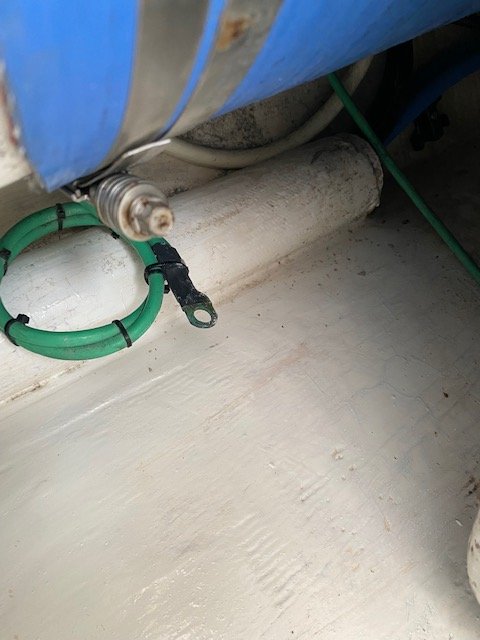

    Yes it was a silicone type caulking. It appears as though the port fish box was removed in the past as it came out very easily. After removal I could tell the exhaust silencer had been removed and re-installed, likely as interference to replace the hydraulic lines to the steering rams. Next to identify where this common bonding connection should be connected. I'm planning to install new hatch seals and new gas lift support struts as well.

    Port fish box removed.jpg Port fish box commond bonding.jpg
  14. CaboFly, Jan 23, 2023
    #14
    CaboFly

    CaboFly Member

    Joined:
    Aug 24, 2018
    Messages:
    259
    Location:
    Seattle
    Cabo may have provided that for tower leg should a tower be installed after delivery.
