Emergency help/info needed!

Discussion in 'Chris Craft Roamer Yacht' started by Capt.JDavis, Dec 23, 2016.

  1. Capt.JDavis

    Capt.JDavis New Member

    Joined:
    Nov 11, 2010
    Messages:
    18
    Location:
    Moss Landing, CA
    I am trying to find out what is the BOTTOM PLATE thickness of my Aluminum 1975 Roamer 60'...

    I've read somewhere that the side plates are 3/16" of 5086 Alum. and the bottom plate was 1/4" of the same on smaller model Roamers but I don't know if the same thickness were used for the Roamer 60' or not?

    Question was raised by USCG inspection.

    Any quick help is appreciated.

    [Email and Phone nr are deleted, use PM!]

    Thanks in advance and Merry Christmas all!
    Last edited by a moderator: Dec 23, 2016
  2. alloyed2sea

    alloyed2sea Moderator

    Joined:
    Jan 28, 2004
    Messages:
    871
    Location:
    Alex, VA
    not the liveliest internet boat club
  3. SeaEric

    SeaEric YF Historian

    Joined:
    Jan 28, 2007
    Messages:
    1,360
    Location:
    out on the dock
    A 1966 57' Roamer that I sold had 5/16" 5086 plating on hull sides and bottom. Confirmed with audio-gauge testing.
  4. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,174
    Location:
    Vancouver BC
    Was 4086 not the std for marine ala. then ?
  5. dennismc

    dennismc Senior Member

    Joined:
    Jan 29, 2009
    Messages:
    1,174
    Location:
    Vancouver BC
    Sorry, misspoke 5086 is excellent
  6. alloyed2sea

    alloyed2sea Moderator

    Joined:
    Jan 28, 2004
    Messages:
    871
    Location:
    Alex, VA

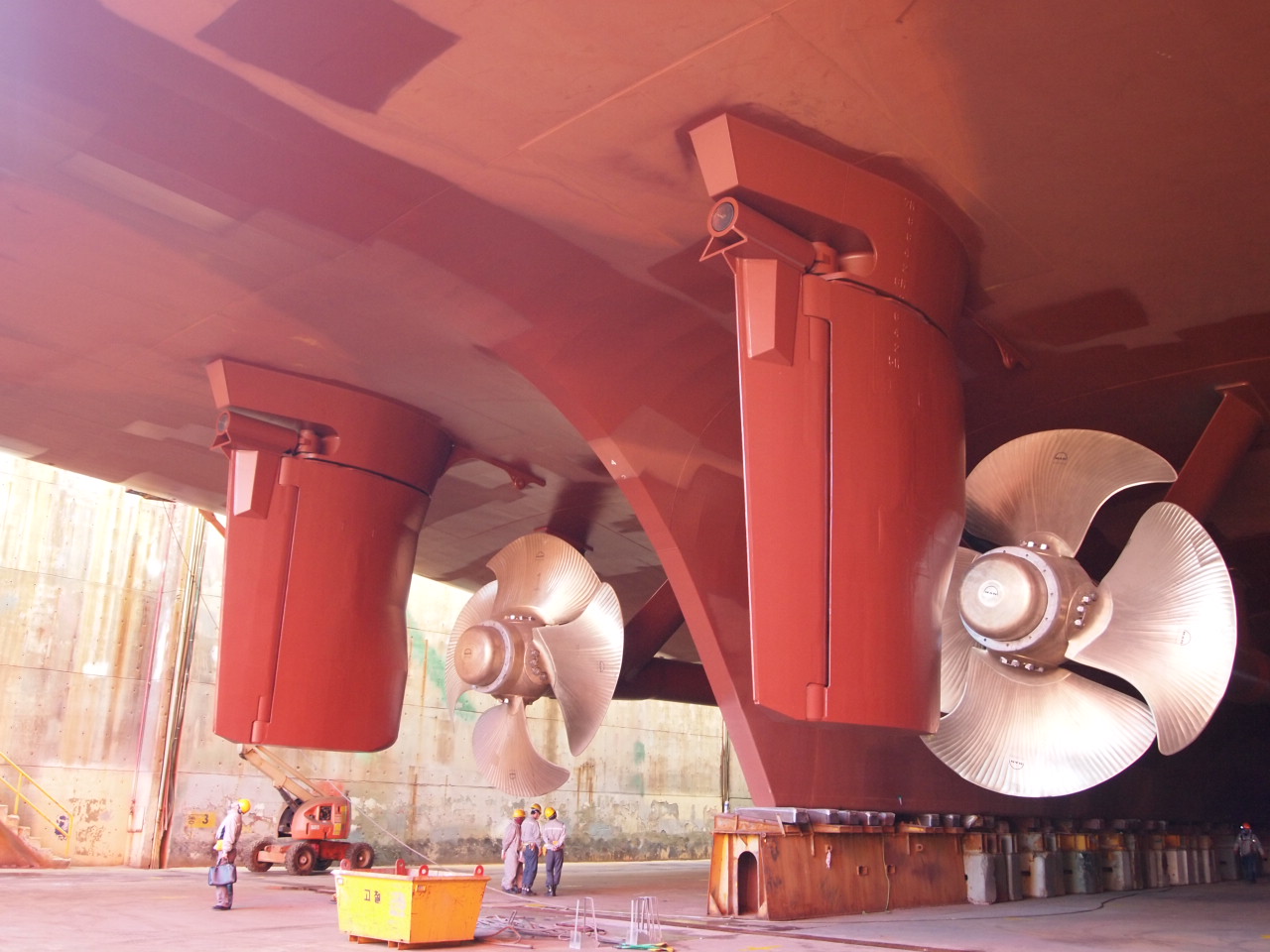

    And remember, the rudders are mild steel (not SS) very close to 5086 on the galvanic scale (reduces corrosion).

    Attached Files:
