Detroit Diesel Starter set-up

Discussion in 'Engines' started by RVinMICH, May 16, 2016.

You need to be registered and signed in to view this content.
  1. RVinMICH

    RVinMICH New Member

    Joined:
    May 16, 2016
    Messages:
    2
    Location:
    Great Lakes
    I have a 1968 Matthews Sports Fisherman Convertible with 8V53 series turbo Charged. My question is regarding the electrical wiring. The current system uses 2 Solenoid type relays on the main line from the batteries to the starter. I would like to update the system as to not require the 2 solenoid type relays, Does anyone have experience with this? This is a 12v system (all other manufactures that use DD 8V53's use 24 or 32 volt systems)
  2. Bahma

    Bahma Member

    Joined:
    Apr 10, 2013
    Messages:
    61
    Location:
    Man o War Cay Abaco Bahamas
    My Bertram 38ft flush deck cruiser was powered with 8V 53 naturals with a single starter solenoid on the 12 VDC starter.

    Never has any trouble starting, although there was a paralleling switch which boosted the starting amps.
  3. dsharp

    dsharp Senior Member

    Joined:
    Aug 23, 2009
    Messages:
    240
    Location:
    lake jackson, tx
    You will just need to get an ignition switch that is rated for the proper amperage and a heavier wire to the solenoid. You use two solenoids to make up for voltage drop. A picture would help. It may be a solenoid to parallel the batteries.
  4. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    The heavy current that the starter solenoid requires can not be supplied easily from the ER, to the helm, back to the ER and starter.
    A lighter current drawing solenoid is used to supply short run, high current & voltage to the starter while getting it's lower current signal from the helm.

    You need to leave it as designed and installed.
  5. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Surely the wires to the helm are only carrying the control voltage and a low current necessary to energize the coil which closes the contacts in the solenoid not the full voltage and current required to turn the engine.
  6. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL

    The heavy current that the starter solenoid requires;
    not the starter motor.

    wires to the helm are only carrying the control voltage and a low current necessary to energize the coil;
    Energize the OPs first coil (solenoid), close it's contacts between the battery and the starter solenoid. That then provides the starter solenoid with all the current it needs to engage the pinion and hold it's own heavy contacts closed for the starter motor.

    Like a wired remote control. Just lighter wires and heat at the helm.

    If there was any confusion, I hope that clarifys my previous text.

    Still; I recomend to leave it as designed and installed.
  7. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    The solenoid only requires the amount of current to energize the coil and pull the magnet. It is nowhere near the current the starter itself requires. That passes thru the contacts not the coil itself.

    Look at your genset or car with a pre engaged starter, there will be a little tiny wire between the two terminals on the solenoid, this is connected to your ignition and will not carry anywhere near the current the starter requires but seems to work just fine doesn't it?
  8. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    No
    The Detroit starter solenoid draws big current. It swings and holds the pinion in place also holding the rather large contacts down turning on the starter.
    There is a rather large return spring the coil pulls against also.
    Detroit starters do not use an auto engage / disengage pinion as on a newer small car.
    Remember the OLD Chevy starters?
  9. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    All the DD's I have seen use a pre engage type starter.

    You should really spend a bit of time when you have some spare time and work out how one actually works as you are obviously confused at to which bits do what
  10. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    This typical DD starter has a solenoid on it to engage the pinion and make the electrical connect to the motor.
    This solenoid winding /coil will draw current to over come a return spring, hold the pinion in place and hold the internal contacts down while it starts it's engine.
  11. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    Rather than trying to do, whatever you are doing, Would you care to contribute to the thread and let the OP determine what the best answer for him is?
    What are your thoughts on keeping the extra solenoid?
  12. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office

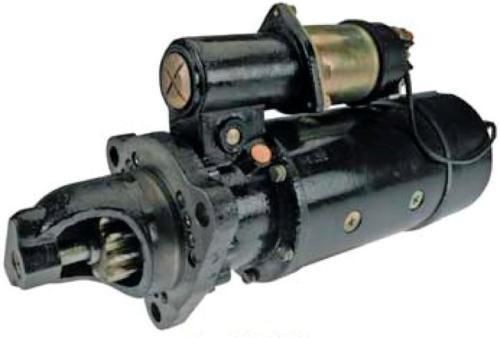

    The starter shown is a pre engaged type starter, the picture looks very much like one on Amazon.

    You have described how a solenoid works. The solenoid contacts carry a large current which is the load caused by the starter, the solenoid itself ( the windings that form the electromagnet) carry very little in comparison.

    There is no reason that that starter can not be run with an extra solenoid working as a relay to limit the current in the switch wires or run directly from the switch if the cable is sized to suit the load.

    In case you missed it, this is the point I have been trying to get across since my first post on this subject.
  13. Capt Ralph

    Capt Ralph Senior Member

    Joined:
    Sep 8, 2004
    Messages:
    12,647
    Location:
    Satsuma, FL
    On a 12Vdc system, it does draw some current (I do not know the numbers in Amps). This is probably why there is already a factory installed second solenoid.

    I could not tell.
  14. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    Why are you trying to re-invent the wheel. What you have is what Detroit Diesel felt was necessary, it works and is a reliable setup, so why change it?
  15. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    I would not say the OP is trying to re invent the wheel. He/She might well just want to tidy up and modernise the installation. This is something that is relatively easy to achieve if you understand what the components do and take this into consideration in your planning.
  16. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    It's pretty tidy now. The 2 solenoids are mounted right on the motor in an area that is not a problem. What the OP is doing is searching for a solution to a problem that in this case does not exist.
  17. K1W1

    K1W1 Senior Member

    Joined:
    Sep 30, 2005
    Messages:
    7,388
    Location:
    My Office
    Are you familiar with the actual vessel the OP has? It might have left the factory like that but by now it could have had any number of sticky fingers fooling with it.
  18. Lepke

    Lepke Member

    Joined:
    Dec 26, 2015
    Messages:
    123
    Location:
    US West Coast. Cruise NW Passage to Alaska.
    Kinda late into this, but without wiring diagram or photos, I would say if it ain't broke, don't fix it.
  19. baltimore bob

    baltimore bob Member

    Joined:
    Sep 22, 2013
    Messages:
    314
    Location:
    Baltimore, Maryland
    Leave it alone. By the time the voltage makes it to the helm, through the switch and back to the solenoid there is a voltage drop. It may work for a time, but if you have anything less than a fully charged battery, you WILL get failure to start due to insufficient voltage to pull that big solenoid in. You can maybe get around that by using a ridiculously heavy wire from the battery to the switch and back but why?
  20. Capt J

    Capt J Senior Member

    Joined:
    Jul 11, 2005
    Messages:
    14,432
    Location:
    Fort Lauderdale
    No, I'm familiar with the factory D.D. starter wiring setup which he described that he has, mounted on the motor.
