Kajan · 05-07-2010, 02:15 PM

First report after 10 minutes of clicking around in Rhino… WOA!
This is definitely going to take some time, time I don't have at the moment, I’m afraid.

Don’t expect anything anytime soon

AMG · 05-07-2010, 02:31 PM

..Same experience I had, almost got a stroke! Then my hard drive gave up and Rhino was gone...

Right now I am writing to Adobe in the Free Freehand petition, we must get this program updated, by them or anyone so we can buy new computers. It must cost Apple and others a lot of money when an application stalls due to monopoly behavior...

http://freefreehand.wordpress.com

atomare · 05-07-2010, 03:12 PM

Quote:

Originally Posted by Kajan

First report after 10 minutes of clicking around in Rhino… WOA!
This is definitely going to take some time, time I don't have at the moment, I’m afraid.

Don’t expect anything anytime soon

Yes, 3d takes some time to get the hang on it and 10 minutes is definitely not enough ... lol ... if you are serious about learning it I would suggest to first do some of the basic Rhino tutorials, to get to know the basic functions and then use it on one of your projects. That´s the fastest way to learn ... I would think that in a month or two you could show us one of your ships in 3d... though rendering is a completely different story from modelling. ... To keep it simple and fun for you I would still suggest to do some top views of your designs and maybe get someone else to model it

.

To AMG, ... I know that one get´s to love ones software ... and if they would stop to produce my tools I would also hang on to what I have right now

. But I was wondering if you ever gave Inkscape a fair chance? Since it is free I thought at first "Can´t be for professionals." But after all it is a quite effective vector program, that even I can use. ...

I tried Illustrator and couldn´t get around at all and I must admit, I tried freehand and like Kajan with Rhino after 10 minutes of clicking I thought, well that isn´t it for me. ... just a thought with Inkscape, but as said before, ... I understand, that once you are in love with a tool, there is no other

Kajan · 06-11-2010, 04:49 PM

This is one of the designs from the ”bow study” a while back, taken a bit further.

The tender garage in the bow has plenty of space for one or two 30ft. crafts, a couple of jet skies and if you have a hard time leaving your favorite sports car ashore, don’t! There’s room for a car as well. The height of the garage from the water level makes it easy to drive the car on to most docks. The floor dimensions of the garage are 10x7m. The overall beam is 11,3m or 37ft.

Having the tender garage in the bow leaves plenty of space for the aft beach and club in connection to the sauna and gym area a couple of steps down through the large entrance in the stern.

The balconies, there are two on each side, contributes to the airy feel of the layout and as you might have noticed by now, I tend to make my windows quite large as well in order to enhance the contact with the sea even more.

Kajan · 06-25-2010, 04:43 AM

Top view with limited detailing, just to get an idea...

YachtForums · 06-25-2010, 05:04 AM

Beautiful! Nice symmetry and balance. I see a little of Carinthia VII's sheer line. The superstructure fashion plates are particularly interesting. The shape places a nice accent on the lines of the boat, but they look like they would be cosmetic only, not structural. Still, nice work!

Kajan, I think it's time for a YF feature on your work. If you will send me hi-res renders on each of your drawings, along with some details such as specs and designer impressions for each render, we'll get a splash page feature in the works for July.

I'm still in Amsterdam and will not return to the states until Monday, June 29th. Have a heavy work load upon returning, but if you can get the materials over to me some time next week, we'll get it into the schedule.

Kajan · 07-03-2010, 12:59 PM

Quote:

Originally Posted by YachtForums

Beautiful! Nice symmetry and balance. I see a little of Carinthia VII's sheer line. The superstructure fashion plates are particularly interesting. The shape places a nice accent on the lines of the boat, but they look like they would be cosmetic only, not structural. Still, nice work!

Thanks Carl! I had some time left this morning and wanted to see if some of the lines could be altered in order to get an Explorer. It might work.

atomare · 07-03-2010, 03:21 PM

Great Kajan, the explorer looks really nice, I also like the rusty color of the hull. The one thing you should really change though is this wingstation. For my taste it looks to attached, instead you should try to integrate it more into the shape of the yacht. However, two thumbs up

.

Yacht News · 07-04-2010, 12:01 AM

In the lovely feature of Mike Kajan coming on to the end I see some members of the "Family Tree" and the 28-foot coupe, does make me wonder...I see Lars design in it for some reason...and I like it!

The 48-meter "Canvas" I can't help but think that looks like a design off the boards at Trinity. It looks like a slightly classic version some of their recent launches. The windows to the main saloon and sky lounge onthe upper deck and overall shape..nice!

Kajan · 07-04-2010, 01:22 AM

Atomare, you are absolutely right regarding the wing stations. Not sure if the change came through in the 2D. While at it, I upgraded the mast and the coloring scheme aft some.

Kajan · 07-06-2010, 03:53 PM

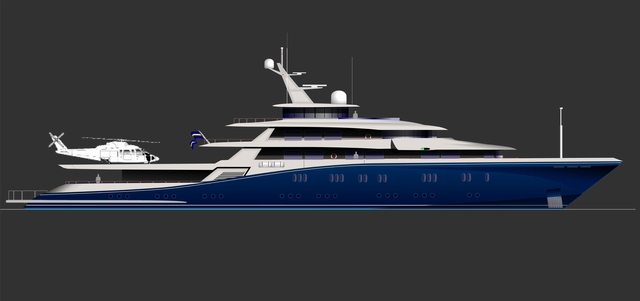

My old 72m Classic concept gone more Classic.

Yacht News · 07-06-2010, 04:04 PM

Nice, a design that could easily be built. I can see those portholes would be underwater regularly. The forward deck overhang just below the bridge looks like it would take some fabricating to build but I am not an expert in that field... Looks good overall though!

Kajan · 07-06-2010, 04:15 PM

Quote:

Originally Posted by YachtNews

Nice, a design that could easily be built. I can see those portholes would be underwater regularly. The forward deck overhang just below the bridge looks like it would take some fabricating to build but I am not an expert in that field... Looks good overall though!

Thanks, YachtNews! The overhang is about 4ft. and the distance to the water from the portholes are 3.3ft. =1m.

sunray09 · 07-22-2010, 07:05 AM

Quote:

Originally Posted by Kajan

Hi everyone!

Mike

Dear Mike, I would love to see some one design a retractable Helideck on the aft of any yacht. In an ideal world it would be completely invisible until extended. You could use the extra space for Party's etc.
I have seen the pool designs on Giga Yachts..but the extendable deck within a deck design would make the helipad option available to more designs. Most aft sundecks are vast teak wastelands so as above so below. Sandwiching in an extending deck Cantalivered or supported could be done with a little effort..at the press of a button..a 60ft extension out over the stern..perfect for a Helicopter or what ever takes your fancy. What do you think? Or anyone

K1W1 · 07-22-2010, 07:52 AM

Quote:

Originally Posted by sunray09

.a 60ft extension out over the stern..perfect for a Helicopter

Hi,

How do you plan on giving the extension enough residual strength to withstand the loads imposed on it by the landing and takeoff cycles of a machine suitable fort a yacht that size?
