[Kajan]

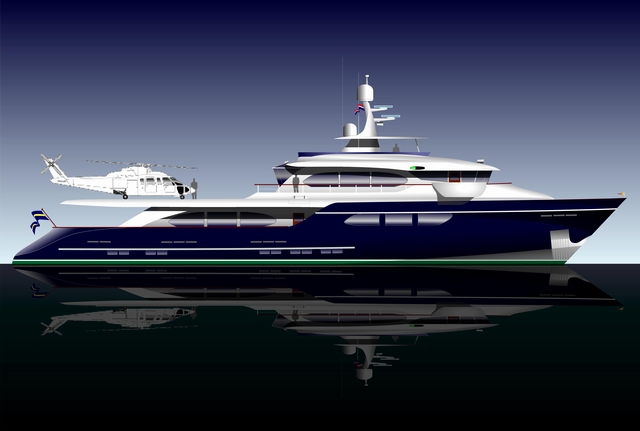

...with some minor modifications.

[Yacht News]

Interesting Kajan! I don't like the colours personally but the design is nice!

[Kajan]

Originally Posted by YachtNews

Interesting Kajan! I don't like the colours personally but the design is nice!

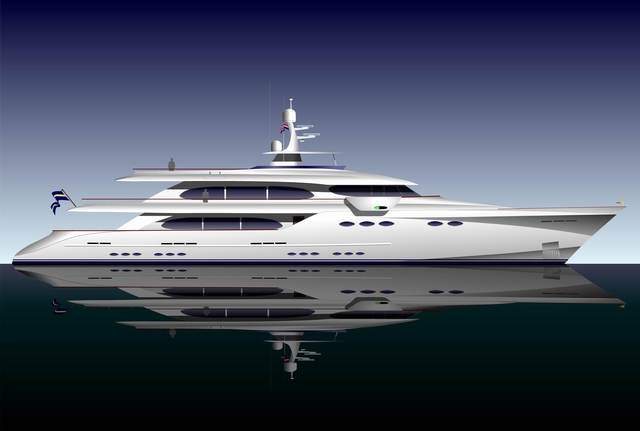

...perhaps in white, stretched 5m?

[Yacht News]

Yep, that is much better!

[Kajan]

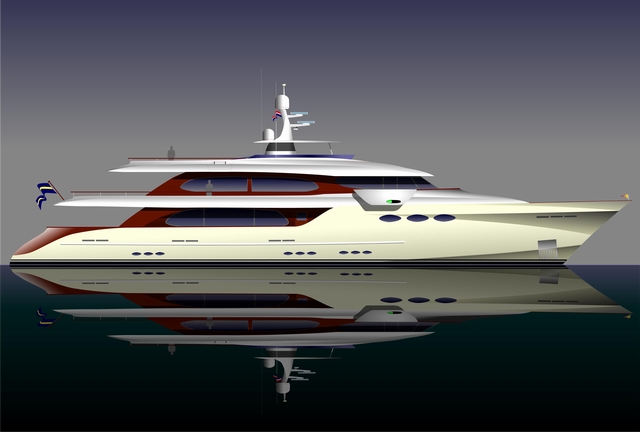

Most of the lines borrowed from the 53m concept above.

[Kajan]

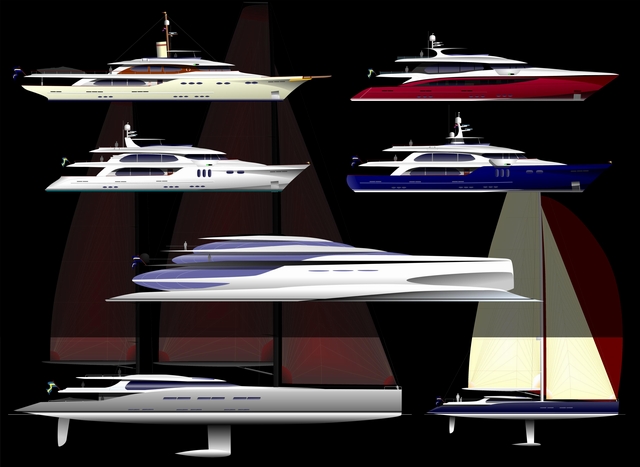

…in size comparison.

[Kajan]

I’m planning a series of Explorer yachts in the 50m range starting off with this 53m.
Again, most of the lines from the previous 53m concepts.

[SVDesign]

I have a single question : when will you jump to 3D ?
I'm sure the result would be interesting

[Kajan]

Originally Posted by SVDesign

I have a single question : when will you jump to 3D ?
I'm sure the result would be interesting

I’m afraid the time needed to learn, really isn’t on my side. I would need a crash course.

[Kajan]

Aft House Explorer.

[Emerson]

I really like the aft house explorer.

[Kajan]

Originally Posted by Emerson

I really like the aft house explorer.

Thank You, Emerson!

[84far]

Kajan, I'm about to buy a program called Rhino and the render program to suit it called V-Ray. Off the shelf it will cost $1900AU (approx), student price is a lot cheaper. There's also courses that you can take part in, which I think take 3 days (third day is rendering).

The good thing about doing the boat in 3D is so you can see if a object or angle can work, or if the cabin is to long or short. The amount of times I've had to go back to the drawing board because of that, well I've lost count .

Anyway, they are affordable, and with your talent I don't think it would be a waste of your time. Cheers

Far

Originally Posted by 84far

Kajan, I'm about to buy a program called Rhino and the render program to suit it called V-Ray. Off the shelf it will cost $1900AU (approx), student price is a lot cheaper. There's also courses that you can take part in, which I think take 3 days (third day is rendering).

The good thing about doing the boat in 3D is so you can see if a object or angle can work, or if the cabin is to long or short. The amount of times I've had to go back to the drawing board because of that, well I've lost count .

Anyway, they are affordable, and with your talent I don't think it would be a waste of your time. Cheers

Far

This is 100% right. I don't know Rhino, i've just seen couple of times, but never used it. VRay makes woooonderful things also. It is easy with 3D. Actually i would say 4D is better, but then 3D is a very good approach. I made my yacht proposal at Catia V5 R17 1:1 300MB. It was a good experience. But then FAR is totally right, for couple tousand dollars you can have some download software in your PC. Courses costs much more. But you can learn also with things like Skechtup that is free. Not a good software for yacht design and modelling but you can make your trys. It is good for buildings, but as ships for decks is more or less the same, maybe you can start with 'boxes' ones to see. Anyway all new 'cruisers' are just boxes, so you would not be going wrong with tendencies at all. VRay works well upon it for Renderings, and top ones. If you have such abbility and talent, maybe you find you as good as in 3D. It has 1000 billion things in market. So after doing all those 2D, maybe you could try something really new. 3D shows you many positions to see virtually a simulation all details you like to transmit in your design. 2D shows only things 'flatted'. And everytime you can make 2D profiles from 3D top views you know whatever you want to still show a tstep behind. Just screen shots then, really very easy to do. The best i've heard is Alias but this costs really 50 kg bucks to have it, really expensive for just the 'blue bloods'. Not every common man.

If moderator wants to delete or move badly for somewhere position this comment be really freeeeee.. i don't care anymore.

AS said immense many times, i just look to help the guys with some tips, but do then your own...

[Kajan]

Far, MKM and SVDesign, I agree that 3D would be interesting to try out.
I’ll download a demo of Rhino to see how far the demo gets me.
…to be continued

In the mean time, I hope you guys don't mind if I post some more 2D concepts.
