[Cabisko]

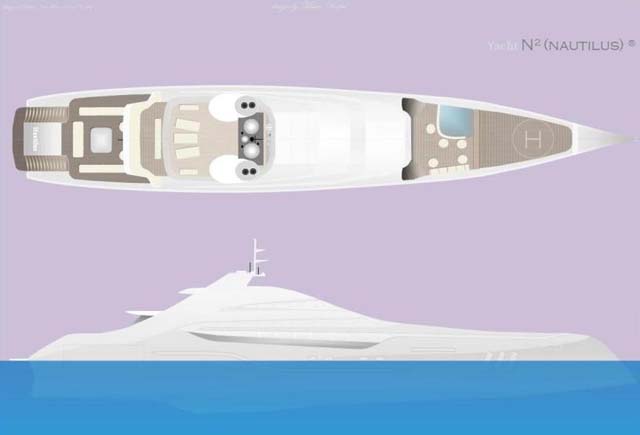

I´m new here and probably or rather certainly my first design won´t be good. I don´t have any knowledge about yacht design however I had looked many yachts and I decided make my first yacht. I´d like to hear your opinion about my first attempt. As I said this is my first designed yacht so I dont know which software to use..and as well my english isn´t the best. Thanks for all replies.

[Apache2k]

Looks very nice but you could work a bit more on the contrast of the ships hull.

[PropBet]

Not bad for a first whack. Would be nice to see some more contrast / detail to the hull / profile.

[Apache2k]

There are alot of free and good software, try GIMP or OpenOFFICE (Draw)
Sure if you want to spend some money then there are alot of commercial ones too. But mho these do the same job for normal use.

[YachtForums]

Hi Cabisko and welcome to YF. Glad your putting your work in front of our community. I'm certain wisdom will follow.

Before uploading any more renderings, please read our rules on image sizes. Our mods notified me that your previous attachments were removed because they exceeded the size limits outlined. Please keep images under 640 pixels in width.

Thanks!

[Cabisko]

Originally Posted by YachtForums

Hi Cabisko and welcome to YF. Glad your putting your work in front of our community. I'm certain wisdom will follow.

Before uploading any more renderings, please read our rules on image sizes. Our mods notified me that your previous attachments were removed because they exceeded the size limits outlined. Please keep images under 640 pixels in width.

Thanks!

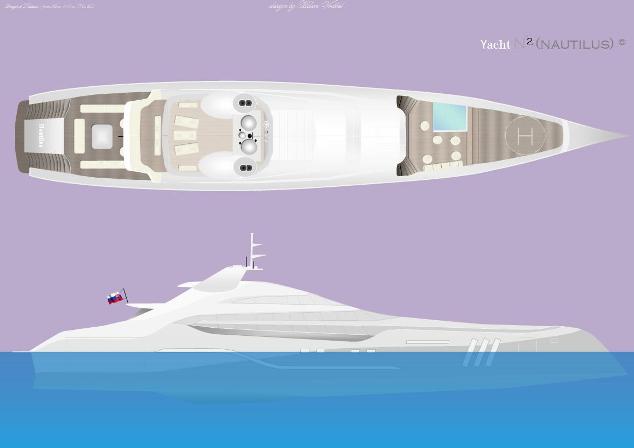

I think this is right both in resolution and in contrast..but in original size it´s much better..

[Apache2k]

Looks much better, try to make the windows darker?

MODS:
In some places it says that the max picture size is 540px and in some places 640px. Maybe in the uploading window there could be a reminder of the right max. size.

['RoundTheHorn]

Looks like "A" with the edges rounded off.
http://www.yachtforums.com/forums/bl...ter-sigma.html

[Cabisko]

yes..my yacht is similar to Sigma SF99..I was inspired in many yachts but in all ones i didn´t like some details so I have decided do my own yacht.

[Cabisko]

Originally Posted by Apache2k

Looks much better, try to make the windows darker?

MODS:
In some places it says that the max picture size is 540px and in some places 640px. Maybe in the uploading window there could be a reminder of the right max. size.

the windows are a bit darker

[Yacht News]

Originally Posted by 'roundthehorn

Looks like "A" with the edges rounded off.
http://www.yachtforums.com/forums/bl...ter-sigma.html

I was going to say the same thing!

[Henning]

You have a wave piercing bow with a helicopter pad on it.... Helicopters are not really designed to be frequently sprayed with salt water. It adds huge costs to the operation and maint. You also, especially with wave piercing designs keep as much weight out of the bow as possible. I also see large exterior surfaces that will be quite difficult to clean without elevated exposure to injury.

There are many subtle practical issues to yacht design. When you design something you have to always consider "how will this be maintained? Is it safe to do that?"

You also have a lot of draft there and have combined a wave piercing bow design forward with a planing hull form aft. A wave piercing design goes with a sleek displacement form, yet you have a large square transom deep underwater creating huge amounts of drag.

[St_Rand]

I have to agree with Henning. The proportions do not appear to be architechturally correct. Most modern software will model this for you and indicate deficiencies. Also, given that the helipad is forward (which will cause all sorts of issues), it would be interesting to see a GA to see where else everything lay.

[Momentum]

It is very interesting make a nice yacht draw y help you simple first see a lot of yacht not for copy or make some ok
You see and you see the performance every yacht but remember not only the software help you in desing a yacht maybe a lot ofo captain help you
Sea it is sea and a lot of shipyard make a yacht every month in the world but they say wath hapening in the sea.
Then they take al captain crew speak about the performance of the yacht .
Y like yath at diferent model and y like a lot of sailboats and make a lot of model but you need to say who go to take your yachts and who like your model and where your yatch go to play ok .
In our seas in South America and in the North seas water are very very hard for come with a yacht .
You need to licening a lot of about make and dessign a yacht then where you like to go with your model yachts ok
if for make arround the world you need a special dessigne yacht ok .
y like your model .
Ym very glad to help you but remember you need to studie a lot of about seas and yacht see all yacht and make a db and you go to see diferent model for diferent seas and aplications ok .
Not all it s leng or displacamente ok .
Good job and go go ok
byb y
William
