Never resting on their laurels, Stan Antrim and the Shadow Marine crew are preparing to build a venerable City at Sea... the new 205' Shadow "Allure". Highlights include 4 guest staterooms, an aft-facing all glass “Ready Room Lounge” on the helo deck, and a forward facing Sky Lounge on top of the pilot house. It will be finished to the same quality and finish as the Paladin Shadow with all of the below deck spaces finished out to produce the “ultimate” Shadow. It should be... (ahem)... Alluring.

General Specs:

Length Overall...............205 feet
Beam……………40 feet
Draft Max……………...12 feet
Draft Min…………8 feet
Displacement Max…….1500 tons
Helo Landing Area…….70 X 38 feet
Fresh Water…………….12,500 gallons
Fuel Oil…………..150,000 gallons
Lube Oil………………..2300 gallons
Jet A Avgas…………….2000 gallons
Gasoline (petrol)…..2000 gallons

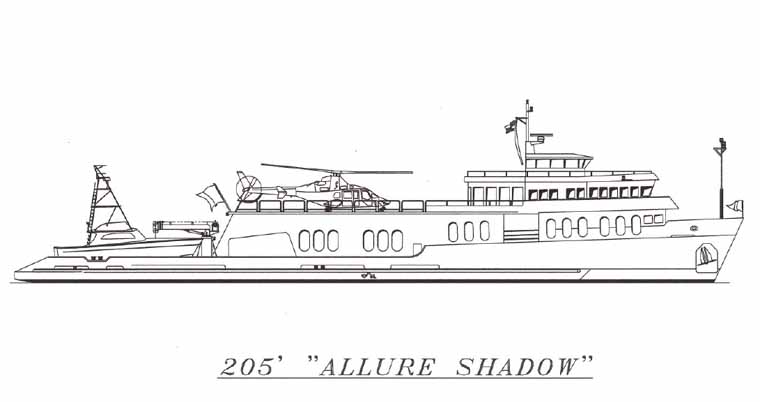

Side View of 205' Shadow "Allure"...

[YachtForums]

Machinery Specs:

Main Engines………….2 X Cat D 399 TA 2250 HP
Generators……………2 X 75 kW DD 6 -71
Bow Thruster………….DD 8V-71 300 HP
Transmission…….…2 X Reintjes 4:1
Water Maker…………..Village 4000 GPD
Oily Water..............Village
MSD……………..........FAST II
FLUME Roll Stability/Bilge Keels

Performance:

Speed Max..........13 knots/105 gph
Range at 10 knots…25,204 NM

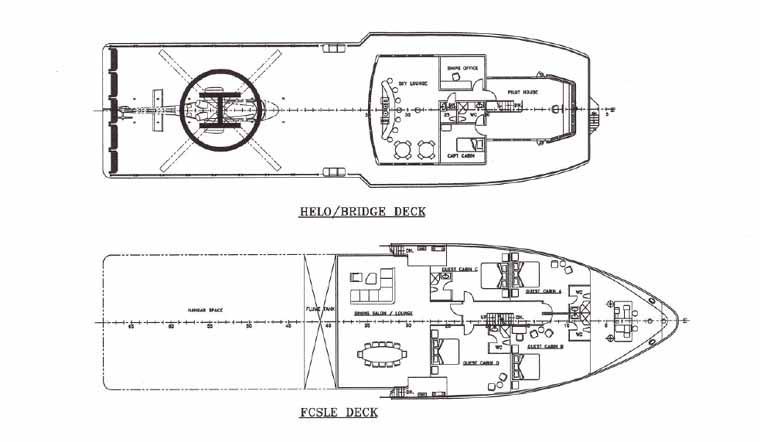

Fly & Heli Decks...

[YachtForums]

Accomodations:

Upper Deck...

Captain Cabin w/ Head and Single Berth
Engineer Cabin & 4 Berth Crew Cabin
2 X Guest Cabins w/ Head and 2 Single Berths
2 X Guest Cabins w/ Head and 1 King Berth

Lower Deck...

Full Gymnasium
Massage Room with Sauna & Sal
Temperature Controlled Wine Ce
Machine Shop and Storage Room

Main Deck...

Crew Cabin with 4 Berth
Crew Cabin with 2 Berth
Crew Cabin with 4 Berth
Head
Galley
Laundry
Central Air Conditioning

For more information, contact:

Shadow Marine
1535 S. E. 17th Street
Suite B201
Ft. Lauderdale, FL 33316
954-779-7062
www.shadowmarine.com

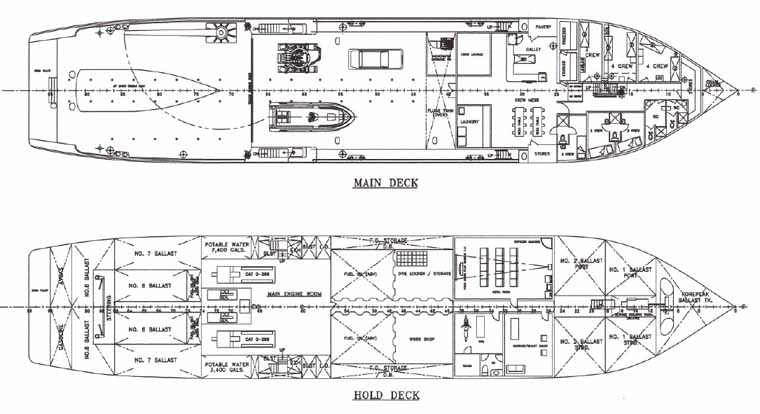

Garage & Lower Decks...
