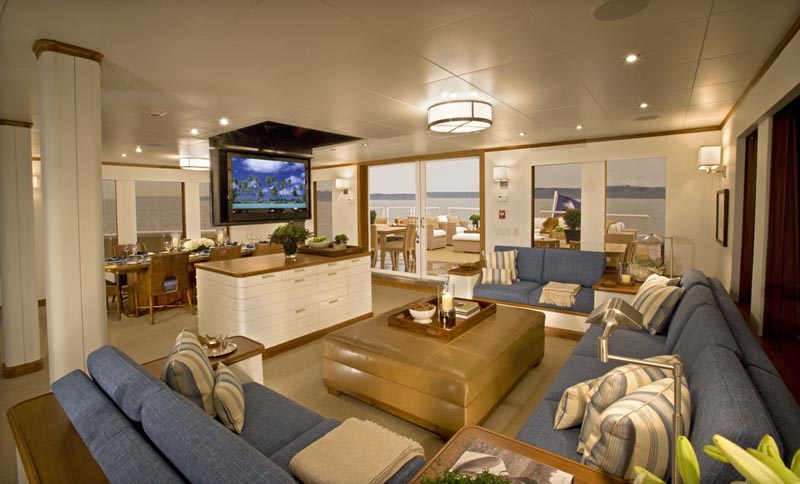

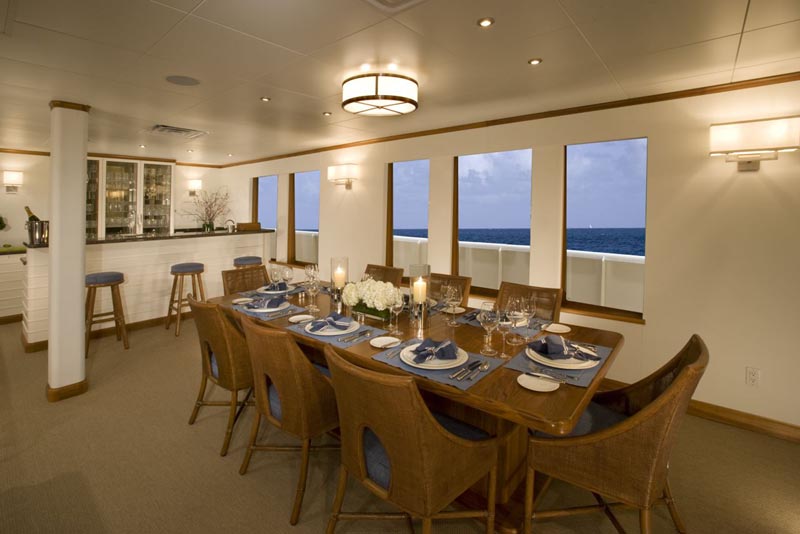

Aft of the bridge is the large skylounge with a separate office for owner and guests, day head and a large bar forward of the dining/conference table. As would be expected on a ship that places emphasis on function over impression, a centrally located, drop-down LCD TV offers surround-sound viewing of over 300 movies and can swivel with the push of a Crestron command to face any direction.

The banquette to port also enjoys use of the drop-down flat screen. With the push of a button, the panel rotates 180 degrees for viewing of the latest business plan via computer link. SuRi's skylounge windows are abundant, spanning knee-to-ceiling and provide 270 degree visibility. YES folks, function rules!

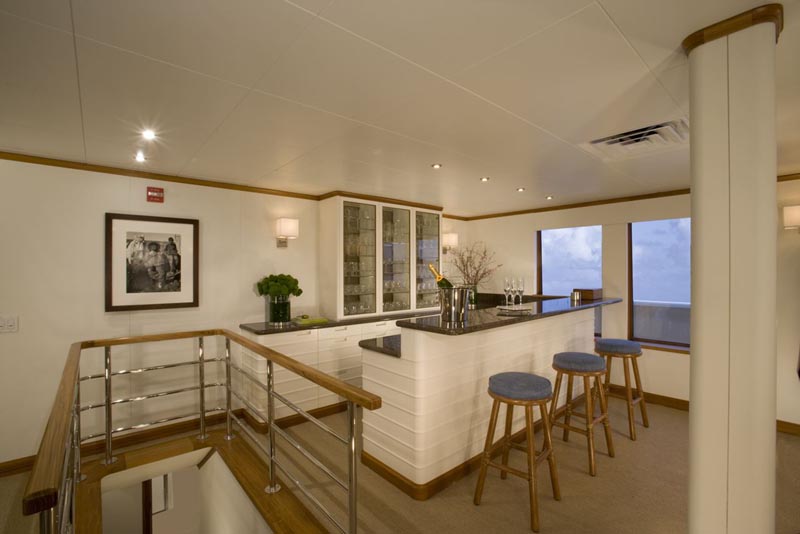

Just forward and to starboard, a large bar with a multi-level granite counter top provides refreshments, complete a glassware hutch mounted against a forward wall to protect loose items in a head sea. To center, a staircase leads to the accommodations below.

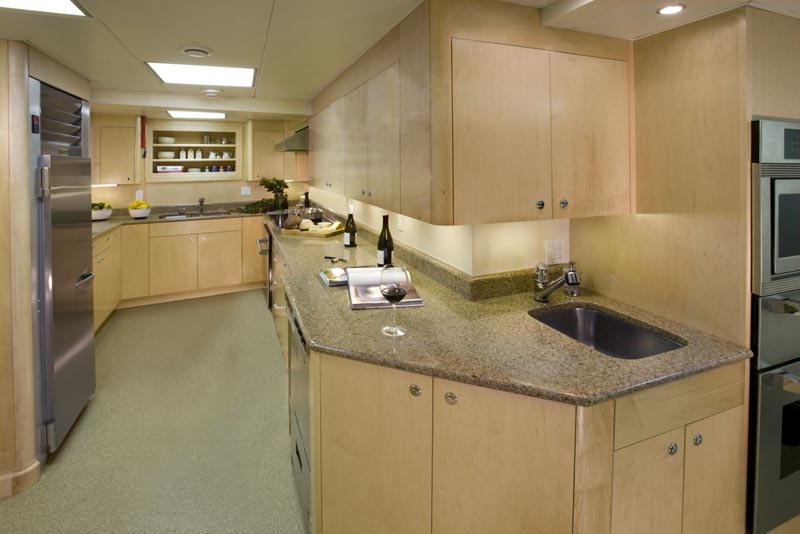

A vast departure from the mess that fed a hungry crabbing crew, the galley is outfitted completely in maple supported by new commercial appliances including a 6 burner electric stove top, 2 X electric ovens, double deep sinks, 3 refrigerators, 3 freezers, 400 pound icemaker, and 2 X convection-microwave oven. The laundry includes 3 each of new commercial size Miele washers and dryers with storage for supplies. The crew mess has a large Corian dining table with seating for 9 persons and cabinetry for dishes, glassware and other utensils. Vinyl flooring is used for durability and easy clean-up, as well as ease of replacement in high traffic areas such as passageways.

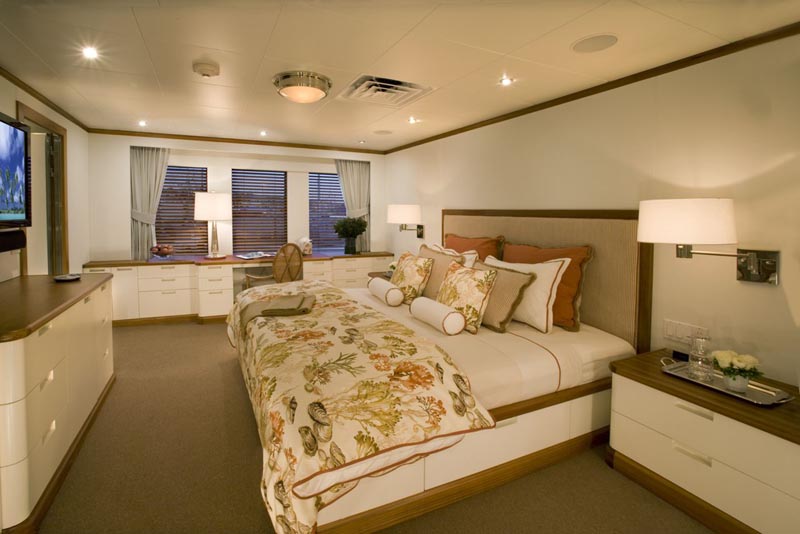

On the forward forecastle deck is the full beam owner’s suite with entrance foyer. Included is a private office, his and her separate baths finished in white marble slab and the king master bedroom. Full height windows make this a magnificent room from which to enjoy the world’s oceans.

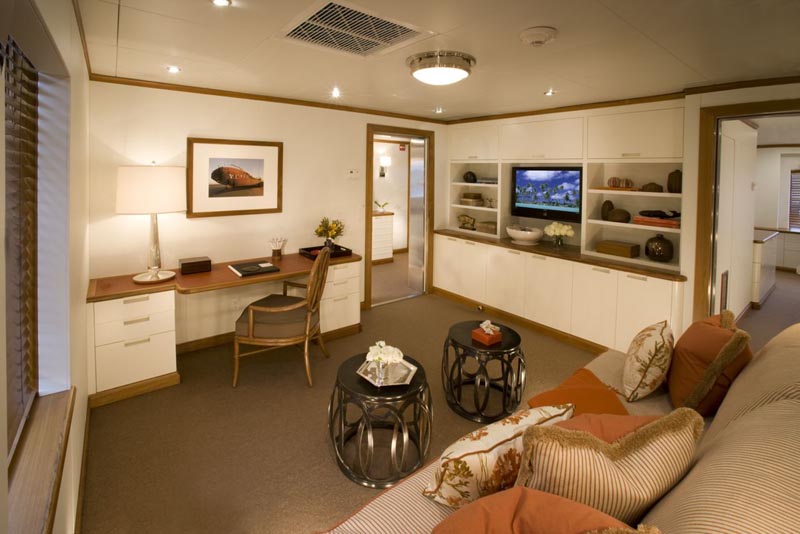

The owners private study is located adjacent to the master, on the port side. Complete with built-in book shelves and cabinets that house a flat screen television, the office is comfortable and accessible with dual entries.

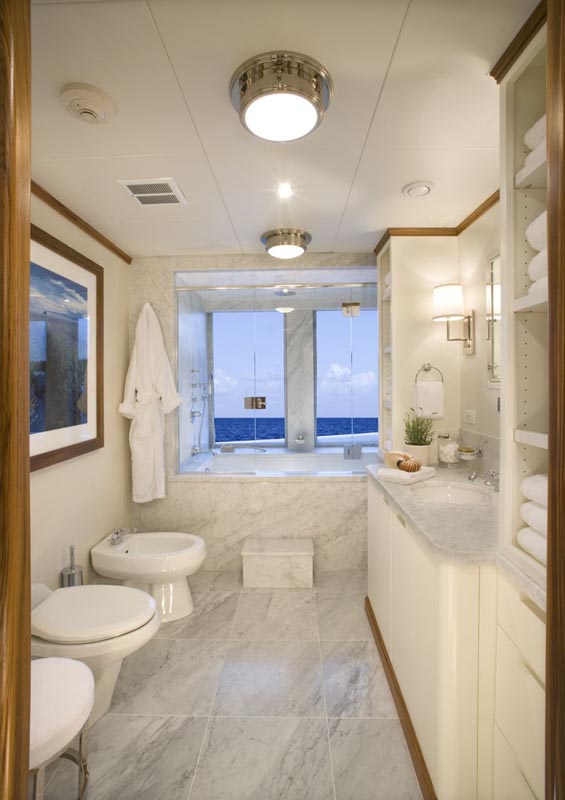

If the Crew of this Crabber turned Escort ever saw a bidet onboard their prior platform, it would likely become a rip-line on an episode of the Deadliest Catch. It's clear the YES crew knew a little more about luxury yachts than a greenhorn here, having been involved with such builds as Oceanco's Lady Lola. The master bath, complete with porcelain that flushes up and marble galore, benefits from one of SuRi's best features... another great view.

The lower deck is a combination of machinery spaces, storage areas and guest facilities. Forward is the 300 hp diesel powered, direct drive bowthruster. Next aft to port and starboard are large storage rooms with deck to overhead shelves. The following compartments house the air conditioning compressors and MSD system. The fun then begins with a large, fully equipped gymnasium including elliptical machine, treadmill, two Keiser air pressure controlled strength training station, free weights, stretching cage and the obligatory Crestron-controlled LCD TV. Across from the gym is the massage room and beauty salon with a Murphy bed in case additional berthing is required. The steam room, shower and head are access from either the gym or massage room. Forward of the large commercial engine room are 2 guest cabins, one king and one twin, with ensuite heads and walk-in closets.

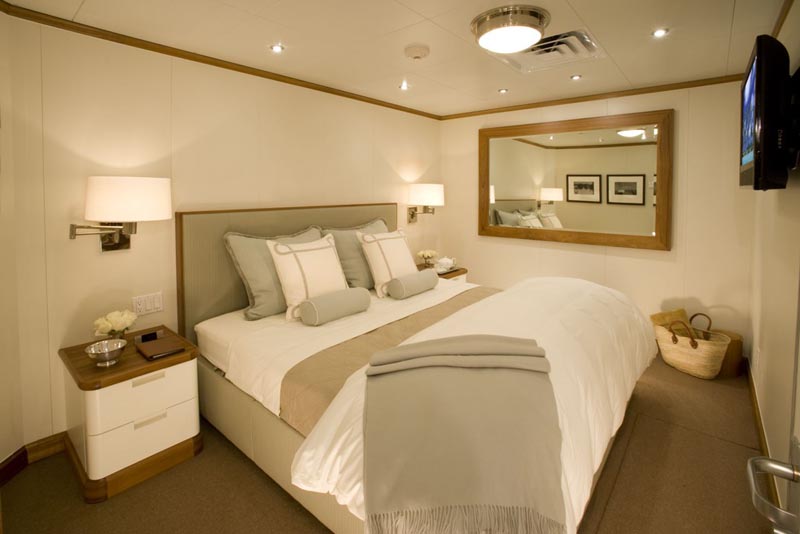

Shown here is the VIP guest suite...

The chief engineer and first mate have private cabins and share a common head, all also finished in maple with granite countertops. Aft of the crew area to starboard is the A/V room housing 19 requisite 19 satellite TV receivers, amplifiers, Crestron equipment and Kaleiescape hardware. As is the YES standard, every system was either completely rebuilt or fully replaced with new. The new MSD sanitation system is the HMX by Headhunter. Florida Heat Pump through Joe Water Refrigeration in Jacksonville provided air conditioning systems which offers total zone control with individual compressors and air handlers. The IMO certified oily water separator was manufactured by BOSS. The existing generators were removed and replaced with two 99 kW gensets and one 65 kW emergency generator, all with John Deere motor drivers.

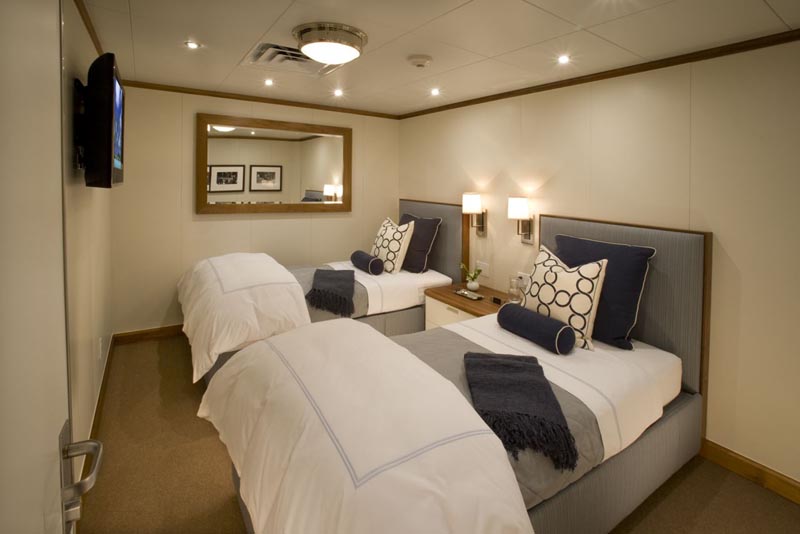

Shown here is the guest twin, opposite the VIP above...

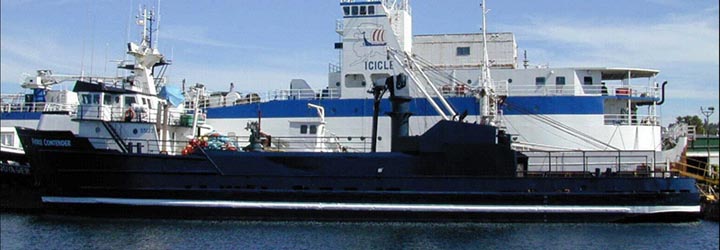

The attached Powerpoint slide show depicts the ruggedness of the platforms that YES uses for conversions into yacht escort ships. These are serious seagoing vessels and a comforting foundation on which to sail the oceans of the world. SuRi began life as one of these vessels, "Fierce Contender", pictured below. In order to achieve a yacht-like finish, over 3 tons of fairing compound with a final coat of Sherwin Williams Proline Hi-Gloss paint was applied by West Coast Marine in Seattle. It must be noted that paint and fairing applications attempted in the Pacific Northwest in the winter are a true test of coating talents.

For a better idea of the Fierce conditions these ships must Contend with... Click Here To Open The File

The two Detroit Diesel 16V149 main engines (1800 hp total), their Twin Disc marine gears and the 8V-71 bowthruster (300 hp) were completely rebuilt to zero hour specification by authorized manufacturer representatives. Air starts are positively assured with two completely rebuilt Quincy air compressors and engine controls upgraded by Mathers. SuRi utilizes a Flume stabilization system which is comprised of a computer modeled anti-roll tank. It is always active, very effective, uses no power and requires almost no maintenance.

One point of interest often questioned is the alternating capitalization format for the names JeMaSa and SuRi. Each two letter group represents the first two letters of a name. For JeMaSa they represent the names of the owner’s three lovely daughters. Operating in support of and enhancing the JeMaSa experience is SuRi, the first two letters of the owner’s wife and the owner’s names.

As the various professional societies, yachting magazines and self-proclaimed experts gather
to review the state of yacht construction and analyze the superyacht deliveries for 2008...

YachtForums is proud to be the first to declare SuRi as “Refit of the Year.”


<end>

Specifications:

Length Overall: 173 feet
Beam: 38 feet
Draft Max: 11 feet
Draft Min: 8 feet
Gross Tonnage: 1009 GRT
Deadweight: 750 tons
Ballast: 79,643 gallons
Lube Oil: 1600 gallons
Fuel Oil: 63,733 gallons
Cruise Speed: 11 knots @ 9,900 NM
Max Speed: 13 knots

Propulsion and Power:

Main Engines…Two GM DD 16V149 (1800 hp)
Generators….2 X 99 & 1 X 65 kW (New)
Water Maker………2500 gpd Village
Trans……Twin Disc MG 540
Bow Thruster………GM DD 8V71 (300 hp)

Credits:

Conversion and Refit: Yacht Escort Ships, Intl.
Naval Architecture: Boris Kirilloff , Kirilloff & Associates, Jacksonville, FL
Classification Society: Bureau Veritas
Profile and General Arrangement Design: Stan Antrim, YES
Project Engineering; Jeff Perry, OTR Marine, Seattle
Interior Decoration: Jeffrey Botwin, Los Angeles
Interior Joinery: Marine Artisan Group, Seattle

For more information contact:

Yacht Escort Ships
www.YachtEscortShips.com
Phone: 1-949-637-7700

***

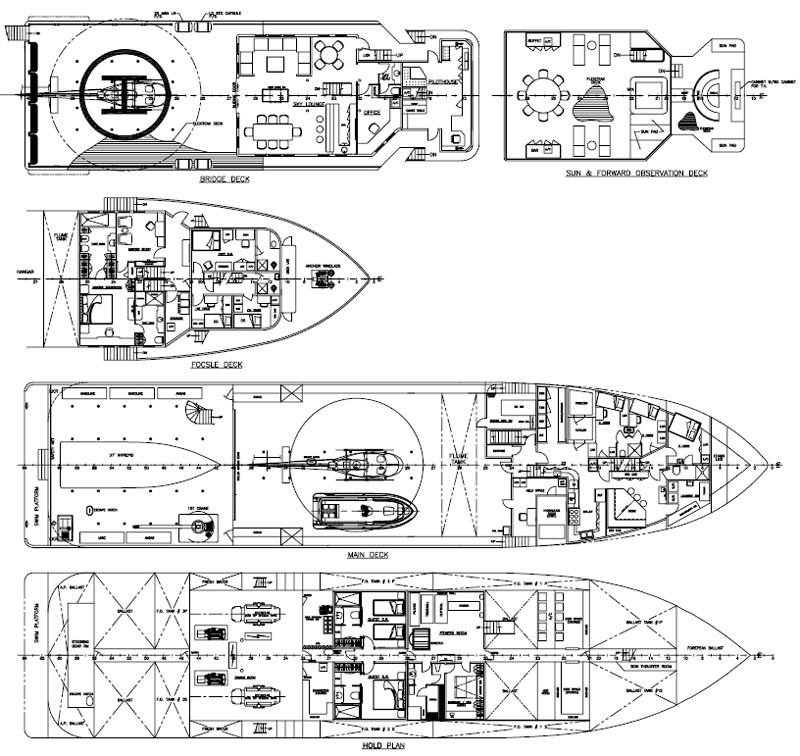

Deck Plans; Top to Bottom...

1. Bridge Deck, Sun Deck and Cigar Deck
2. Forecastle Deck
3. Main Deck
4. Holding Deck
