Wally 40M



LinkBack Thread Tools Rate Thread Display Modes
Old 09-30-2007, 06:23 PM   #1 (permalink)
YF News Associate

Yacht News's Avatar

Join Date: Mar 2006
Location: Caribbean
Posts: 12,392
Wally 40M

Wally simply keeps you interested. They are an innovative company and seeks to break the contemporary molds of yacht design. For some, this departure in styling and creative functionality took some getting used to, however, many of these people convert to Wally fans. Wally has an interesting number of yachts under construction, and the Wally 131 is just as interesting.

Measuring at a length of 39.90M, this Wally is not the largest of sailyachts on the market. This reality is not made to discourage but to engage the mind in what a small design can do. Indeed, this 131 footer is a kind of sailyacht known as the fast cruising sloop. She is to have a beam of 25.11 feet and a maximum draft of near 20 feet (19.8 feet).

Being constructed from pre-pregnated carbon composite ensures a strong but more importantly, a light vessel, the Wally 40M will boast a displacement of only 84 tons with a 25 ton hydrodynamic bulb. This yacht is under construction by Wally at the Wally Europe facility and was designed by Javier Soto Acebal. The interior has been designed by Foster And Partners/Wally.

Accommodations for the 40M show a similar plan to the Wally 148. 8 guests and 6 crew will eventually call her home. The breakdown in accommodation is as follows: The Owner- this room features a separate head and shower. Two guest cabins are to each possess two beds, ensuite head and showers. A family cabin has been devised and features, 2 beds as well as ensuite head and shower. The crew finishes off the rest of the accommodation plan. The Captain's Cabin is to have 2 beds as well with a separate head and shower. Two other crew cabins, to sleep 2 in each on 2 double beds. Both have separate heads and showers.

On the outside, the presence of carbon construction is more prevalent. The mast and boom are to be of this material. The mainsail might most likely be automatically hoisted such as on Y3K and there will be a furling jib as expected. The total sail area is expected to be in the region of 7,831 sq. ft. However, when the wind decides to change its mind, there is an engine that can help in motoring. This engine is slated to be a MAN D 0836 LE 401 EDS 450 Brake Horse Power @ 2,600 RPM’s. This engine will supply power to give a motoring speed of 12 knots.

For more statistical information see below:

LOA: 131 feet
LWL: 113.6 feet
BOA: 25.11 feet
Draught: 13.20 feet keel up, 19.80 feet keel down
Displacement: 84 tons
Engines: 1 MAN D 0836 LE 401 EDS 450 Brake Horse Power @ 2,600 RPM's
Speed: 12 knots (motoring)
Design: Javier Soto Acebal (exterior styling), Foster & Partners/Wally (interior)
Builder: Wally Europe

For more on the Wally 40M please travel to the builder website at:

http://www.wally.com/jumpCh.asp?idCh...1-2-2&idUser=0

http://www.wally.com
Attached Images
Yacht News is offline   Reply With Quote
Old 07-25-2009, 03:30 PM   #2 (permalink)
YF News Associate

Yacht News's Avatar

Join Date: Mar 2006
Location: Caribbean
Posts: 12,392

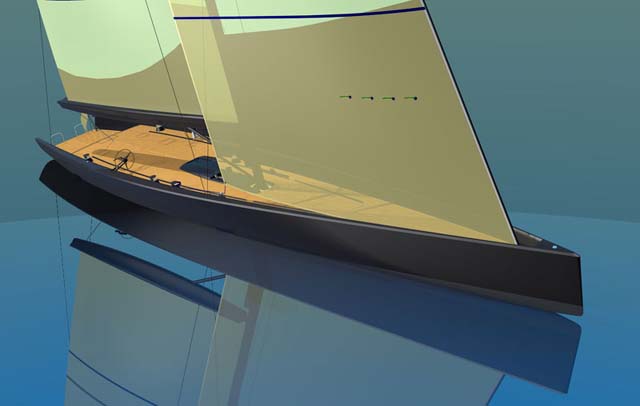

Well the above rendering was the original design for the 130-foot sloop by Wally. However, the final product has change a bit especially with the deck features. As we all know the Wally 130 has been launched and has recently successfully completed her sea trials and she should soon be delivered to her owners. She is to be on show at the upcoming 2009 Monaco Yacht Show (MYS).
Yacht News is offline   Reply With Quote
Old 08-25-2009, 07:59 PM   #3 (permalink)
YF News Associate

Yacht News's Avatar

Join Date: Mar 2006
Location: Caribbean
Posts: 12,392
The new wally 130 has hit the for sale market as soon as she has been finished! Around 17 mil Euros is the price.
Yacht News is offline   Reply With Quote
Old 10-13-2009, 08:59 PM   #4 (permalink)
YF News Associate

Yacht News's Avatar

Join Date: Mar 2006
Location: Caribbean
Posts: 12,392
The name of the Wally 130 Project Dream is "Cannonball" apparently.
Yacht News is offline   Reply With Quote
Old 10-31-2009, 11:50 AM   #5 (permalink)
YF News Associate

Yacht News's Avatar

Join Date: Mar 2006
Location: Caribbean
Posts: 12,392
PR on the Wally 130/"Cannonball"

Quote:
The Wally 130 is a breakthrough sloop developed by Wally with the lines by Javier Soto Acebal. This stunning 130-foot (40-meter) mega yacht features the water ballast combined with the trim-tab lifting keel. The innovative movable ballast combination has been selected by Wally Research & Development department to optimise safety and performance in such a large yacht: the 11-ton (24,251 lbs) water ballast improves the stability of the light displacement boat (only 95 tons - 209,439 lbs) while the 6-meter deep keel with trim tab improves the lift. The draft can be reduced to 4 meters to allow the access to ports and bays.

The deck is similar to that of "Esense" and is characterized by the bulwark leaving the hull lines pure while offering more privacy and protection.
Furthermore, the bulwark amidships hosts on both sides part of the water tanks (the remaining extends down below).

The stern features the so-called Terrace on the sea.

The interiors accommodate eight guests and five crew. The aft salon opens onto the Terrace on the sea following the Wally inside-outside living concept first introduced with "Tiketitan" in 1998. The interior design is contemporary and is characterised by some strong architectural elements.

The exterior styling reflects the high technology content of the mega yacht combining the metallic grey colour of the hull and coaming with the red PBO rigging and deck lighting.

As a result, the Wally 130 stands out for performance and style: she was the star of the Voiles de Saint Tropez where she impressed spectators, media and competitors for her acceleration and upwind performance. The mega yacht upwind matched her VPP target speeds, and outperformed them with more than 15 knots of True Wind Speed. She reached 11 knots with 11 knots TWS, 13 knots with 13 TWS, and 13 knots with 18 TWS; always with a true wind angles between 35 and 37 degrees. And with the small Gennaker she reached 16 knots with a 13-knot TWS and a 110-degree TWA!
***

http://www.wally.com

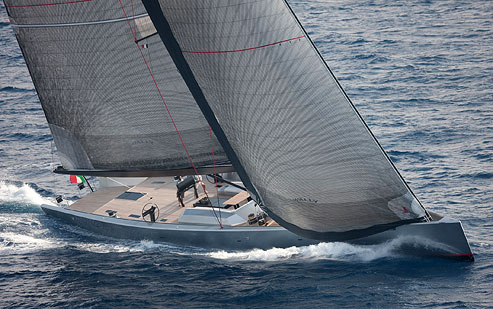

Name:  sopra-testo_.jpg
Views: 1064
Size:  55.5 KB
Yacht News is offline   Reply With Quote
