"Portuguese bridge design" means WHAT?



LinkBack Thread Tools Rate Thread Display Modes
Old 08-31-2006, 01:47 AM   #31 (permalink)
JWY
Senior Member

Join Date: Feb 2004
Location: Ft. Lauderdale
Posts: 524
Thanks for help posting the photo.

As to Ben's original post about a Portuguese bridge, you can see where this helps deflect water over the piltohouse top, improves visibility, and prevents waves from hitting full force into the windows. The photo shows the railings which provide additional safety. Storage access is on the inside of the bulwark. And as mentioned, the "overboard prevention for men" is on the inside of the bulward on a sistership.

Hope this helps.
JWY is offline   Reply With Quote
Old 09-24-2006, 06:18 AM   #32 (permalink)
Senior Member

brian eiland's Avatar

Join Date: Jul 2004
Location: Washington DC, Annapolis MD, Thailand
Posts: 2,038
Portuguese Bridge on Sailingboat

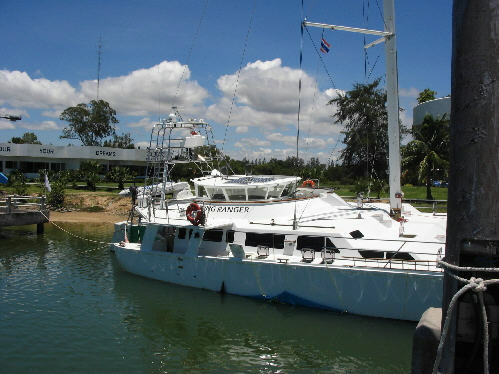

Here's a rather interesting bridge arrangement on a sailing trimaran. I haven't seen too many such bridges on sailing yachts. The bridge was done rather well, but the arch/tower was certainly not very pretty.

I took this photo at a Ocean Marine in Thailand during a recent trip
Attached Images
brian eiland is offline   Reply With Quote
Old 01-06-2007, 12:28 AM   #33 (permalink)
Registered User

Alik's Avatar

Join Date: Jan 2007
Location: TH
Posts: 8
Regarding the tower, this is my design.

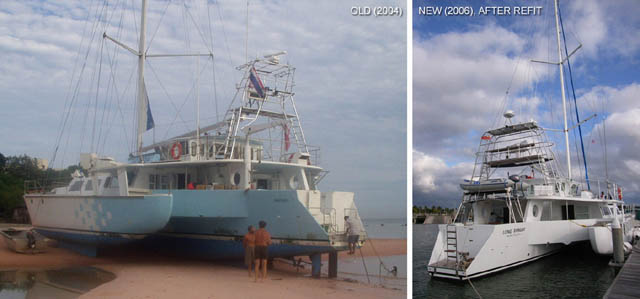

One can compare original alloy tower with new one we did in stainless/teakwood gratings/FRP roof. New tower is wider and easy to access, this is favourite place for guests to sit when running between islands. Note that all parts of new tower are structural and functional at the same time: for instance, handrails and ladders provide frame structures...

Sure, tower is not top elegancy, but please have in mind that the whole boat exterior is 'workboat' style. We did complete refit of this 87' trimaran during last two years.
Attached Images
Alik is offline   Reply With Quote
Old 02-11-2007, 10:21 AM   #34 (permalink)
Registered User

Join Date: Feb 2007
Location: Vancouver, B.C., Canada
Posts: 32
Uses of a Portuguese Bridge..

To KCook:

Ironic humour can often wizz right past people.......
Best to stay upwind.

Which brings us to:
JWY and WannabeYhtsman
Re: the various life saving aspects of the Portuguese Bridge.
Like containing, a semi private space, when nature calls.

As further evidence of the # one cause of man - over board,
comes from the Canadian Coast Guard, I belive.
That something like 50% of male bodies recovered from
the sea - their pants are unzipped and their blood alcohol
level is high.

We are treading periously close to Black Humour here.
But as the safety of people we design boats for - is always
a major concern - this simple addition to the bridge design,
could truly be: a life saver!

Cheers all !
tri - star is offline   Reply With Quote
