World's Largest Yacht: 525' Platinum (Dubai)

paolo_ita · 05-15-2006, 07:09 AM

New (small

) photos of Dubai at the Jebel Alì Dock:

http://www.pbase.com/bmcmorrow/image/56429761
http://www.pbase.com/bmcmorrow/image/56429763
http://www.pbase.com/bmcmorrow/image/56429764
http://www.pbase.com/bmcmorrow/image/56429778

foundrycourt · 05-15-2006, 08:48 AM

Great find Paolo.

YachtNews · 05-15-2006, 06:54 PM

those were the same pics that you posted on PM right?

davidwb · 05-17-2006, 04:01 PM

Can't wait to see the first post-panamax megayacht.
(Building a 160 meter yacht is easy, finding a spot in a marina is the tricky part. "Captain, follow that Bulk-Carrier! If they can berth in that port, so can we!").

dbart9 · 09-15-2006, 09:49 AM

Anyone have any info on this yacht? There seemed to be a big buzz about it, then all has been quiet.

YachtNews · 09-15-2006, 10:27 AM

No real information...they might still be doing the little intracacies that take 'ever SO LONG!'

orion · 09-15-2006, 03:46 PM

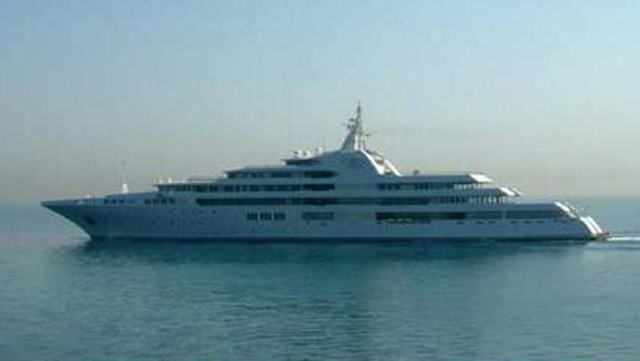

Test cruise.

YachtNews · 09-15-2006, 11:07 PM

When was that photo taken Orion?

tantetruus · 09-22-2006, 11:50 AM

Platinum is clearly visible on Google Earth;
go to the left of the two palm islands, into the harbour; voila.
According to measurements in Google Earth, 161 mtr, so, must be her...

In another spot they seem to be building a yacht of 100 + mtr's from scratch;
you can see this on a shipbuilding site in dubai.

nilo · 09-22-2006, 01:56 PM

Quote:

Originally Posted by davidwb

Can't wait to see the first post-panamax megayacht.
(Building a 160 meter yacht is easy, finding a spot in a marina is the tricky part. "Captain, follow that Bulk-Carrier! If they can berth in that port, so can we!").

the maersk container vessel across dubai is more than 300 meters. Dubai port is a major dept water port. with a loa of 160 m m/y "dubai" will have hard time even finding a berth in most commercial harbours.

nilo

dougie · 09-23-2006, 12:40 AM

At what stage in the construction of this vessel would the engines be installed. I'm assuming that they must already be in, for how could they possibly be installed once the superstructure was in place?

dougie · 09-23-2006, 01:11 AM

"Platinum is projected to be powered by four (4) diesel engines, each packing in excess of 9000 horsepower."

This cannot be, since no 9000 HP engine has yet been built.

The Most Powerful Diesel Engine in the World!
The Wartsila-Sulzer RTA96-C turbocharged two-stroke diesel engine is the most powerful and most efficient prime-mover in the world today. The Aioi Works of Japan's Diesel United, Ltd built the first engines and is where some of these pictures were taken.
It is available in 6 through 14 cylinder versions, all are inline engines. These engines were designed primarily for very large container ships. Ship owners like a single engine/single propeller design and the new generation of larger container ships needed a bigger engine to propel them.

The cylinder bore is just under 38" and the stroke is just over 98". Each cylinder displaces 111,143 cubic inches (1820 liters) and produces 7780 horsepower. Total displacement comes out to 1,556,002 cubic inches (25,480 liters) for the fourteen cylinder version.

Some facts on the 14 cylinder version:
Total engine weight: 2300 tons (The crankshaft alone weighs 300 tons.)
Length: 89 feet
Height: 44 feet
Maximum power: 108,920 hp at 102 rpm
Maximum torque: 5,608,312 lb/ft at 102rpm

Fuel consumption at maximum power is 0.278 lbs per hp per hour (Brake Specific Fuel Consumption). Fuel consumption at maximum economy is 0.260 lbs/hp/hour. At maximum economy the engine exceeds 50% thermal efficiency. That is, more than 50% of the energy in the fuel in converted to motion.
For comparison, most automotive and small aircraft engines have BSFC figures in the 0.40-0.60 lbs/hp/hr range and 25-30% thermal efficiency range.

Even at its most efficient power setting, the big 14 consumes 1,660 gallons of heavy fuel oil per hour.

nilo · 09-23-2006, 02:44 AM

This engine is build for and used in the new series of container ships Maersk is taking into service. The first ship "Emma Maersk", 397 meters long, already on her way to join the Europe Far East service. There will be 11 more ships of the same size coming into service in the next years. She can accommodate over 11000 by 20' containers and has a service speed of 24 + knots. She has a dwt of 115.700 and can take 22 rows of containers. This is 4 more rows compared to other ships build so far.

Nilo

foundrycourt · 09-23-2006, 04:03 AM

Quote:

Originally Posted by dougie

"Platinum is projected to be powered by four (4) diesel engines, each packing in excess of 9000 horsepower."

This cannot be, since no 9000 HP engine has yet been built.

MTU make engines upto 12,203hp for yachts. Need to check out their site.
I'm guessing that Dubai has either 20V 1163 TB73L which are rated at 8716hp or 20V 1163 TB 93 which are rated at 9923hp. (Carinthia 7 has 4 of the latter engines as well)

ekiqa · 09-23-2006, 06:16 AM

Quote:

Originally Posted by dougie

The cylinder bore is just under 38" and the stroke is just over 98". Each cylinder displaces 111,143 cubic inches (1820 liters) and produces 7780 horsepower. Total displacement comes out to 1,556,002 cubic inches (25,480 liters) for the fourteen cylinder version.

Some facts on the 14 cylinder version:
Total engine weight: 2300 tons (The crankshaft alone weighs 300 tons.)
Length: 89 feet
Height: 44 feet
Maximum power: 108,920 hp at 102 rpm
Maximum torque: 5,608,312 lb/ft at 102rpm

If you would read your own post, the output per cylinder is 7780hp.

The facts given for the 14 cylinder version state maximum power is 108,920hp.

A lot more than 9000hp.
