New Zealand Yachts Wavepiercer Series



LinkBack Thread Tools Rate Thread Display Modes
Old 03-02-2009, 09:30 AM   #1 (permalink)
Registered User

Join Date: Jul 2007
Location: Shanghai
Posts: 4
New Zealand Yachts Wavepiercer Series

S25.310

The S25.310 is the perfect high speed offshore yacht designed especially for extended luxury vacations with family and friends. Whilst she is the smallest in the series she is still built to class and has all the performance and safety traits of her larger family.

Technical Sheet

Internal Guest Area 164 square meters (1640 sq ft)
External Guest Area 146 square meters (1460 sq ft)
Total All Guest Areas 310 square meters (3,100 sq ft)
Total All Areas 366 square meters (3,660 sq ft)
Guest Accommodation 8 guests in 4 staterooms
Crew Accommodation 3 crew plus captains cabin
Length Overall 25 meters (82 ft)
Beam 8 meters (26.2 ft)
Draft 1.5 meters (4.9 ft)
Displacement 70 tonnes half load
Engines 2 X MTU12V2000M93. 1340 bkW 1790 HP each
Speed Max 32 knots half load
Speed Cruise 26 knots
Range 2500 nautical miles
Fuel 25,000 litres ( 6,600 US gallons )
Classification ABS Maltese Cross A1 MCA compliant
Construction Resin infused composite
Design Ken Freivokh New Zealand Yachts
Generators 1 x 50 KW 50 Hz Northern lights. 1 emergencey
Shorepower 75 kVA Vectek
Bow Thrusters 2 x Lewmar retractable

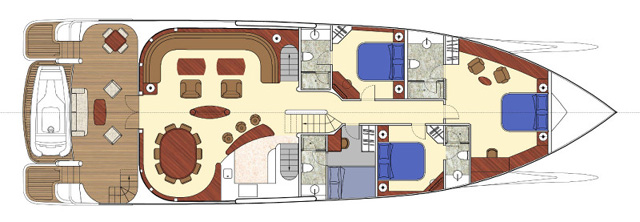

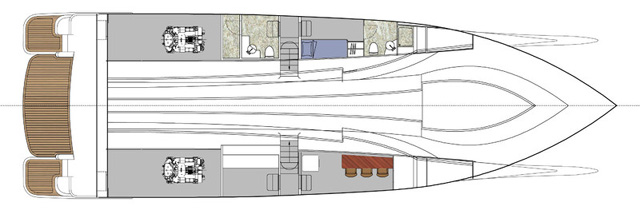

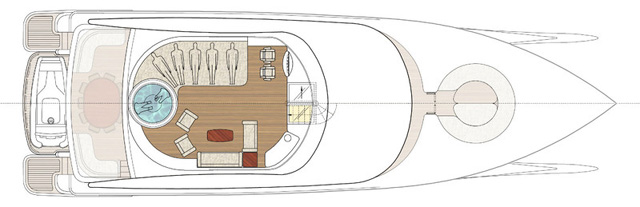

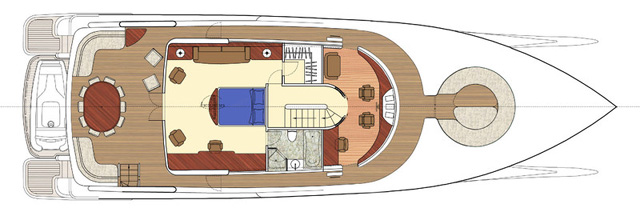

Attached Images
stevenkun is offline   Reply With Quote
Old 03-02-2009, 10:35 AM   #2 (permalink)
YF Moderator

Kevin's Avatar

Join Date: Nov 2004
Location: Montreal, Qc, Canada
Posts: 2,528
In the future please post images no wider than 640 pixels.
Kevin is offline   Reply With Quote
Old 03-03-2009, 01:27 AM   #3 (permalink)
Registered User

SVDesign's Avatar

Join Date: Jul 2008
Location: Cherbourg - France
Posts: 108
I imagine propulsion is ensured with hydrojet ?
