Horizon 106' Raised Pilothouse

Stylish Elegance on the Horizon

After the first 120 Raised Pilothouse took to the waves in early 2008, Horizon began
working on a brand new model to expand the Elegance range of Raised Pilothouse
Series Motoryachts, filling the gap between their 97-foot and 120-foot motoryachts.

Designed by J.C. Espinosa, the new Elegance 106 Raised Pilothouse inherits the styling themes of the 120RP, which is another impressive masterpiece by J.C. This yacht marries a sophisticated, streamlined look with impressive interior volume and the luxury of numerous accommodation options.

The 106RP shares the same luxurious interior finishes and weight-saving, state-of-the-art construction techniques of all new Horizon yachts. The most notable design change for the 106RP is in her advanced hull shape–the fabulous result is the comfort and enjoyment of high speed cruising.

Horizon’s new Elegance 106RP is designed with an innovative double-chine hull to provide great performance in both low and high speed ranges. For this new hull design, Horizon collaborated with Donald L. Blount and Associates, an internationally recognized naval architecture/marine engineering firm, which specializes in high-speed hull design, structure calculations and stability evaluation, to create a comfortable and efficient high-speed hull. The combination of an optimized structural arrangement and high-tech composite materials also reduced super structure weight, benefiting both speed and stability.

For the interior layout, JC conceived an exciting round salon aft, linked by a sleek wet bar to an elegant full-beam dining salon, an adjacent fully-equipped galley with access to the crew quarters below and the very private forward master suite on the main deck. To keep the profile low and pleasing, the master suite’s full-beam bath is recessed a half deck below.

In typical Horizon fashion, the Elegance 106RP offers owners many options, such as the choice of a country kitchen on the main deck with the master below. Among other features found on the 106RP are a tender garage, a six-person spa tub, sunbathing pads, day heads on the main deck and flying bridge, BBQ, a relaxing alfresco bar and two outdoor dining venues.

The new Elegance 106 Raised Pilothouse is another exquisite design from the Horizon
Group. Combining a stylish exterior, a well-appointed interior, high-tech hull design and the
latest in marine engineering and equipment, it's an exciting new entry into the RPH market.

<end>

Specifications:

L.O.A: 107’-7’’(32.80 meters)
L.W.L : 89’-11’’(27.42 meters)
Beam: 25’-0’’(7.62 meters)
Draft: (prop. tip clearance)(light loading) 5’-7’’(1.70 meters)
Height: (W.L. to top of arch) 34’-4’’ (10.46 meters)
Displacement: (light app.) 264,000lbs(120 tons)
Deadrise: (Stern) 10.5°
Fuel Capacity: 5,550 US gallons (21,000 liters)
Fresh Water Capacity: 820 US gallons (3,100 liters)
Holding Tank Capacity: 250 US gallons (950 liters)
Cabins: 5 + 2
Engines: Caterpillar C-32A 1800hp *2
Generator: ONAN 40KW(60Hz) *2
Freeboard (midship): 7’-5’’ (2.27 meters)

For more information contact:

Horizon Yachts
8 Kuang Yang Street
Hsiao Kang, Kaosiung Taiwan
www.horizonyacht.com

***

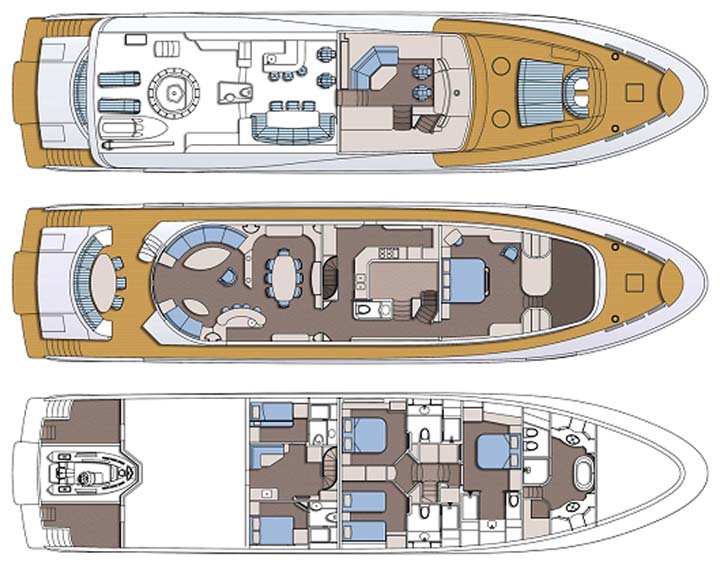

Deck Plans; Top to Bottom...

1. Flybridge Deck
2. Main Deck
3. Lower Deck
