[K1W1]

Hi,

JoeQ, If you can get your local Caterpilar dealer ( I don't actually know if there is one near you or not) to do a Performance Analysis Report (PAR) on your engines this will answer a lot of questions for you in one go. It will tell you how much you burn at what revs with figures exactly as taken from your particular boat where you may have differences that others do or don't have.If you ask them to do a single engine comparison test as a part of it It will also enable you to determine when running on just one engine how much power you can apply before you are overloading the engine.

Failing being able to get a CAT guy to do it a set of good calibrated Flow Meters in the fuel lines will be half the battle and do your own trials.

[JoeQ]

Thanks to everyone who's helped, I joined this forum less than a week ago and already have more information than I was able to gather over the last 3 years!

Apologies to the original poster of the thread for hijacking it, hope you don't mind.

If anyone has any more info on my boat or can offer any advice or tips please get in touch. I still love to hear of others experiences with their 63's in respect of handling etc.

[MedRascal]

Originally Posted by JoeQ

Hi,

Could any of you guys who have used the Cheoy Lee 63' give me an idea of speed, cruising and max under power and/or sail. Also what about fuel consumption and range?

Mine has twin Cat 3208 NA 210HP, what other engine options were available?

Thanks.

My CL63 #4413 had twin Perkins 130HP each. My cruising speed averaged 8 kts @ 1900 RPMs. In this kind of boats, big or small engiens don't make much differnece on curising speed.

On my CL78 #4562, i have twin Perkins 135HP and cruise at 8.5 kts @ 1900RPMs.

If you want more info on your 63' i suggest you contact the European dealer
http://www.cheoyleena.com/index.php?sec=2668

or:

EUROPEAN DISTRIBUTOR
Yachtmarketing Limited
+44 1624 611 099
Info@yachtmarketing.com

ask for Luuk V. van Zanten, who has been dealing with Cheoy Lee for at least 20 years!

[Loren Schweizer]

Originally Posted by JoeQ

Hi,

Could any of you guys who have used the Cheoy Lee 63' give me an idea of speed, cruising and max under power and/or sail. Also what about fuel consumption and range?

Mine has twin Cat 3208 NA 210HP, what other engine options were available?

Thanks.

JoeQ:
I dusted off an old listing of mine and here are the numbers that were given to me by a couple of owners--

Your 3208 NAs burn about 2.5 gph. each. Tankage numbers come from God knows where, but we used 1500 gal. capacity. Some boats in Europe are advertising 6500l which may be true as well.

The boat would do 7 kts. @ 1400 rpm on one engine. Keep in mind that these boats had either LUK or AutpProps, so there is a feathering effect here as well:

2.5 gph + 1500 gal. + 7 kts. = 4200NM

With both engines, she'd cruise at 8 kts.:
5 gph + 1500 gal + 8 kts. = 2400 NM

Reaching under a gennaker in 15 knots of breeze over the deck would allow her to make 8 knots.

Hope this proves useful.
May you never have to point higher than 45 degrees.

[brian eiland]

Originally Posted by MedRascal

I had a bad accident on my former 63' with its reversing props... their reaction time when you need to switch from fwd to reverse is terribly slow bringing the action need late to avoid the accident.

I had them eliminated during the building of my current 78' installin fixed ones. It gives more drag when sailing, (to avoid this, i keep engines running even while sailing) but at least, the responce while manouveing is in "real time"...

If you fellows ever get a chance to experience an electric motor driven vessel, give it a try. You will be amazed at the significant torque at the low end and the instantaneous forward to reverse capabilities without the need of a gearbox.

If I were repowering one of these older motorsailers, I would definitely look at the new diesel/electric technologies that can eliminate one or two extra aux-generator units and allow for electric motor drive of the props without the need for gearboxes


I talk about some of those subjects, and reference some other websites here under my new motorsailer design
http://www.runningtideyachts.com/dynarig/

HI Everyone:

My name is Jim Duffy and I was a deck hand on the Kanaloa during the America Cup races in 1974. I was 19 and my father knew the owner of the motor sailer. From June to the end of July, we made the boat beautiful and trained as the boat was to be leased during the races by (now billionaire) Ted Turner. Ted turned came on the ship with his famliy (Pre Jane Fonda). We sereved then breakfast,Lunch and Dinner. We sailed all over the ocean until the races started. Being a motor sailer we were able to go 10 knots. I boat was beautiful the teak wood was wonderful. After the races were over, I felt I should go back to school. But I left a winter of sailing in the Carribean. (Now I look back and kick myself).

I fould a picture of the yacht and it is old and not in great shape. But remember that people would walk past the big huge power boats and stop by the Kanaloa and say "That's my boat"...some night we would stand on deck and answer questions.

I met many celebrities on the yacht as Ted was always trying to entertian some big shot.

If anyone wants any information on Newport in 1974 or the yacht. Let me know.

Wonderful ship and many great memories.

Jim Duffy
Ramsey New Jersey

http://astro.temple.edu/~bstavis/pr/kanaloa.htm

I emailed Ben Stavis and asked him about the yacht and he was not sure where it was . Possible Washington State.

What a shame...

[wannasail53]

Thank You Brian, I have been searching for info on the Virginia Reel. Great info.

[brian eiland]

Originally Posted by brian eiland

Okay, its time for a beautiful Alden design, although a little short on sailing potential. But look at the lines of this vessel, and the very comfortable living space. I almost bought one of these recently.

From Rudder mag;
Mr. Brandt of Massachusetts, is a man who wants to go places, safely and comfortably Alden was commissioned to design the vessel to do this, and the result is shown here. The Lazy Lady is Alden’s idea a modern, oceangoing power cruiser.

She was built by the Bass Harbor Boat Shop of Bernard, Maine and thus far has lived up to her owners expectations. Powered by a 220 hp. Cummins diesel engine, she can cruise continually at better than 10 knots. Corten steel fuel tanks holding 1,060 gallons provide a cruising range of 2,000 miles.

Below, she has three staterooms sleeping six plus crews quarters for two. Mr. Brandt specified a large saloon, and this one fills the bill. It opens directly into a deep after cockpit that is, in effect, a continuation of the saloon.

The sails are strictly secondary propulsion. 613 square feet in area, they are to be used for steadying, emergencies, and for helping out the engines on long passages. She is not to be considered a motor sailer, but rather a cruiser capable of handling long distances on bumpy oceans

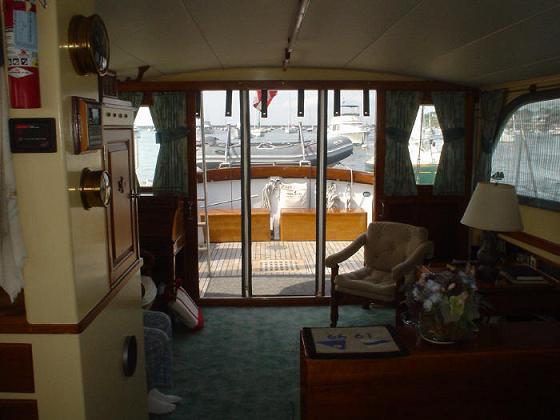

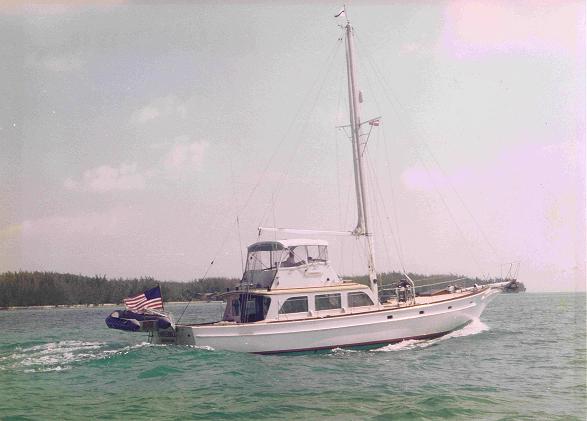

Thanks for bringing this subject thread back to my attention. As I noted on this Alden design, I was real tempted to buy a version of this vessel, Hawksbill

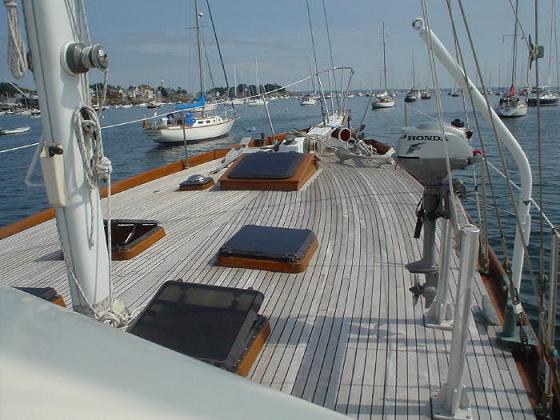

I think you can find some photos and a listing for her on the internet presently, but then this info may go away. So I thought I would post some photos that might remain with this forum. This does look comfy as a liveaboard.

[brian eiland]

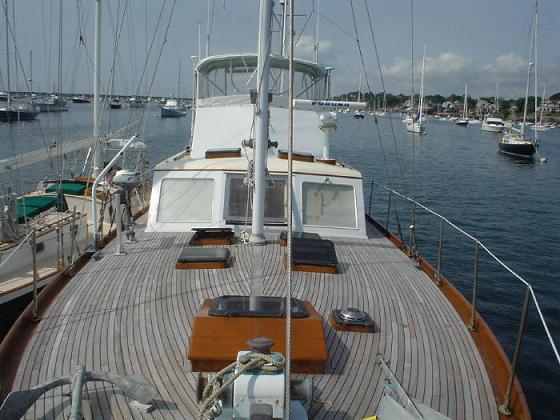

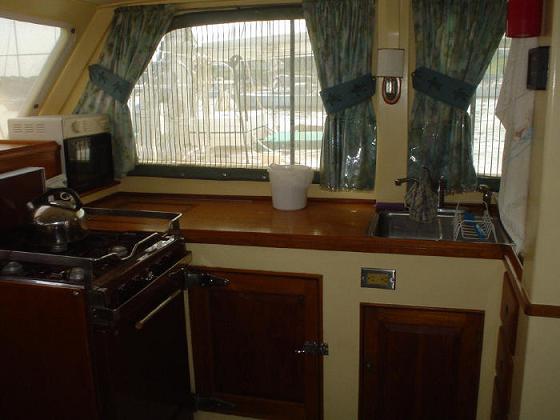

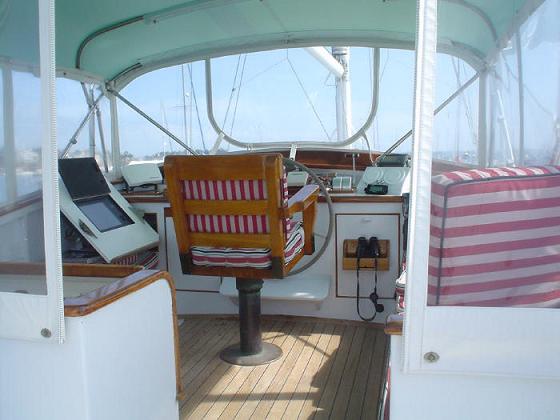

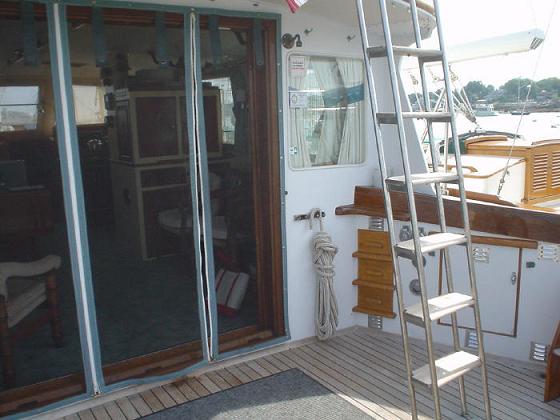

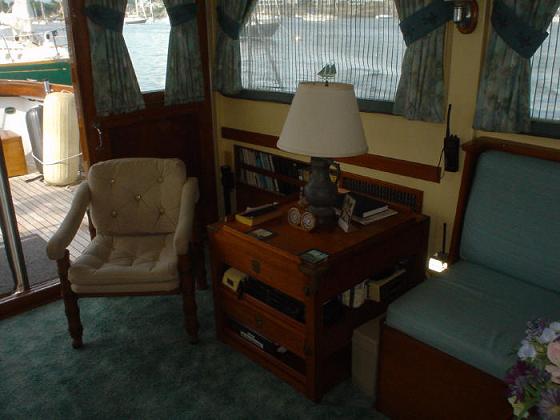

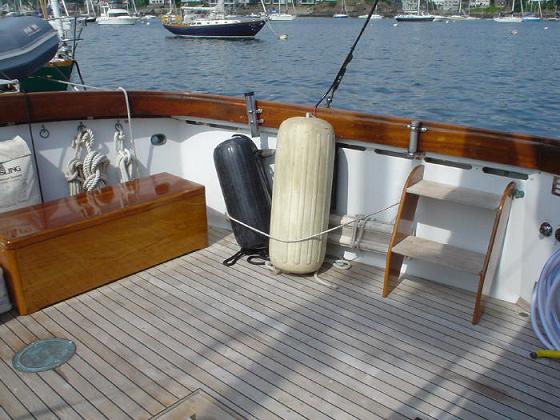

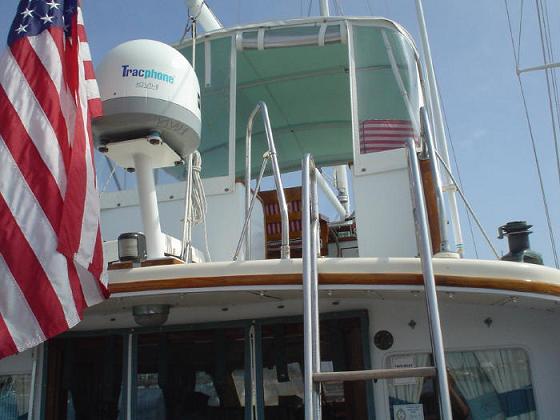

a few more shots

[brian eiland]

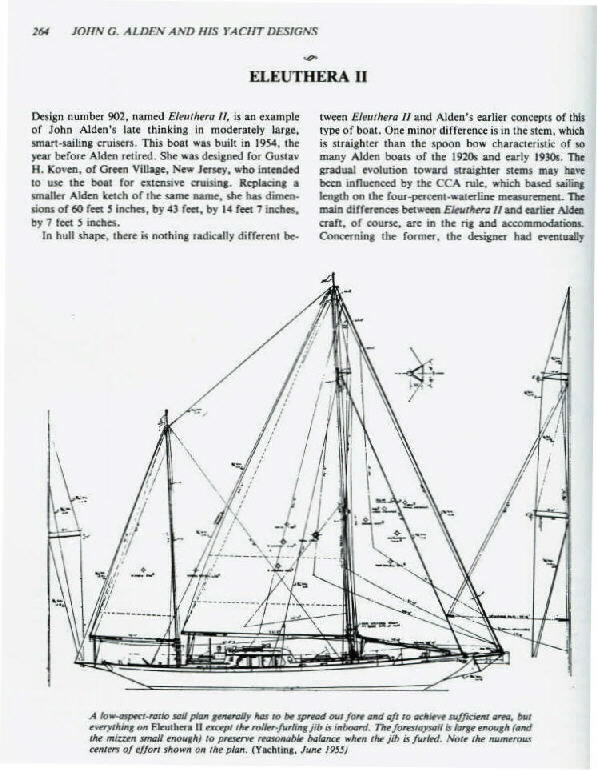

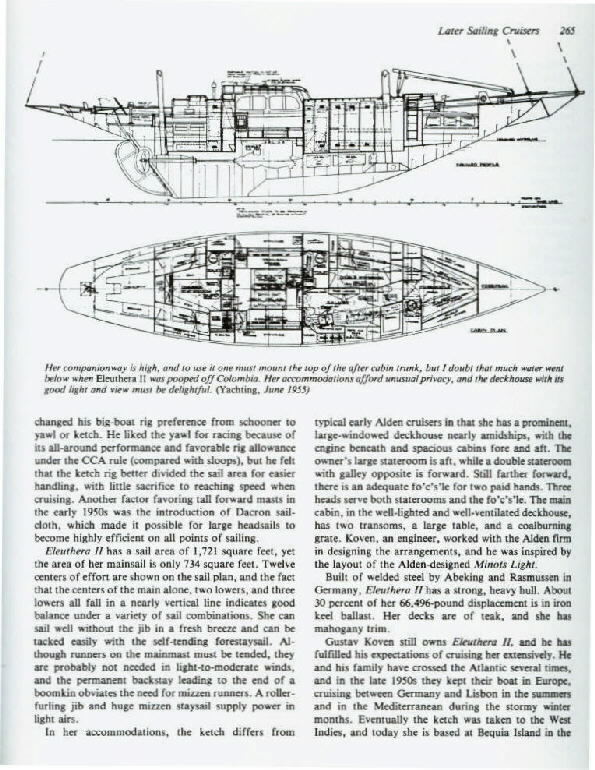

Not eactly a motorsailer, but a moderately large, smart-sailing cruising design from Alden, just before he retired.

[brian eiland]

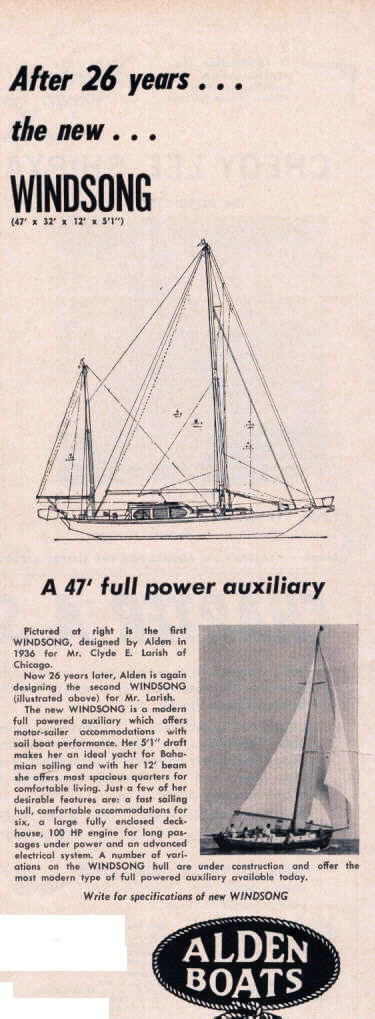

....referred to as a 'Full Powered Auxiliary, the beautiful 47' Windsong
..with a 100HP engine for long passages under power

[brian eiland]

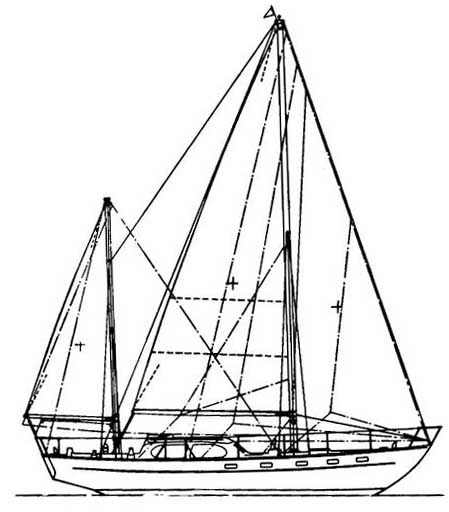

The Windsong design has to be the inspiration for the Pearson 44 Countess production vessels...another very pretty and practical design

http://www.geocities.com/countess_club

http://www.pearsoncurrent.com/Member...s/countess.htm

[brian eiland]

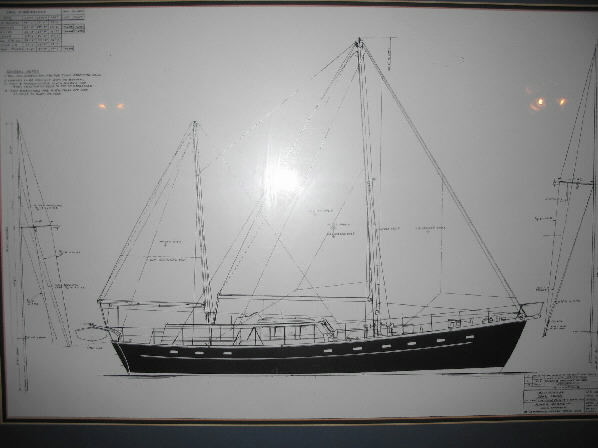

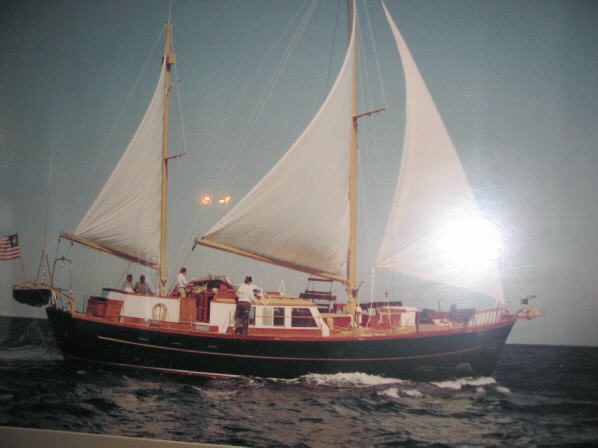

Here's another design I found hiding in my old files. It's an Alden (office) design that reminds me very much of the Rhodes' vessels I documented in posting #1.

This vessel was actually owned by a gentleman who started up a well know seafood restaurant in old town Alexandria here in Washington DC. He has since passed away. I actually took photos of the pictures hung on the walls of the resturant, and that explains the bright refection in these scans that developed from the flash of the camera and the glass covering of the photos.

I believe the name of the vessel was SunShine.

[kapth]

Originally Posted by Loren Schweizer

Here's a 63 CL that was called "Blackship". I have a 78-ft. version ( framed photo ) hanging on my wall which was called "Don Quixote".
Somewhere in my office are the sales brochures for the 53-63-78.

Hello
am locking for a cheoy lee53-63 so can yoy giv mi som information on this boat.
Is i sailing ok?

Best reg
Thomas
