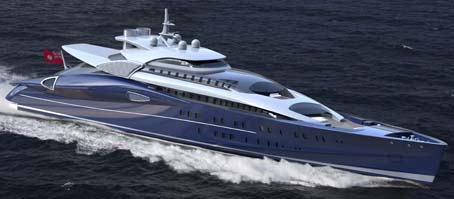

Blohm & Voss Unveils 110m Fast Yacht Concept

Speed, Size & Pleasure Are No 'Enigma'

Blohm & Voss is developing a series of pre-designed custom yachts that will lead to shorter
delivery times and reduced building cost. The first project out of the series is the radical new
Blohm & Voss 110-meter Fast Yacht Concept. It is a direct descendant of the famous 74m fast
yacht 'ECO', now named 'ENIGMA', which was designed at that time to be the fastest yacht of its size.

This new B+V 110, with its stretched profile sits in the water waiting to unleash the extremes of yacht design; on one hand speed and sportive appearance, on the other hand luxurious owner’s and guest’s quarters with well protected outdoor areas. The unique exterior styling completes an unrivaled yacht concept study.

With upwards of 110,00 horsepower on tap, it can reach speeds up to 40 knots with two extremely powerful MTU engines coupled to two steerable Wärtsilä 9000 water jets and two gas turbines also coupled to two further Wärtsilä 9000 water jet boosters. At the maximum speed of 40 knots B+V 110 MY/fast can roar non-stop between Monaco to Athens within only one single day (25 hours).

The internal layout of the B+V 110 MY/fast is based on an efficient usage of space. The bridge has been designed at the very top deck, level six. The Owner’s 280 sqm completes the private deck at level five, consisting of a large state room facing the bow which is illuminated with natural light through an amazing skylight. En suites, as well as an office with a reception and waiting area well be located close to the main staircase. A spacious outdoor area opens from the Owner’s state room, towards the bow, providing supreme privacy and offers protectionfrom the elements while sunbathing.

The entire Upper Deck, level four, offers common and entertaining areas for the Owner and his Guests with a spacious lounge having access to the forward deck where Jacuzzis have been placed on each side of the yacht. A separate dining room can be converted into a conference room and there are also to be found a library as well as a gym with access to the aft outdoor area.

Six comfortable Guest cabins accommodating 12 Guests are well located together one deck below on Main deck, level three. Easy access is provided for the Owner and Guests boarding the yacht via the side gangway leading to the main lobby next to the lift and the main staircase. On the same deck there are a cinema and a large outdoor area in the aft to enjoy more entertainment. The tender garages with side shell doors on level two can accommodate on one side a small light weight seaplane and on the other side a 7m (23 ft) tender as well as various water toys.

Specifications:

Length: 110.0m (360 ft)
Max Beam: 20.1m (66 ft)
Beam Waterline: 16.9m (55 ft)
Draft: 4.3m (14.1 ft)
Max. speed: + 40.0 kn
Cruising speed: 20.0 kn
Range: 970nm @ 40 kn
Range: 3,000nm @ 21 kn
Fuel: 510t
Fresh water: 70t
Propulsion (main): 2x 9100 kW MTU diesels coupled to steer able Wärtsilä 9000 water jet.
Propulsion (aux): 2x 32000 kW Gas Turbines coupled to Wärtsilä 9000 water jet.
Generator: 2 x 870 kW diesel
Maneuvering: 1x 500 kW bow thruster
Passengers: Owner: 2
Guests: 12
Crew: 27
