2009 52' Sabre "OSHER LINER TOO"

26North · 06-25-2012, 12:29 PM

All the aspects and details of this magnificent yacht are executed with boat building skills passed down by generations of Maine craftsmen and women. And by including in her design and systems the most modern equipment and technology, Sabre Yachts has created the ultimate cruising yacht. With the suggestions and opinions of many experienced yachtsmen, the Sabre Design Team found solutions and created features which greatly enhance the experience of cruising this beautiful yacht.

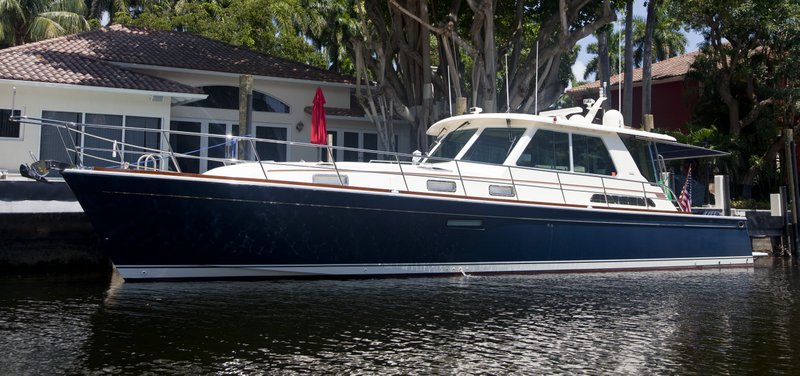

Her V-hull with propeller pockets is sea-worthy and dry. Standard Caterpillar C15 fully electronic Acert engines, each capable of delivering 865 horsepower, are linked to Twin Disc Quick Shift transmissions for smooth and powerful operation. The 52 Salon Express will cruise comfortably in the mid-twenty knot range. AC Electrical services aboard are provided by twin 9kw generators and her DC system is 24 volt. Molded steps from the aft cockpit provide easy access to her functional and well lit mechanical room.

Her interior accommodations are another world of comfort and elegance. Beautiful woodworking throughout the yacht, pleasing proportions and unusual fine points such as Shoji screens in the owner’s cabin doors make one feel inside a stylish home on the water.

Accommodations

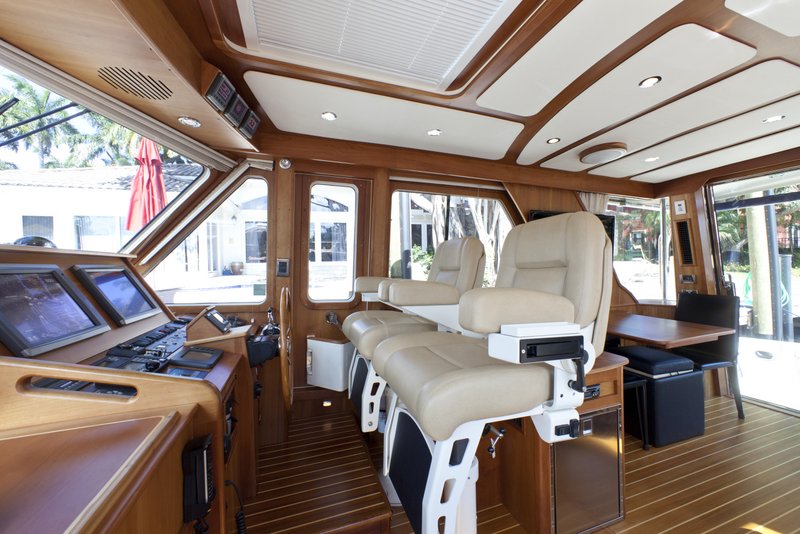

Helm Area
• Twin power Stidd helm seats on adjustable high/low pedestals with footrests
• Opening pantographing door to side deck from helm seat
• Opening stainless steel sliding door to aft cockpit with curved windows on corners for great visibility
• Navigation switch panel conveniently located at helm
• Flat chart area to port of instruments, great place for paper charts while cruising
• Custom wood trimmed stainless steel wheel with adjustable positions
• Recessed master AC/DC breaker panels with opening doors

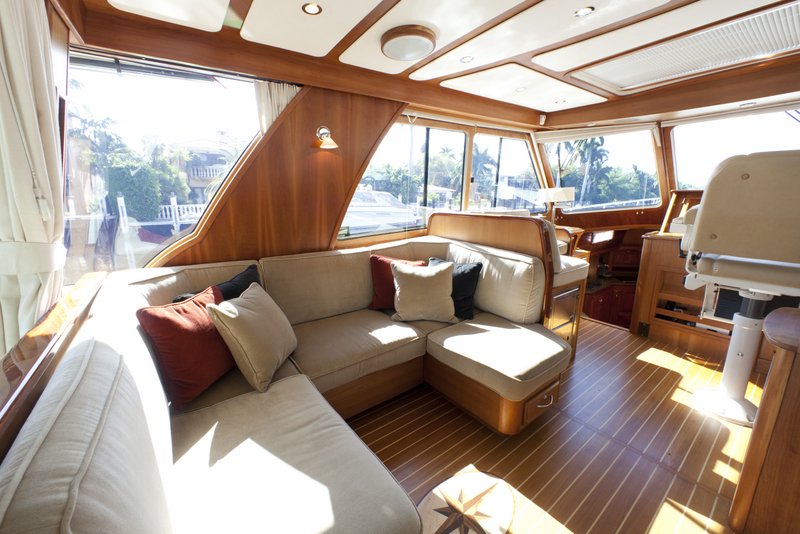

Main Salon
• Raised "Mates Lounge" seat to port with ice maker below
• Oversized U-shaped lounge with custom fabrics which converts to sleeping berth with storage drawers below.
• Expanding dining table
• Refrigerator, Icemaker, LCD TV, Blueray player and surround sound system
• Blinds and curtains on all windows for privacy and to help keep the salon cool
• Teak and holly soles
• Sound deadening headliner panels overhead
• Electrically operated sunroof for those sunny days alongside dock or underway

Guest Stateroom
• Queen island berth
• Storage drawers under berth
• Blanket storage below berth
• Enclosed upper shel ves to port and starboard of island berth with storage behind
• Large cedar lined hanging locker
• Bureau to starboard with enclosed locker above
• Built in LCD TV w/DVD player
• Portlight and hatch shades
• Teak and holly sole
• Soft headliner panels

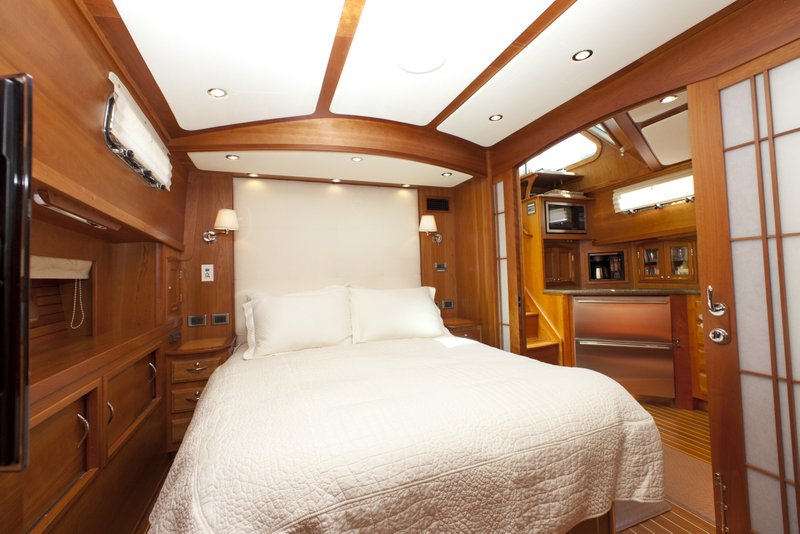

Master Stateroom
• Double pocket doors
• Queen island berth
• Storage below berth with hydraulic lift
• Spacious drawers and storage at base of berth
• Bureau/night stand with drawers to each side of bed
• Cedar lined hanging lockers with cedar shelf and closet post
• Built in LCD TV w/DVD player
• Shades for all ports and hatches
• Exclusive access to master head with sliding pocket door
• Teak and holly sole
• Soft headliner panels
Heads & Galley

Guest Head
• Kohler si nk with faucet
• Separate shower stall with circular door
• White ceramic tile floor throughout
• Hot and cold pressure water
• Gray water shower sump pump
• Storage lockers
• Quartz counter with bull nose
• Mirror on inside of passageway door
• Ventilation blower
• Tecma freshwater electric toilet, household sized
• Macerator pump
Master Private Head
• Oversized shower compartment
• Medicine cabinet above toilet
• Designer sink with faucet
• Ceramic tile floor throughout
• Separate shower stall
• Hot and cold pressure water
• Gray water shower sump pump
• Storage lockers
• Quartz counter w/bull nose
• White ceramic tile on head compartment floor
• Wood trimmed mirror over sink and mirror in top of passageway door
• Ventilation blower
• Tecma freshwater electric toilet, household sized
• Macerator pump
• Incremental waster tank level monitor
Galley
• Extra large galley with two oversized portlights
• Solid surface Quartz countertop
• Electric 3 burner stove top
• Microwave oven
• 24v galley exhaust fan
• Large storage drawer below oven
• Above and below counter storage
• Large Pantry cabinet
• Dedicated fresh water drinking faucet
• Additional storage beneath stairs
• Sub-Zero stainless steel refrigerator drawers (2)
• Sub-Zero stainless steel freezer drawers (2)
• Fischer & Paykel DishDrawer dishwasher w/cherry front
• Stainless steel double bowl sink
• Built in Coffee maker
• Washer/dryer unit above freezer in hallway forward of pantry
Navigational Electr onics
• (2) Garmin 7215 multi-functional displays with Garmin Touchscreen technology
• Garmin GMR1204xHD radar
• Garmin GXM51 weather antenna with XM audio into Russound
• (5) Garmin GMI10s
• Garmin RF wireless remote control
• Airmar PB200 weather station
• Garmin AIS600
• ICOM 604 VHF radio with flush mount kit
• Icom M604 in master stateroom with its own dedicated 8' antenna
• Simrad AP28 autopilot with wireless remote
• Airmar B260 main transducer
• NMEA2000 depth/temp transducer in bow
• Intellian i4 satellite antennas for separate multi zone Dishnetwork HDTV system
• Intellian FB250 broad band antenna for high speed Internet and phone tied to a wireless router
• Direct TV satellite receivers (2)
• ACR RCL100 searchlight with remote control at helm
Garmin GXM51 weather antenna with XM audio into Russound
• Engineroom Camera
• VEI Apollo low light/infrared night vision camera with remote control and wired to 7215 displays
• Shakespeare cruise net system for AT&T 3G service with two 4' cell antennas. Tied to a wireless router
• Battery back ups for master and saloon TV receivers
• Digital antenna cell phone booster with 2' antenna
• Maretron engine modules to display engine data on 7215 displays
• Maretron NMEA2000 gateway to view and adjust sensors on the NMEA2000 network with a laptop.
• Garmin tank modules for fresh and black water tanks to be viewed on NMEA2000 network
• NMEA2000 rudder indicator on GMI 10 display

Hull, Deck & Hardtop
Hull
• Modified "V" planing hull design with shallow prop pockets
• 23 degree deadrise amidships and 15 degree at transom
• Reverse sloped transom
• Flag Blue gel coat w/ vinylester back-up resin and White double boot strip
• Teak decking inlay on swim platform w/ under mounted telescoping ladder
• Freedom Lift dingy davit system
• PVC rub rail with stainless steel cap

Hardtop
• Hardtop with Webasto electric sliding sunroof with shade
• Custom Sabre composite radar mast

Electrical Systems
• 240V AC Electrical System
• 240V AC 50 amp AC shore power system
• 75ft. Glendenning cord reel
• (2) 9kW Onan Generator w/sound enclosure
• Reverse cycle air conditioning (salon, galley, master and guest staterooms)
• 120V Pure-Sine inverter
• 12/24V DC Electrical Distribution System
• Dedicated engine starting battery bank
• 24V 8D AGM deep cycle ship's service batteries
• Kahlenberg air horn
• Navigation lights
• Wiper/washer system
• Lighting: LED overhead lighting with dimmers, reading lights in both staterooms, Cantalupi halogen lights in the overhead, halogen bar lighting, e ngine room lighting, cockpit courtesy lights w/remote switch at transom door

Mechanical Systems

Propulsion
• Power: Twin diesel CAT C15 865hp
• Caterpillar Extended Platinum Warranty
• Fresh water cooled
• 2 3/4" Stainless Steel Shafts
• PSS dripless shaft seals
• Oil changing systems - engines and gen set
• Engine room ventilation system 24V
Steering System
• Power assisted hydraulic steering
• Twin bronze rudder
• Twin trim tabs

Additional Equipment and Customization
• Air conditioning with reverse cycle heat (4-zones)
• SidePower SP155 bow thruster
• SidePower SP155 IP stern thruster
• 4000W inverter with control panel at helm
• Teak Decking in aft cockpit soles and steps
• Teak Decking on swim platform
• ISO Boost voltage isolation transformer
• Russound multi-zone (5) audio /entertainment system with smart keypad displays
• Beam central vac system with (2) outlets and 32' expandable hose
• Underwater lighting package (3) Xenon
• Freedom Lift dinghy lift system
• Kahlenberg triple horn with electric horn control at helm
• Lewmar digital chain counter at helm
• Spare Shaft in engine room
• Set of spare Propellers
• Village Marine STW600 watermaker
• Custom raised teak and holly step box in front of helm chairs with drawer for storage.
• Custom pocket compartment in helm for remote control storage.
• Custom computer table for port side settee
• Custom sound system with additional high output speakers in saloon with separate amplifier
• Electric Sure Shade system over aft cockpit
• Upgraded TVs Throughout
• Custom line holders in lazerette
• Groco sweet tank pump to keep the black water Ase ptic
• Custom headboard in master stateroom
• Espresso machine
• Additional shore power connection with 25' cord

Remarks
The owner has always properly maintained and continuously upgraded this 52 Sabre Express, resulting in a yacht better equipped than the latest ones. She is truly turnkey and will be the next Sabre to sell.
