YachtForums Exclusive: Underwater Pictures of Sunk Bertram 630



LinkBack Thread Tools Rate Thread Display Modes
Old 12-17-2009, 09:59 AM   #1 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
YachtForums Exclusive: Underwater Pictures of Sunk Bertram 630

YachtForums Exclusive!
Pictures of the Sunk Bertram 630: "Absolutely"


The following images have been supplied exclusively to YachtForums by
representatives of the plaintiff in the sinking of the Bertram 630 "Absolutely". Much speculation
has taken place as to HOW and WHY this boat sunk. Bertram claims the boat hit a buoy.

The images appear to tell a different story.


To follow an extensive discussion that has taken place since this story broke, visit this link...

Bottom Seeking Bertram

The Video went live on Monday, January 18th. You will need to be a YachtForums member to see the video...

Video Discussion


The images have been extracted from a video taken on November 29th, 2009 off the coast of South Carolina. These shots are in sequence as divers made their way down and around the vessel. Captions are provided for narration to better help our readers understand exactly what section of the boat they are viewing.

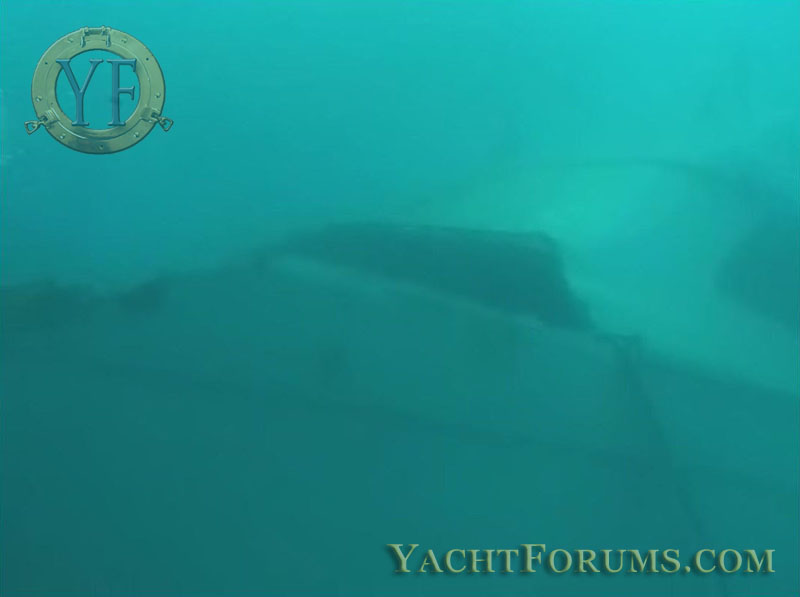

The first image is taken from down low on the floor bottom, looking up at the forward port quarter of the vessel. The superstructure of the boat is seen in the upper right corner of the image. For reference, we have inset an image of the Bertram 630 in question...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:04 AM   #2 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
Taken from the same vantage point on the sea bottom, the camera panned slightly to the left, toward the bow... or what had previously been the bow! For reference, the salon/galley window can be seen silhouetting the image on the far right side.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:06 AM   #3 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
As the divers swam up from the sea floor, they hovered over the top deck of the Bertram, showing where the entire front deck broke off at the upsweep of the superstructure. You can see the port side, deckhouse window in the far right side of this picture.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:08 AM   #4 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
From the same position as the last shot, the camera panned slightly left to show the remainder of the break section from beam to beam...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:09 AM   #5 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

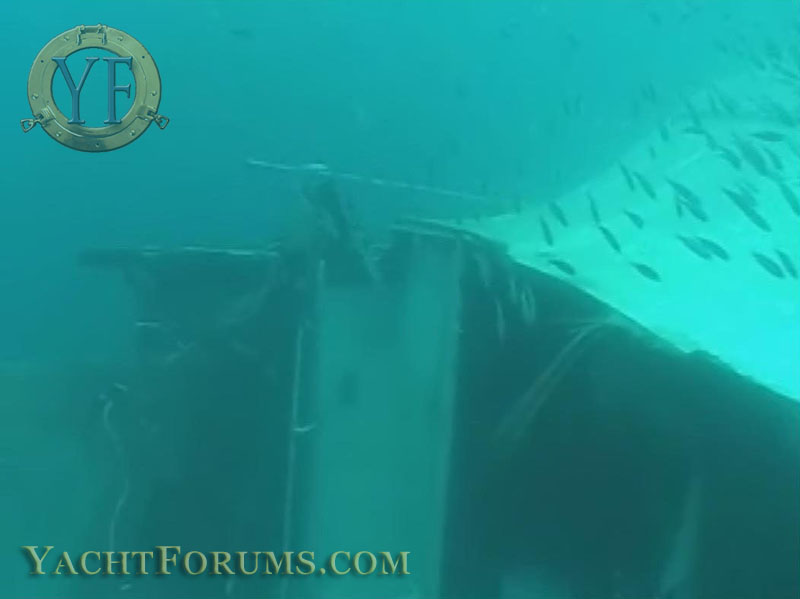

Swimming forward, to the bow, this is what remains. The entire forward deck, including the hull halfway down to the boot stripe is missing...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:11 AM   #6 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

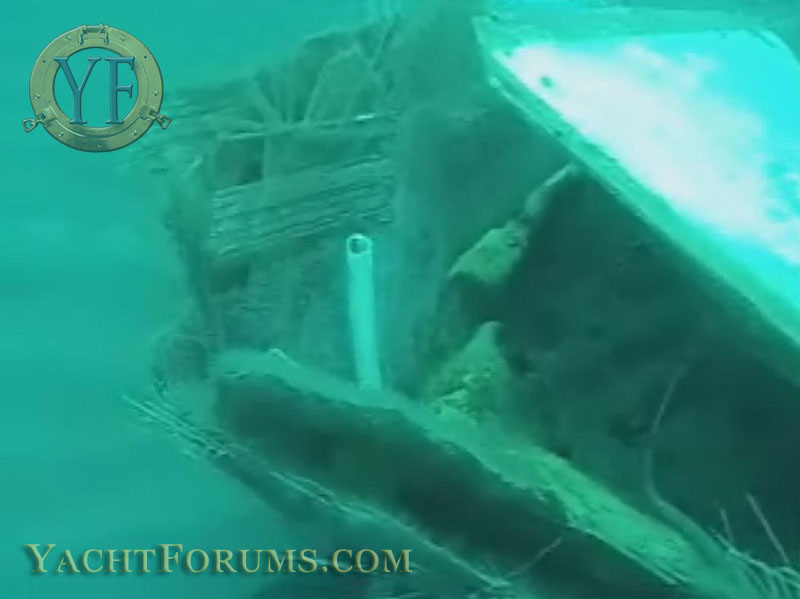

Zooming in on this section, this was the anchor locker. The PVC pipe sticking up was part of the chain guide...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:12 AM   #7 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

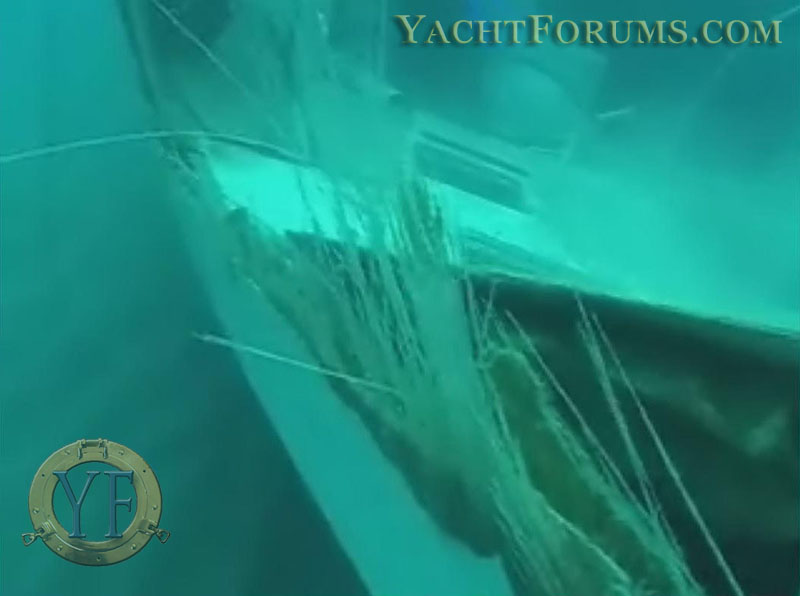

Positioned directly in front of the bow, looking aft along the starboard side of the vessel, this is what remains of the hull, again sheered about halfway between the rubrail and the boot stripe, all the way back to the beginning of the superstructure.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:19 AM   #8 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

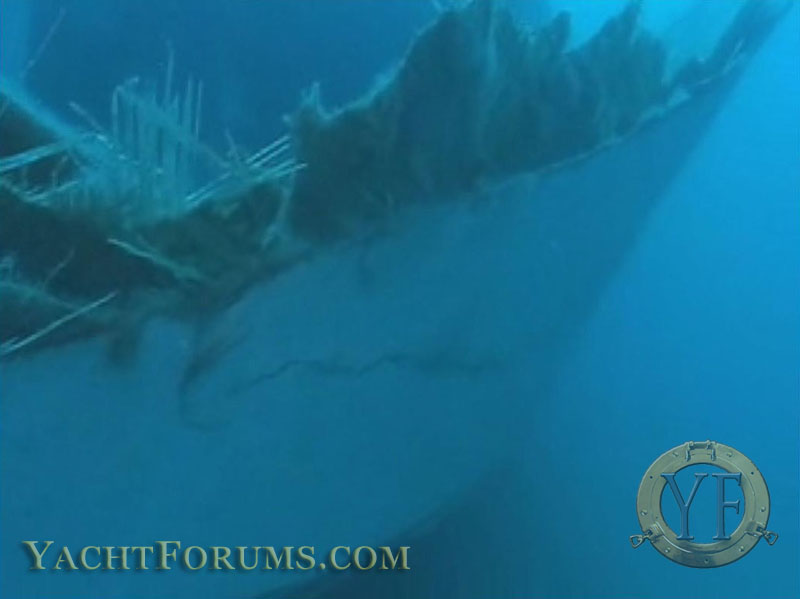

Dropping down from the position above, this is the port bow section. Study this picture closely. The cracks in the upper right corner of this image are located about halfway between the boot stripe and rubrail. They are a few feet long, but they are not completed separated. These are likely to be stress fractures from the hull folding inward if the deck came off when plunging into a wave.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:23 AM   #9 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
This next shot is a close up of the beak of the bow and what appears to be a large impact area and stress fracture. If the boat hit a buoy, this was likely the point of impact, however it is extremely doubtful the buoy in question (shown in the image below) would have been capable of inflicting this kind of damage.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:29 AM   #10 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
This is the alleged buoy that the Bertram "Absolutely" hit. It is located near the 'Bill Perry Reef' at approx. 100deg. & 25NM off Murrells Inlet - slightly south of Myrtle Beach. Depth is approx. 65 to 80 feet in this area. It weighs approx. 200 lbs. with the majority of this weight underwater. It stands about 5-6 feet tall, made of plastic and the radar reflector is metal.
Attached Images
YachtForums is online now
Old 12-17-2009, 10:36 AM   #11 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
Here's another angle on the bow, this time the camera is on the starboard side. Notice how the sheering is similar to the port side of the hull, indicating the port side may not have been subject to an impact by a hard object, but rather when the deck came off, it sheered in this pattern...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:37 AM   #12 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

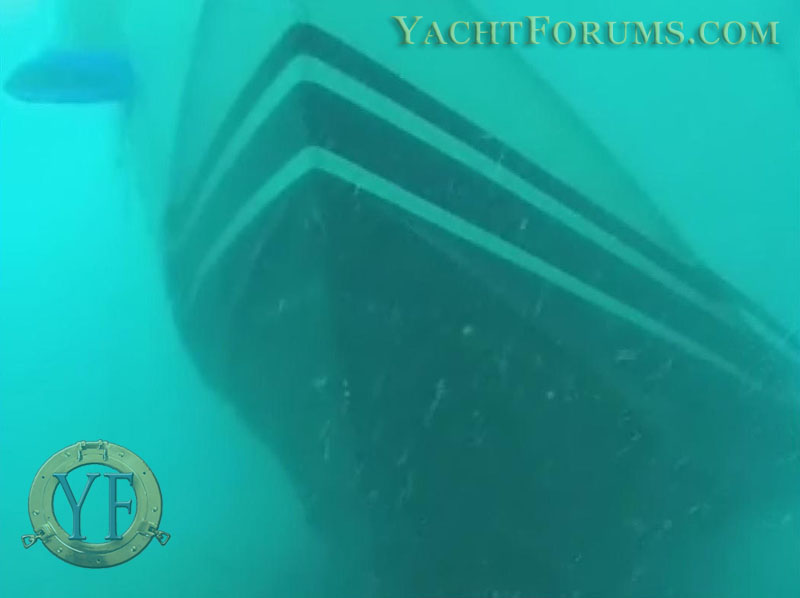

Looking a little lower, beneath the boot stripe at the bow, there is no evidence of impact anywhere, either port of starboard...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:39 AM   #13 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
Moving aft, along the starboard side, about halfway between the bow and midship, you can the hull bottom has remained intact, but most of the hull above the boot stripe is missing...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:41 AM   #14 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132
Returning to the top of the hull side, this image is the port side of the hull, looking aft toward the stern. This is the location of the stress fracture mentioned earlier. The following sequence of shots will zoom in on the details...
Attached Images
YachtForums is online now
Old 12-17-2009, 10:43 AM   #15 (permalink)
Publisher/Admin

YachtForums's Avatar

Join Date: Dec 2002
Location: South Florida
Posts: 18,132

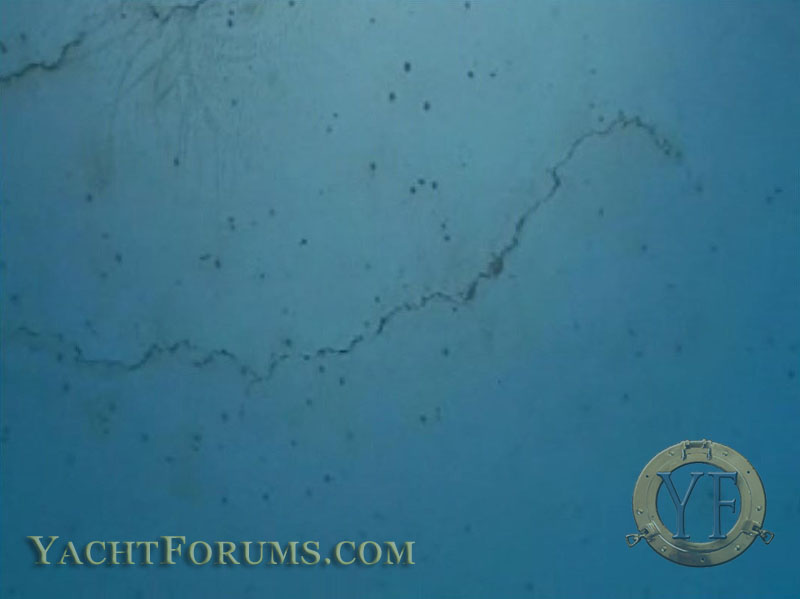

This close-up shows, what appears to be, scratches possibly created by an impact with something, however the hull was not breached here. It has lost structural integrity, but the skin is still intact...
Attached Images
YachtForums is online now
