40-meter Observatory TriDeck
|
|
40-meter Observatory Explorer
|
|

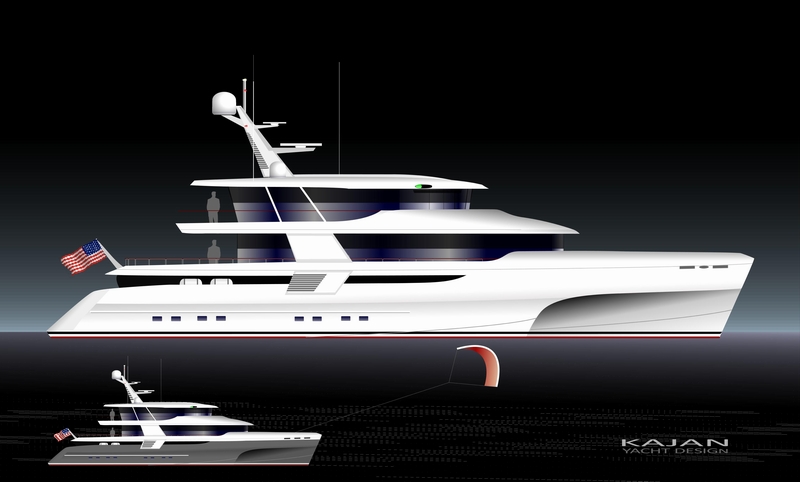

30-meter Tri-Deck, Tri-Hull w/ Kite One YF member wanted a 30m tri-hull with some design elements from the 80m Explorer concept and on the subject of how many levels you could fit on a 70-80ft. tri-hull design without ending up with a wedding cake, these 77ft. concepts where maid to illustrate the visual appearance of an extra level and overall appearance. Kite powered as well.
|
|

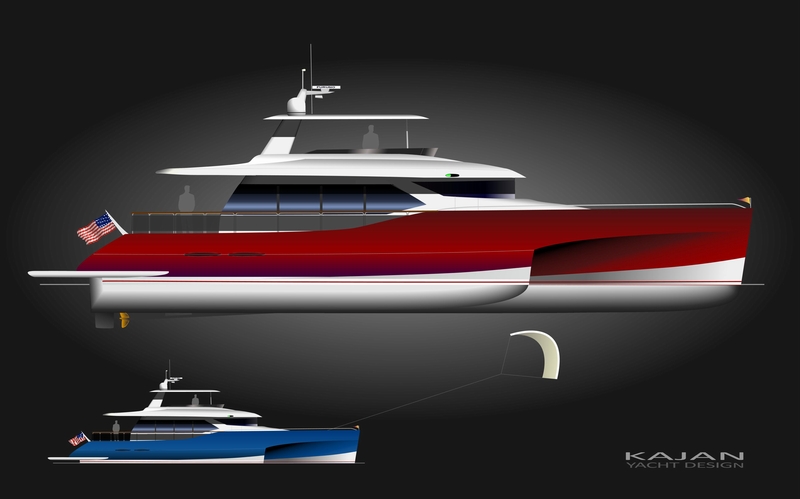

27-meter Tri-Hull w/ Kite Here the 30-meter Tri-Deck concept is down sized even more, in this case to 27-meters with one deck removed. It has a kite-powered alternative illustrated.
|
|
27-meter Navy Flybridge Tri-Hull Having a fascination for utility boats I decided to offer the 90ft. concept as a tri-hull and in a “down to business” clothing; one for the Navy and one for the Coast Guard (below). When comfortable guest accommodations are not a must but speed at a lesser cost is, tri-hulls might be a way to go. Preferable powered by triple IPS1200’s.
|
|

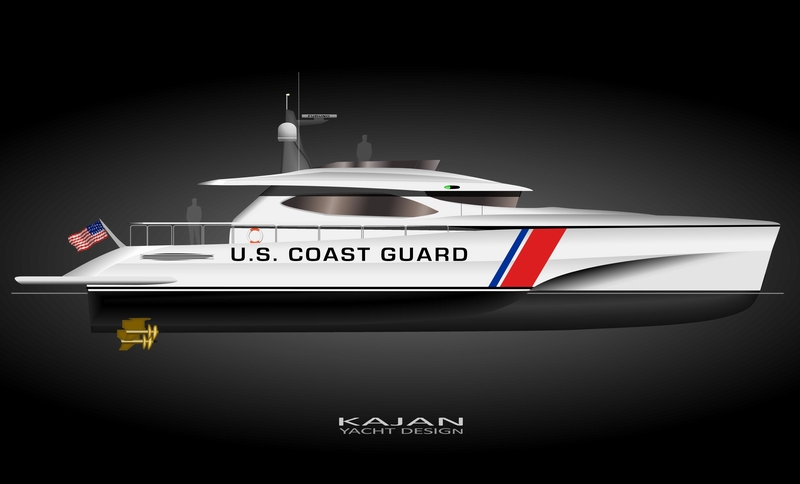

27-meter Coast Guard Flybridge Tri-Hull
|
|
27-meter Production Flybridge 90ft. Fly bridge yachts are almost a dime a dozen so of course I wanted to add my version. Again, large windows are used to enhance the presence of the sea. I think a quadruple setup of Volvo IPS900’s would be suitable.
|
|
27-meter Displacement Explorer Smaller Explorer yachts tend to look rather boxy and I’m guessing the “form-is-to-follow-function” factor is the reason for that. On this 90ft. pocket sized Explorer I wanted some sport yacht influences with rather large windows. I was aiming for a SUV rather than a pickup truck. So, to put a new twist on old trawlers, I put a Nordhavn in a time machine and hit the fast-forward button.
|
|
27-meter Canoe Stern Variants I find the canoe stern appealing from a design point of view and decided to offer the previous 90ft. fly bridge concept with a canoe stern. I was aiming for a more modern look then you usually find on canoe stern crafts by keeping most of the design elements from the 90ft. FB version but with some minor changes to the sheer line.
|
|
22-meter Raise Pilothouse - Modern & Woody Here the 90ft. Canoe stern concept is down scaled to 72ft. and with a raised pilot house. On the bottom concept I wanted to go with some classical lines so I went for a negative stern and a cloth Bimini top.
|
|

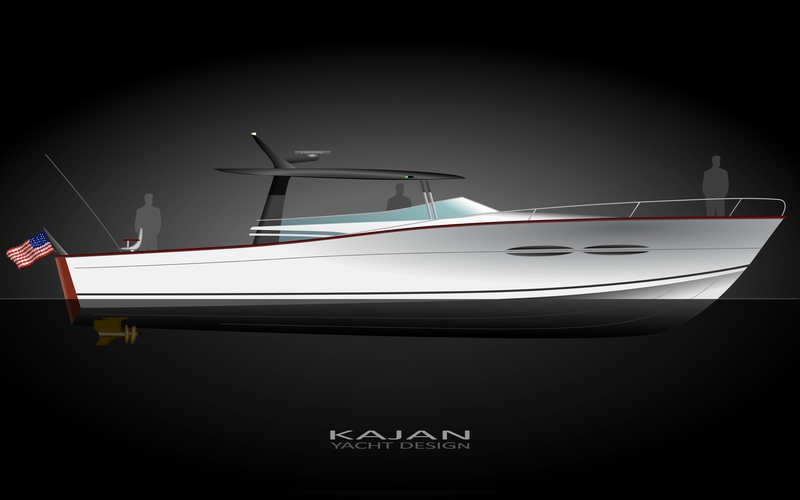

16-meter Neo Sportfish This 50ft. concept started as a request from one of the YF members asking for a large open weekender with a classic sports fisher hull with a modern cockpit, large social areas and preferable powered by a couple of Volvo IPS900’s.
|
|

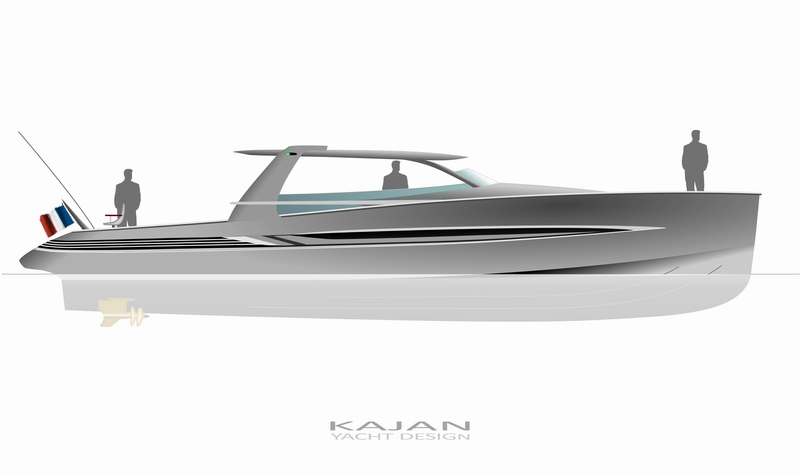

16-meter Open Hardtop
|
|

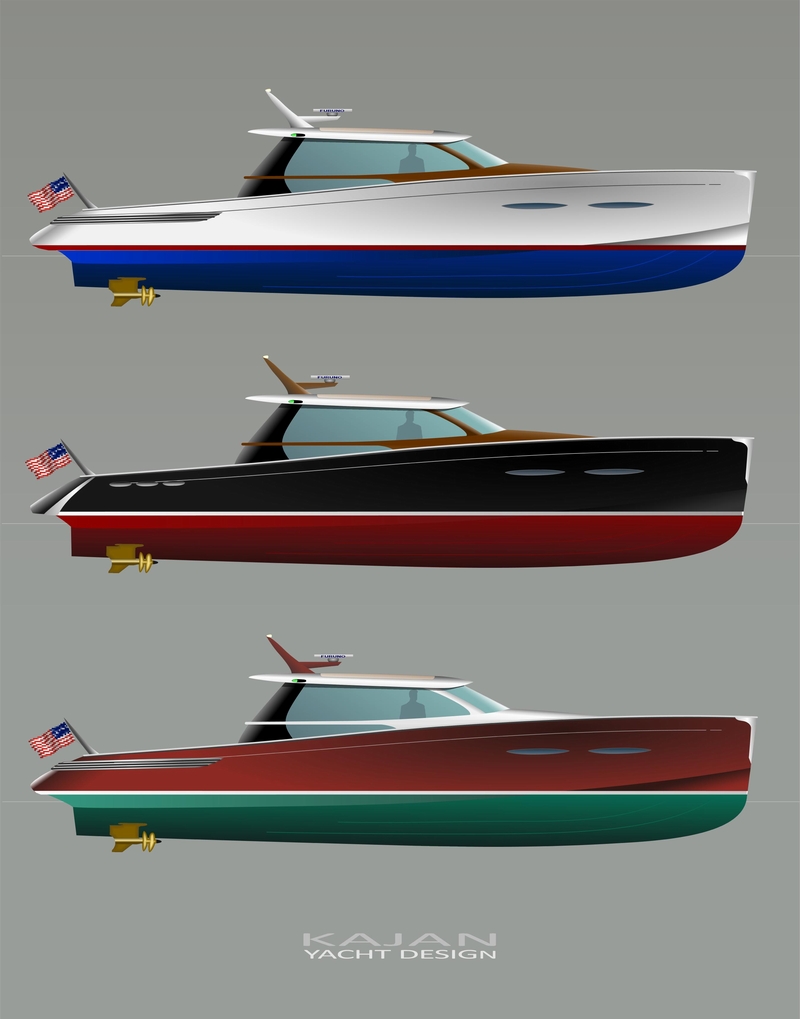

16-meter Variants The following concepts are all based on the original preferences of a large open weekender with a classic sports fisher hull, but with some additional features such as a straight bow, air inlets and different portholes. I opted for some classical paint schemes on the Coupé version to add some vintage feel.
|
|

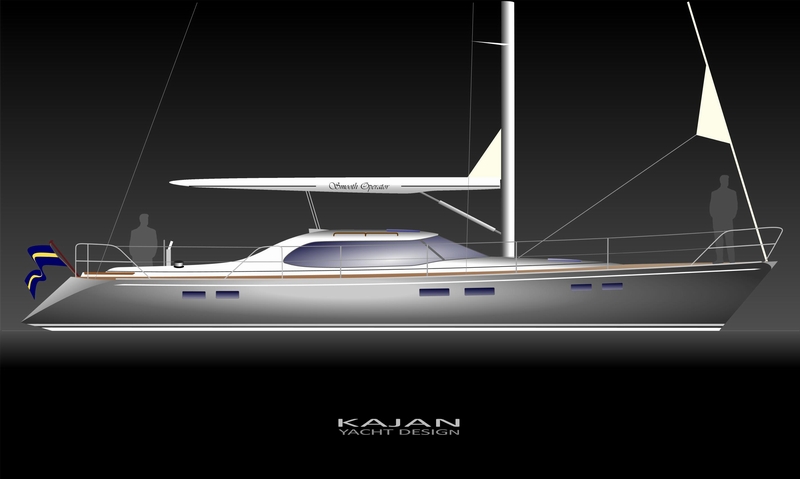

15-meter Day Sloop After I had visited a boat show in Stockholm, Sweden, I discovered that most Swedish built sailboats with a doghouse had a certain design with rather straight and edgy lines so I decided to contribute with some curved lines. I also noticed that you still couldn’t see the water while seated in the saloon so on this concept the seating area below is raised, taking care of that problem.
|
|
15-meter Day Sloop with Deck Plans
|
 |
|
 |
 |
||
 |
 |
 |
 |
||
 |
||
 |
 |
 |
 |
||
|
|
||
|
|
 |
|
|
|
||
|
|
||
|
|
 |
|
|
|
||
|
|
||
|
|
 |
|
|
|
||
