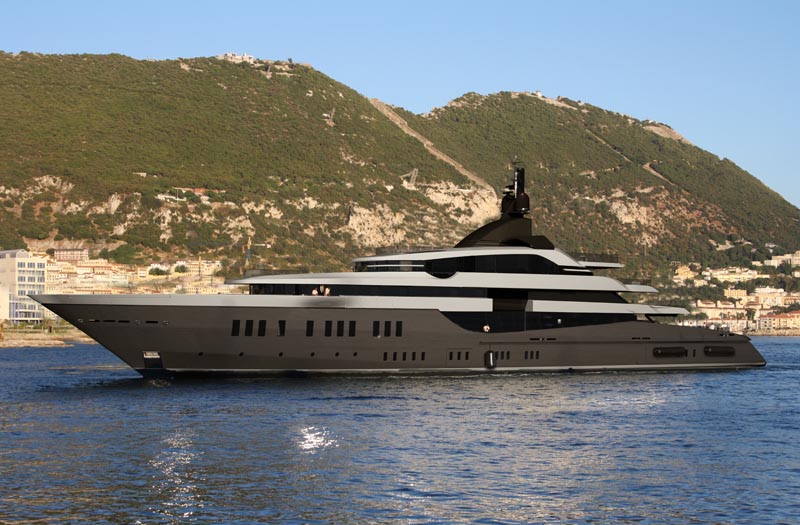

The PA168 is a new 86m superyacht concept based on the reputable and highly regarded
Oceanco platform and designed by the Milan-based Hot Lab studio. The contemporary exterior lines
with a functional yet innovative interior layout are amongst the obvious design merits of the concept.

Despite the yacht’s generous dimensions, her lines have been designed to convey a visual sense of lightness. Fundamental in this regard is the layout of the various decks, which in profile provide abundant open spaces aft that rapidly converge towards the antenna mast in the centre. In front of this point, the decks are developed more horizontally with a subtle yet dynamic downward curve to the open foredeck. This spacious area, which functions as an extendible platform for larger helicopters, emphasises and balances the graceful lines of the superstructure.

The overall sense of lightness is also highlighted by the way the individual deck levels are clearly defined by the darkened glazing that serves to lengthen rather than heighten the profile. Companionways, windows and technical areas have been developed to accentuate this effect. The bulwarks amidships and aft are delicately arched to counterbalance the linear volumes of the superstructure and forward section. A beach area has been developed around a swimming pool on the main deck with a cascade waterfall that spills over the end wall. The bulkhead that constitues this wall is covered with teak panelling that flows into symmetrical staircases leading down to the swim platform. This lower deck is surmounted by an unusual overhead ‘spoiler’, which provides partial shade but still allows abundant light to filter through.

The forward section of the yacht presents a classic bow profile with a flush deck for the helipad, which can be extended with side ‘leaves’ to meet new regulations relating to touch-and-go operations. This forward deck is on a level with the wheelhouse, which is provided with wing stations contained in blisters in the bulwarks for optimum visibility fore and aft during maneouvres. A defining architectural feature amidships is the large window on either side that extends the full height of the main and upper decks and abruptly intersects the bulwark coaming.

The upper deck and owner’s deck are linked externally by bold arches that add an imposing graphic effect, while also tricking the eye into believing that two deck levels are in fact one and providing the 200sqm owner’s apartment with ample natural light. A forward terrace leading off the owner’s deck can serve as an open-air gym. The area forward of the antenna mast houses another area reserved exclusively for the owner’s use. Painted black to minimise its visual impact, the accompanying 320sqm of private sundeck features a Jacuzzi, sun loungers and two large skylights in the deckhead that illuminate the owner’s accommodation below.

The yacht will be powered with a pair of MTU 20V 4000 main engines. She is expected to achieve a top speed of 20 knots with a range of 5500 nm at a cruising speed of 15 knots.
